About the product

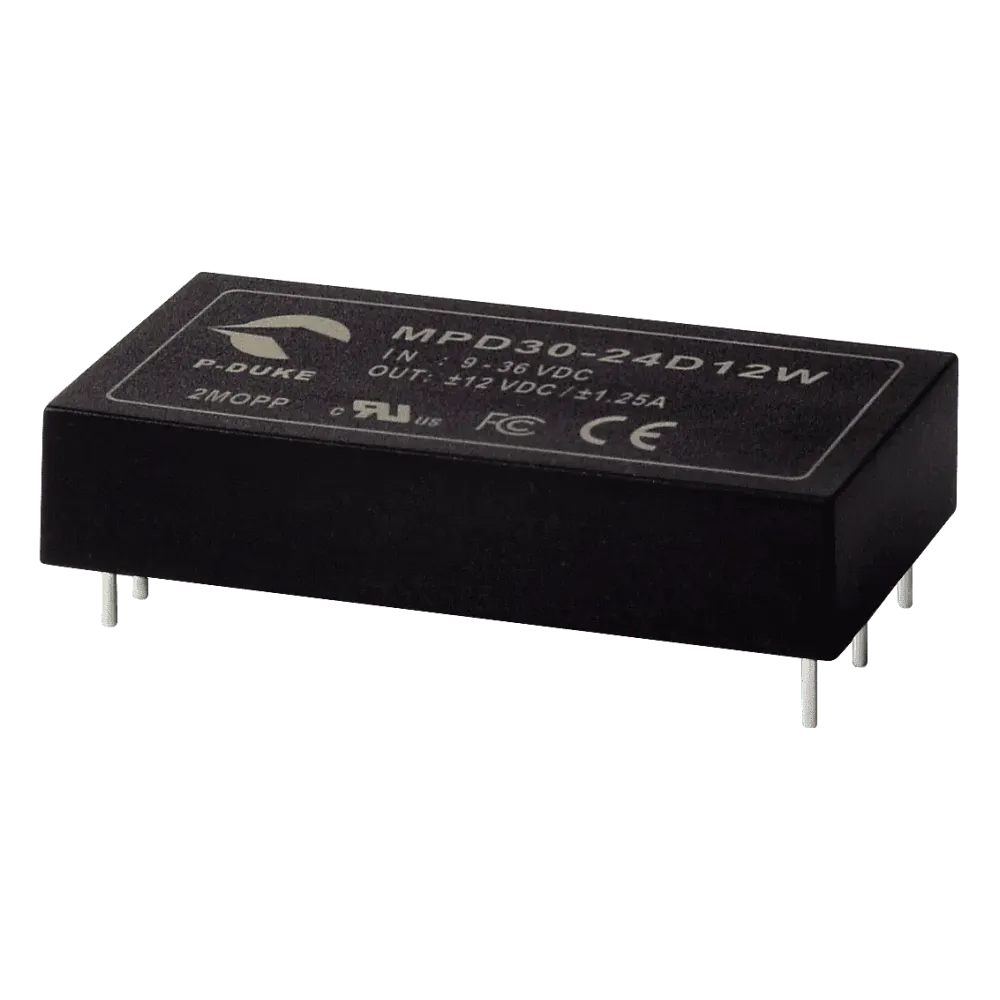

MPD30 is a 30W DC-DC converter with 2xMOPP medical approval for patient contact and an insulation of 5000Vac up to 5000m operating altitude.
Technical data
- Medical approvals according to IEC60601-1
- 30Watt output power
- 2x1 Housing
- 4:1 & 2:1 input voltage range
- 2x MOPP, 8mm air gap & creepage distance
- 5000Vac insulation voltage
- Operating altitude: 5000m above sea level
- Warranty: 5 years
- Manufacturer: P-Duke
Product specifications
| Output voltage (VDC) | 15 V |
| I/O isolation | 5000 VAC |
| Additional functions | Remote ON/OFF |
| Manufacturer | P-Duke |
| Height | 10.2 mm |
| Nominal input voltage (VDC) | 24-48 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Length | 50.8 mm |
| Width | 25.4 mm |
| Application | ITE/AV, Medical |
| Power | 30 W |
| Output current | 2000 mA |
| Design | 2×1 inch |
