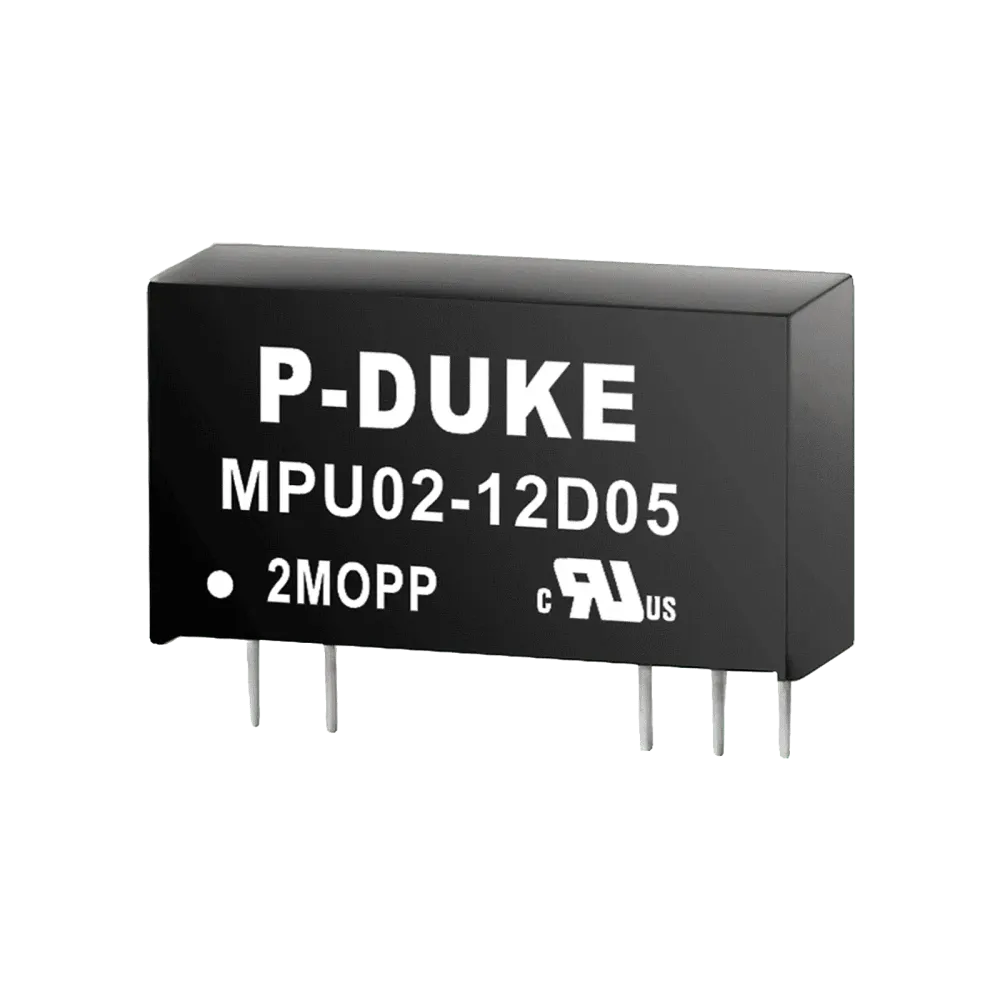

About the product
- 2Watt output power
- 8mm clearances & creepage distances
- 5000Vac IN/OUT Isolation
- Less than 2μA leakage current
- No minimum load required
- Input voltage range: 4.5..7, 9.6..14.4, 12..18, 19.2..28.8Vdc
- Output voltage versions: 3.3, 5, 12, 15, ±5, ±12, ±15Vdc
- Short-circuit output protection
- Operating altitude: 5000m above sea level
- IEC60601-1, IEC62368-1 approved
- Warranty: 5 years
- Manufacturer: P-Duke
Product specifications
| Output voltage (VDC) | 12 V |
| I/O isolation | 5000 VAC |
| Height | 12.5 mm |
| Width | 9.9 mm |
| Length | 19.6 mm |
| Manufacturer | P-Duke |
| Nominal input voltage (VDC) | 12 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Output current | 167 mA |
| Power | 2 W |
| Application | ITE/AV, Medical |
| Design | SIP9 |
