About the product

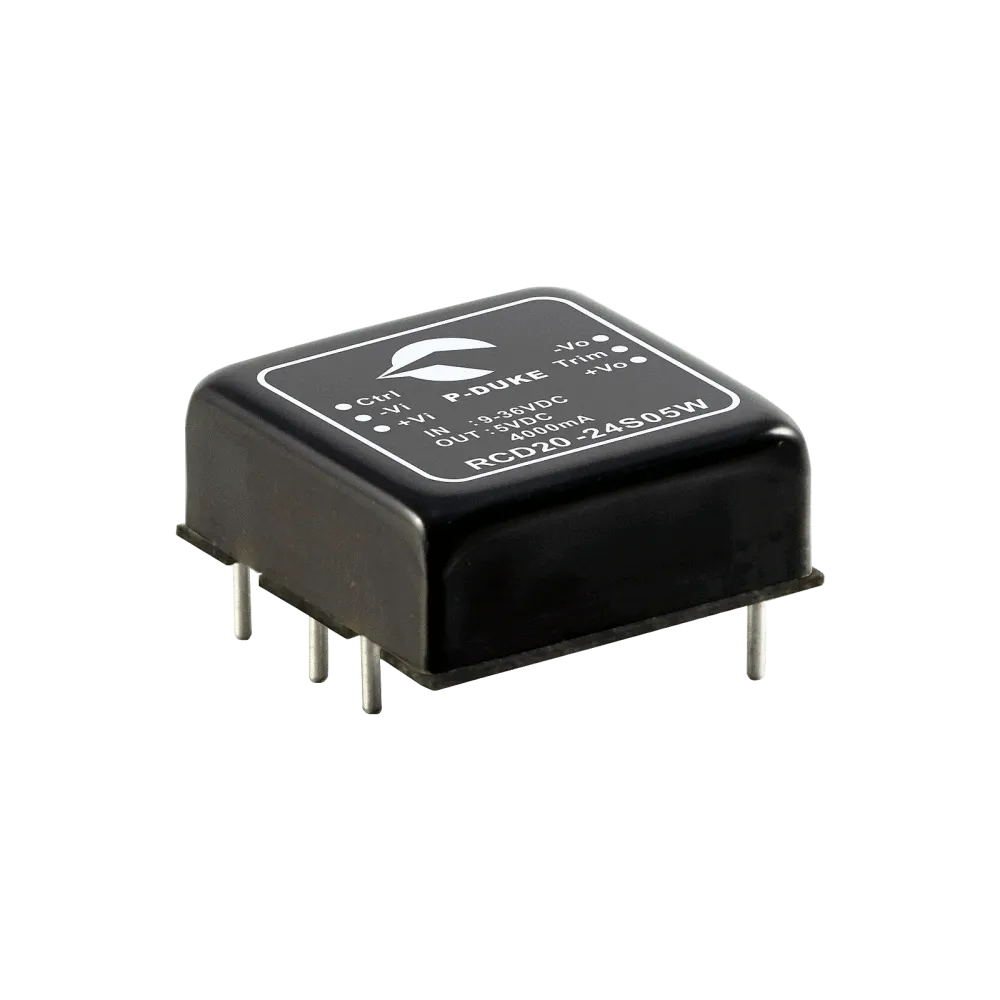

20W DC/DC converter, input 9..36V, output 5V/4A
Technical data
- 20Watt regulated
- 4:1 Wide entrance area
- Efficiency 91%
- Standard 1.00'' x 1.00'' x 0.39'' Size
- IN/OUT insulation 3000Vdc
- Input voltage ranges: 9.36Vdc, 18.75Vdc, 36.160Vdc
- Remote ON/OFF
- Protective circuit: short circuit, overcurrent, overvoltage, overtemperature and undervoltage
- Temperature range: -55°C..+100°C (M3 version)
- Built-in EMI CLASS A filter
- 3-year guarantee
- Manufacturer P-DUKE
Product specifications
| Power | 20 W |
| Design | 1×1 inch |
| Application | Railroad, ITE/AV |
| Additional functions | Remote ON/OFF |
| Height | 9.9 mm |
| Output current | 4000 mA |
| Manufacturer | P-Duke |
| Nominal input voltage (VDC) | 12-24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Length | 25.4 mm |
| Width | 25.4 mm |
| Output voltage (VDC) | 5 V |
| I/O isolation | 2250 VDC |
Data sheets
