About the product

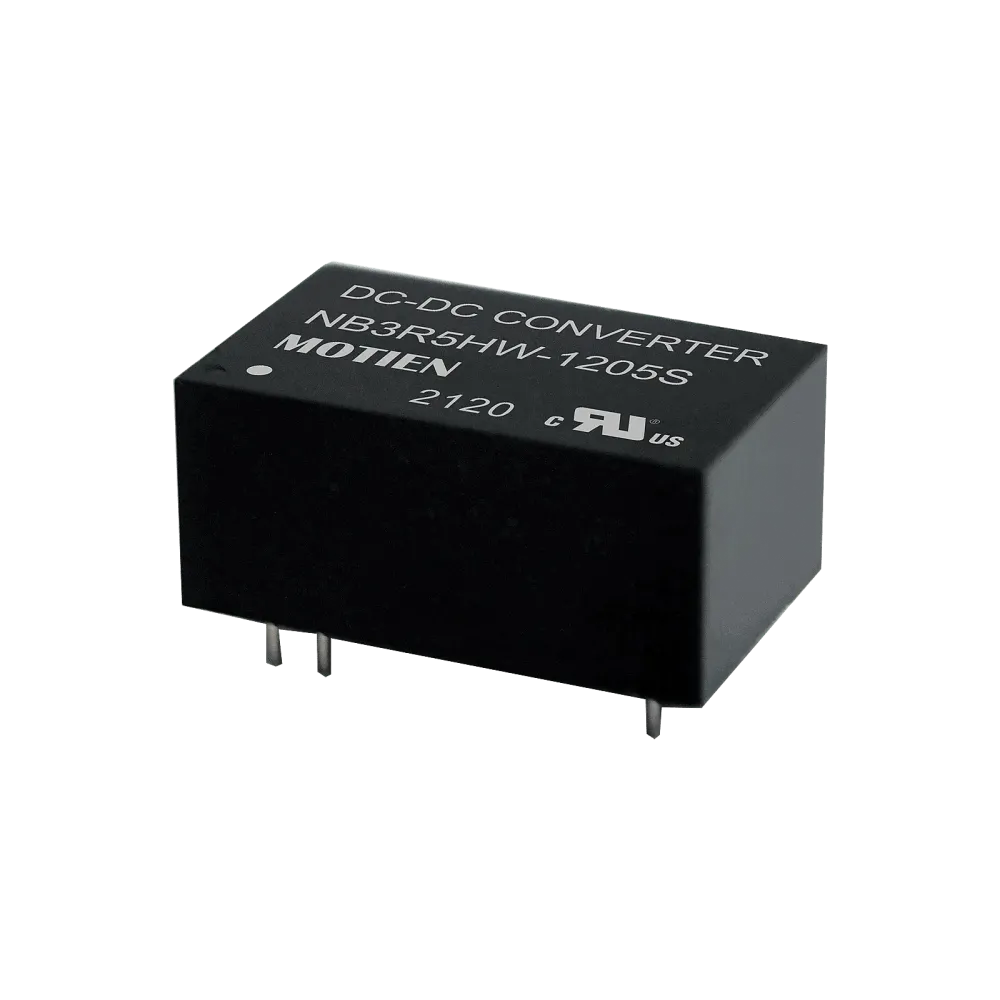

3.5W DC/DC converter, input 18..75V, output 12V/0.292A
Technical data
- Compact DIP16 housing
- 4:1 Input voltage ratio
- Efficiency 84%
- Remote On/Off
- 5000Vac insulation
- Protective circuit: permanent short circuit, undervoltage
- Operating temperature range -40..+90°C
- 3-year guarantee
- Manufacturer Motien
Product specifications
| Output voltage (VDC) | 12 V |
| Design | DIP16 |
| Additional functions | Remote ON/OFF |
| Manufacturer | Motes |
| Output current | 292 mA |
| Height | 10.8 mm |
| Width | 14.7 mm |
| Length | 24.4 mm |
| Power | 3.5 W |
| Nominal input voltage (VDC) | 24-72 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Application | ITE/AV |
| I/O isolation | 5000 VAC |
