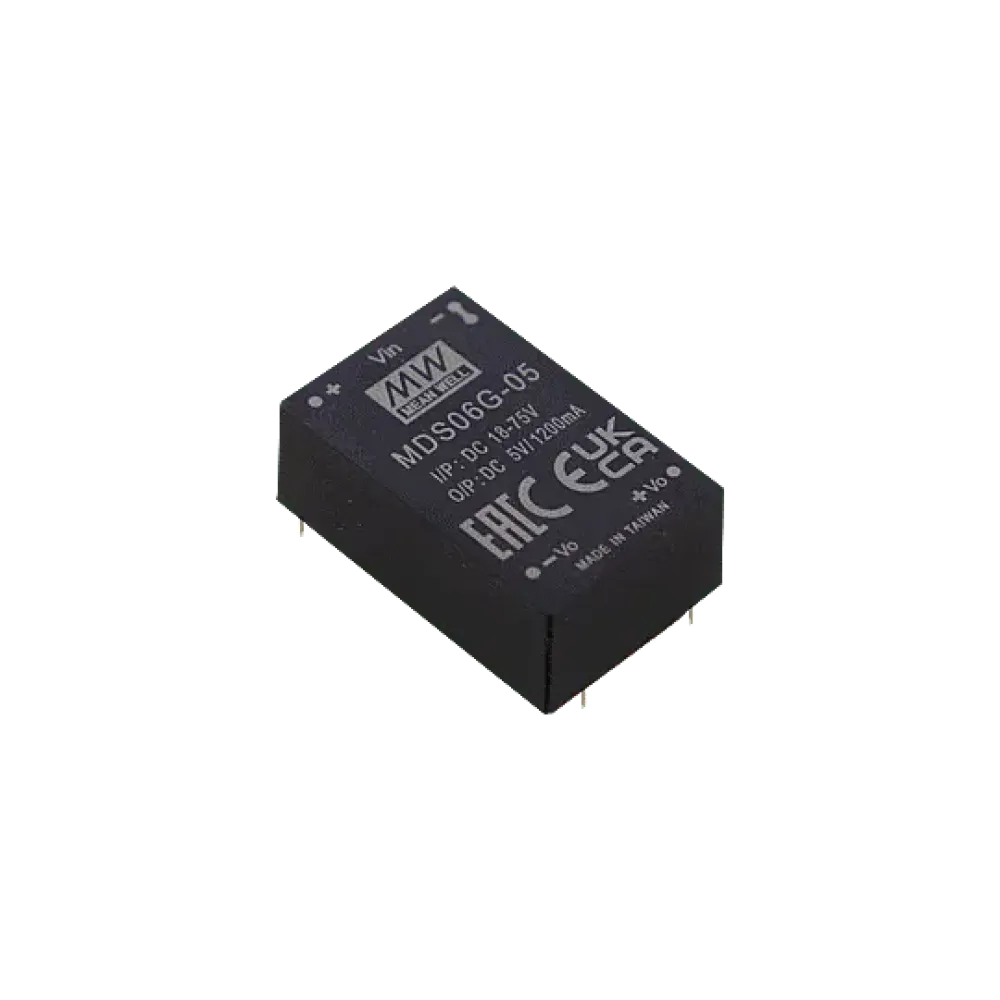

6W medical DC/DC converter, input 9..36V, output 5V/1.2A
Technical data
- 4:1 Entrance area
- DIP24 housing with standard pinout
- 6000Vdc or 4.2Vac Isolation (Reinforced isolation)
- Deep leakage current <5müA
- Protective circuits: permanent short circuit, overload
- Operating temperature range from -40°C..+90°C
- Medical approval (2xMOPP) according to IEC60601-1
- 3-year guarantee
- Manufacturer MEAN WELL
Product specifications
| Manufacturer | MEAN WELL |
| Design | DIP24 |
| Height | 12.2 mm |
| Width | 20.3 mm |
| Length | 31.8 mm |
| Nominal input voltage (VDC) | 12-24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Application | Medical |
| Output voltage (VDC) | 5 V |
| Power | 6 W |
| Output current | 1200 mA |
| I/O isolation | 6000 VDC |
