6W DC/DC converter Input range 18...74Vdc, output 15V/0.4A

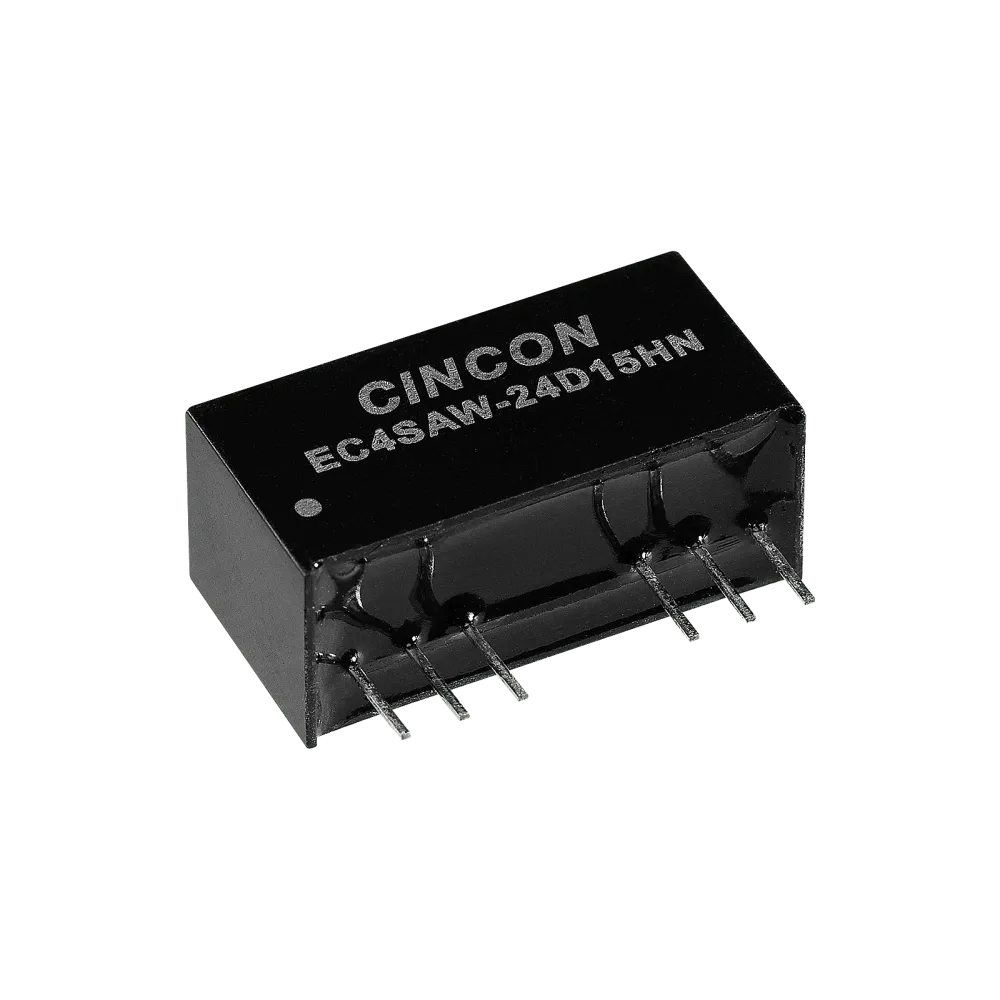

The EC4SAWH DC-DC converters offer 5-6 watts of output power in a 0.86×0.36×0.44 inch SIP-8 plastic housing. The
. EC4SAWH series has a 4:1 wide input voltage range of 9-36 and 18-74VDC and provides a precisely regulated
output. This series is characterized by a high efficiency, an isolation of 3000 VDC and an operating temperature range of
from -40℃ to 85℃ (with de-rating). All models are ideal for power supply architectures, telecommunications, battery-powered devices and industrial applications.

Technical data

• Fixed switching frequency
• Regulated outputs
• Efficiency 87%
• Negative remote on/off
• 3000Vdc insulation
• Protective circuit: permanent short circuit
• Industry approval according to IEC/EN/UL 62368-1
• Shock & Vibration MIL-STD-810F compliant
• 3-year guarantee
• Manufacturer Cincon
