About the product

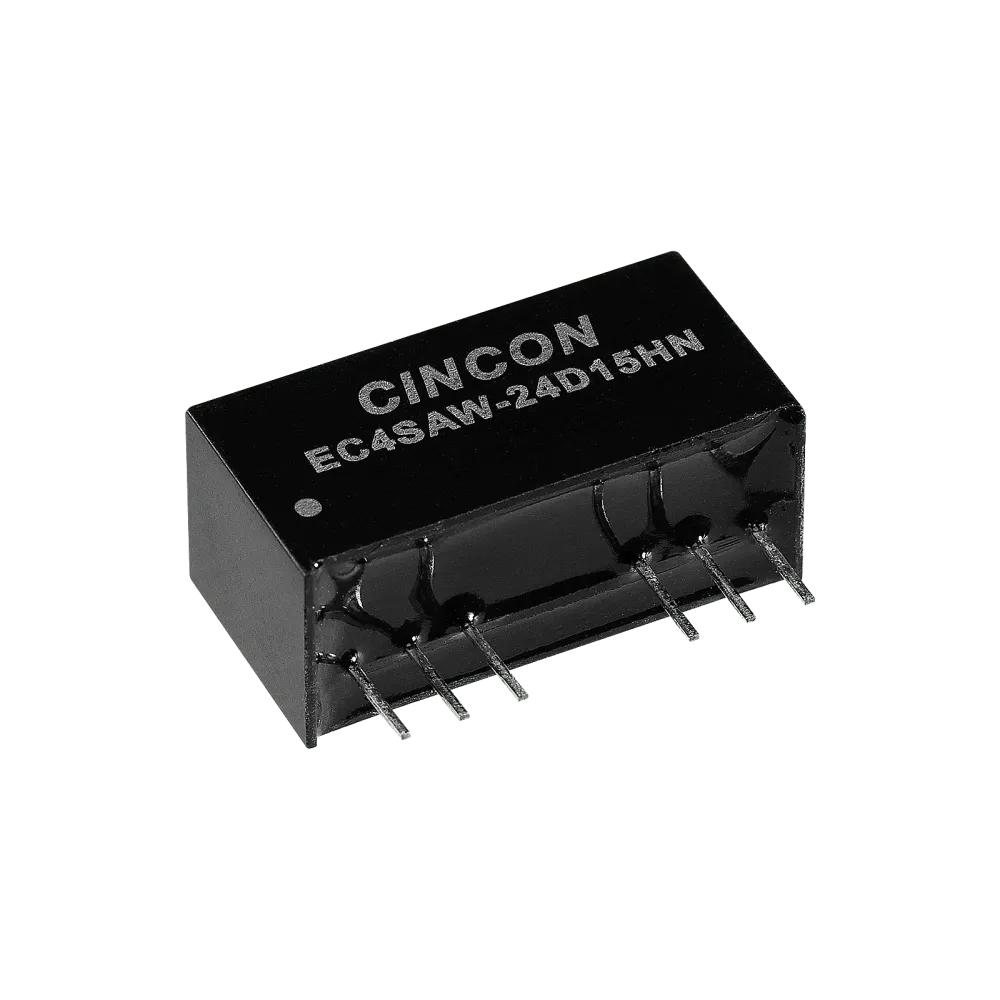

6W DC/DC converter Input range 18..74Vdc, output +/-15V / +/-0.2A
Technical data
- Fixed switching frequency
- Regulated outputs
- Efficiency 87%
- Negative remote on/off
- 3000Vdc insulation
- Protective circuit: permanent short circuit
- Industry approval according to IEC/EN/UL 62368-1
- Shock & Vibration MIL-STD-810F compliant
- 3-year guarantee
- Manufacturer Cincon
Product specifications
| Manufacturer | Cincon |
| Additional functions | Remote ON/OFF |
| I/O isolation | 1500 VDC |
| Length | 21.8 mm |
| Nominal input voltage (VDC) | 24-72 V |
| Output current | 200000 mA |
| Height | 11.1 mm |
| Width | 9.2 mm |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Output voltage (VDC) | 15 V |
| Application | ITE/AV |
| Power | 6 W |
| Design | SIP8 |
