About the product

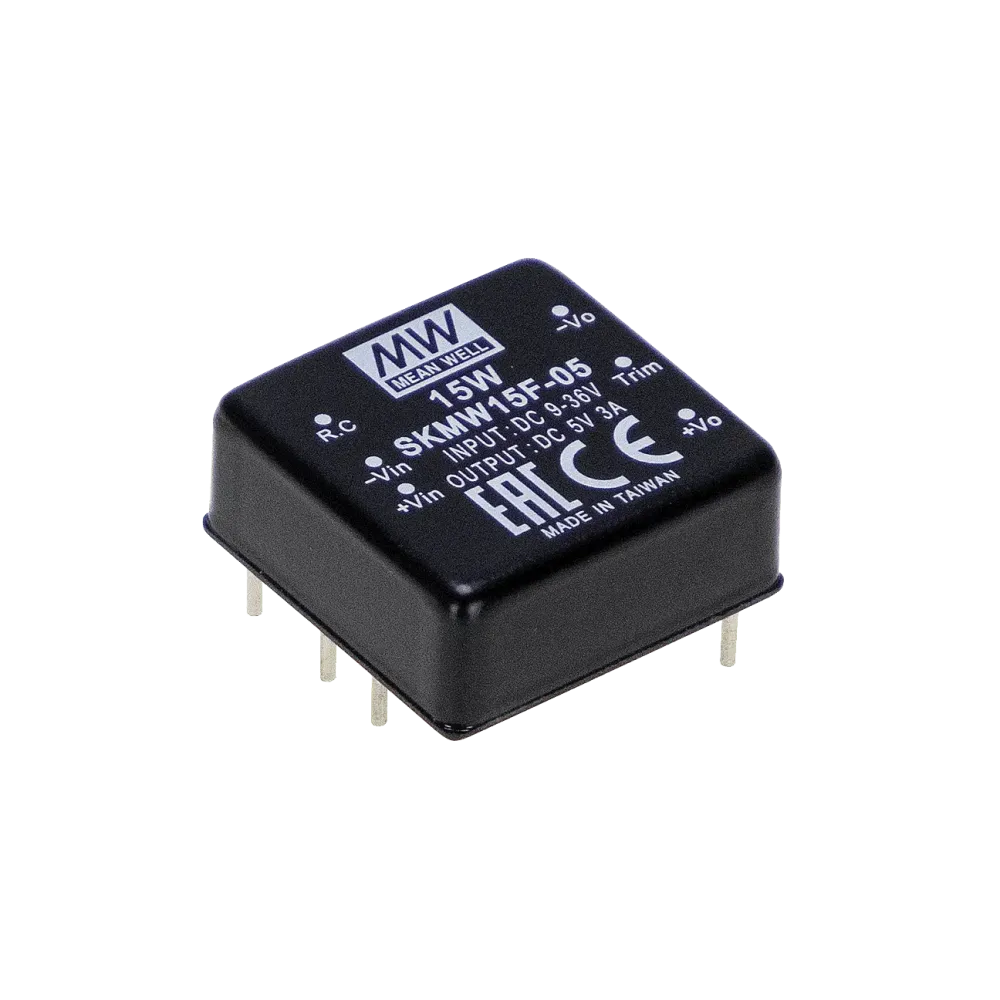

15W DC/DC converter, input 9..36V, output 5V/3A
Technical data
- DIP housing 1''x1'' with industry standard pinout
- 4 :1 ultra-wide input voltage range
- High efficiency up to 89
- Temperature range -40°..+85°C
- No minimum load required
- Complies with EN55032 radiated class A without additional components
- Protective circuit : Permanent short circuit/overcurrent/overvoltage/undervoltage cut-off
- 3kVdc I/O isolation
- 3-year guarantee
- Manufacturer Mean Well
Product specifications
| Manufacturer | MEAN WELL |
| I/O isolation | 3000 VDC |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Height | 11.7 mm |
| Nominal input voltage (VDC) | 12-24 V |
| Output current | 3000 mA |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Length | 25.4 mm |
| Width | 25.4 mm |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Power | 15 W |
| Design | 1×1 inch |
