About the product

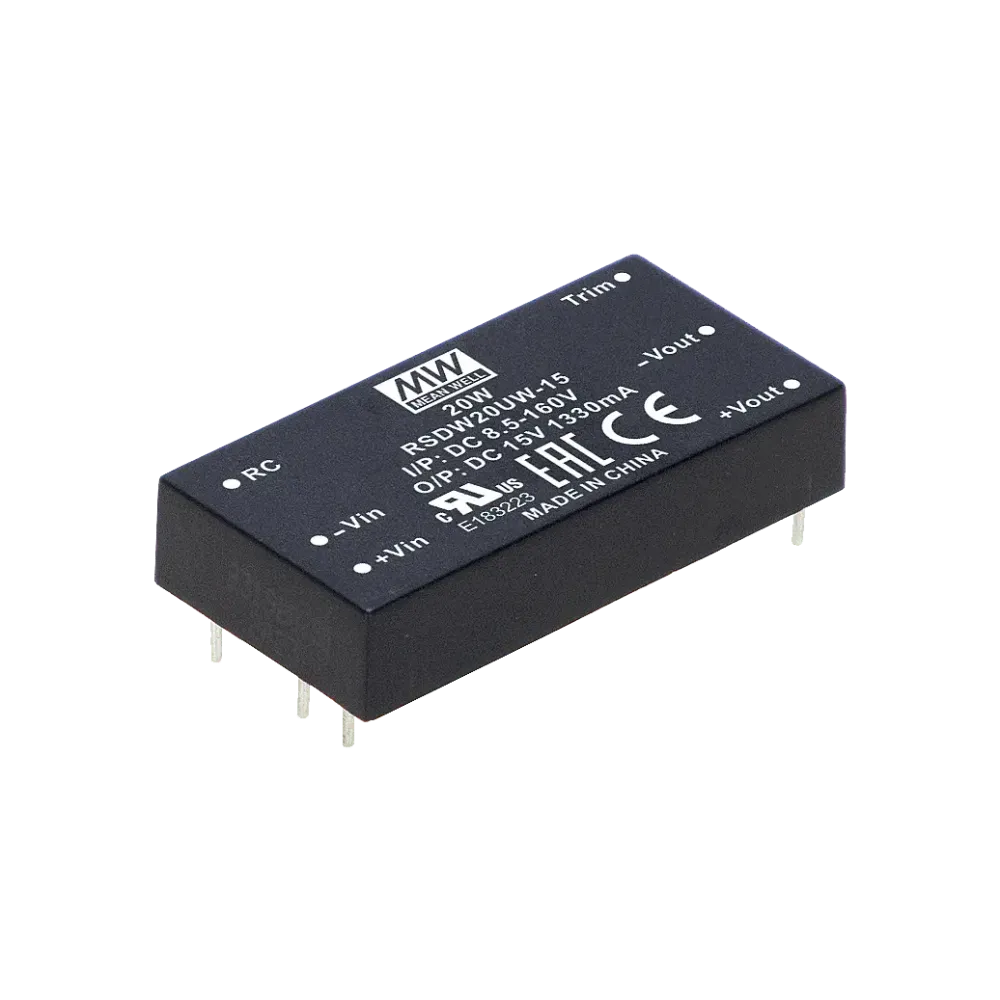

20W DC/DC converter, input 8.5..160V, output 15V/1.33A
Technical data
- Railroad area conforms to standard EN50155
- DIP housing 2''x1'' with standard pinout
- Ultra-wide input voltage range 18 :1 (8.5..160Vdc)
- Temperature range -40°..+95°C
- No minimum load required
- Fully potted
- Protective circuit: Permanent short circuit/overcurrent/overvoltage/undervoltage cut-off
- 3kVdc I/O isolation
- Remote ON/OFF
- Deployment 5000m.a.s.l.
- 3-year guarantee
- Manufacturer Mean Well
Product specifications
| Manufacturer | MEAN WELL |
| Application | Railroad, ITE/AV |
| I/O isolation | 3000 VDC |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Input voltage ratio | N/A |
| Nominal input voltage (VDC) | 12-110 V |
| Height | 10.5 mm |
| Output current | 1333 mA |
| Regulation | Regulated |
| Length | 50.8 mm |
| Width | 25.4 mm |
| Power | 20 W |
| Output voltage (VDC) | 15 V |
| Design | 2×1 inch |
Data sheets
