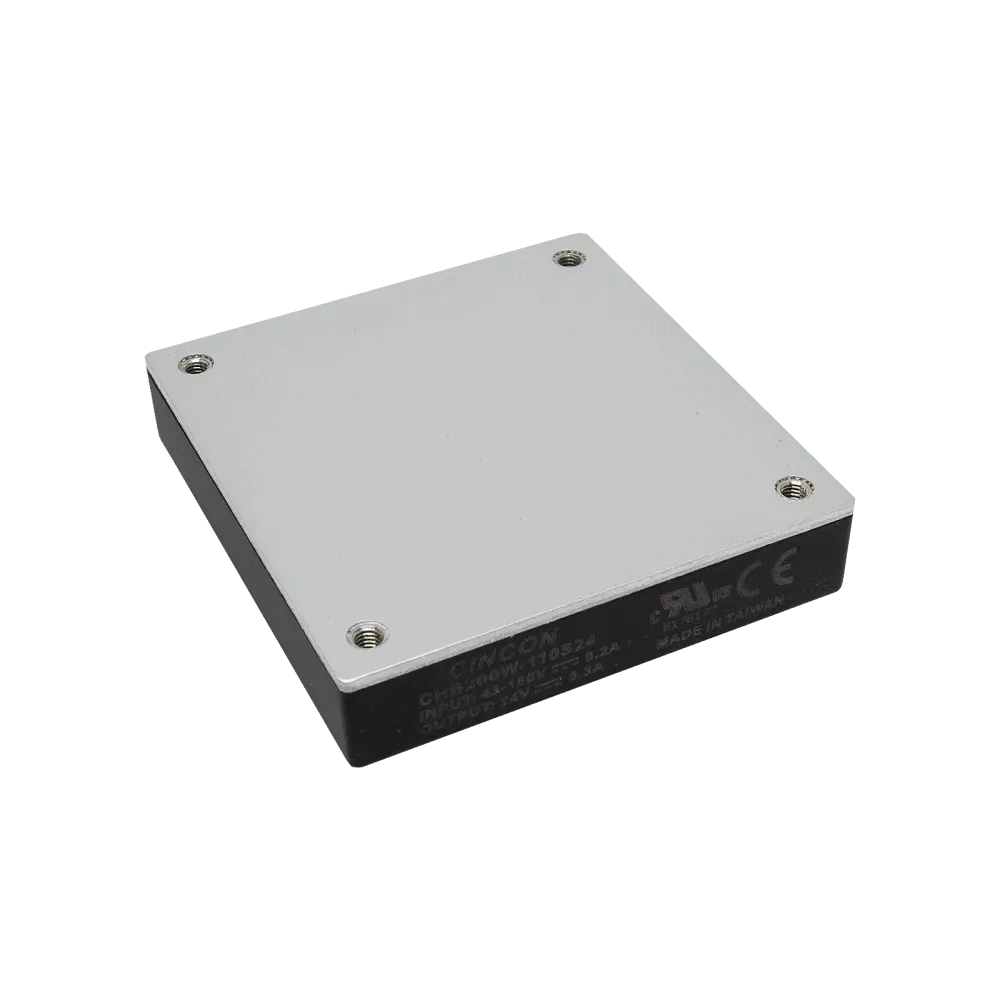

150W DC/DC converter, input 14...160V, output 15V/10A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

150W DC/DC converter, input 14..160V, output 15V/10A

Half brick design meets industry standard 2.28''×2.40''x0.50''
Fixed switching frequency
Regulated outputs
Efficiency 91%
3000Vac I/O isolation
Temperature range -40°..+100°C
Protective circuit: overcurrent/overvoltage/overtemperature/undervoltage cut-off
Remote ON/OFF
CB Test Certificate IEC62368-1
EN50155 compliant with external circuit
UL62368-1 2nd Approval (Reinforce Insulation)
Shock & Vibration EN50155 (EN61373) compliant
Fire & Smoke EN45545-2 compliant
Deployment 5000m.a.s.l.
2-year guarantee
Manufacturer Cincon

Power	150 W
Application	Railroad, ITE/AV
Additional functions	Parallel switchable, remote ON/OFF, remote sense, voltage trim
I/O isolation	3000 VDC
Input voltage ratio	N/A
Nominal input voltage (VDC)	15-110 V
Length	57.9 mm
Output current	10000 mA
Regulation	Regulated
Height	12.7 mm
Manufacturer	Cincon
Width	61 mm
Output voltage (VDC)	15 V
Design	Halfbrick
