About the product

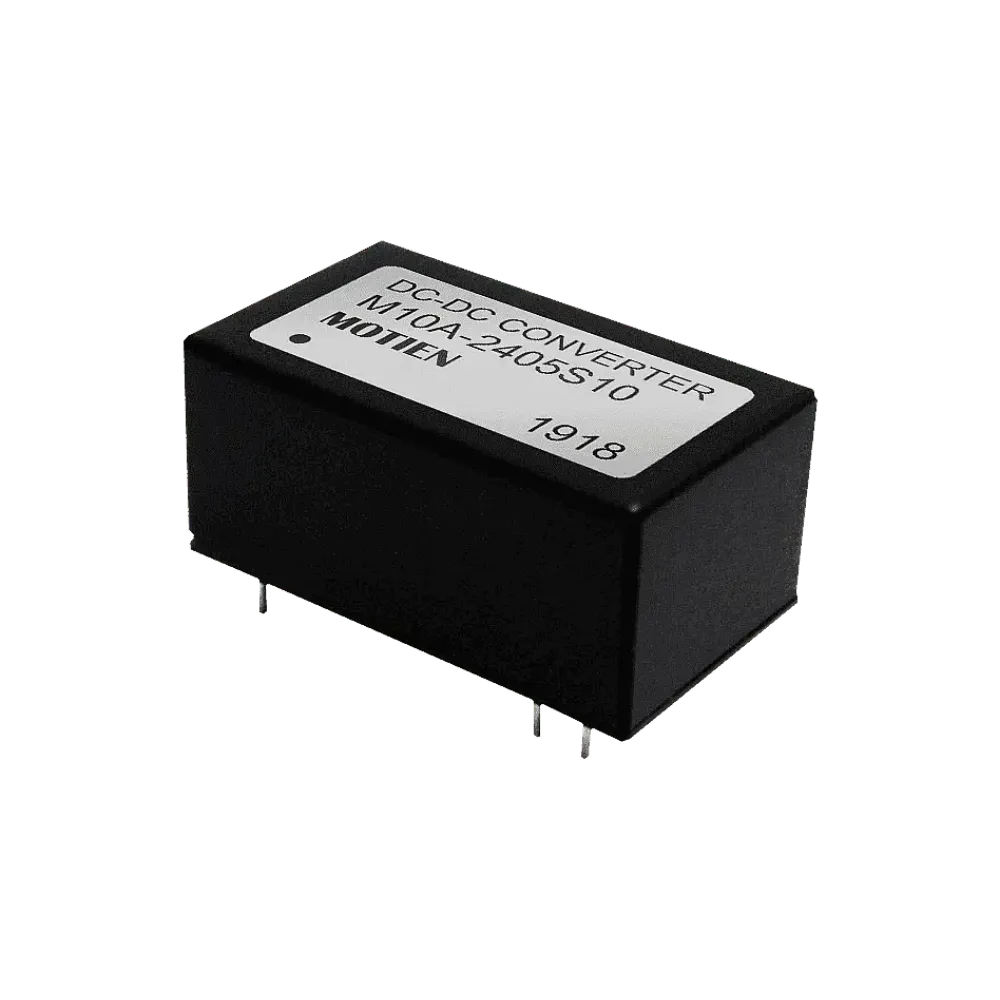

10W DC/DC converter, input 18..75V, output 5V/2A
Technical data
- 4:1 Input voltage range
- 1600Vdc insulation
- Efficiency 87%
- High power density : 10Watt in DIP16 housing
- Temperature range -40°..+100°C
- Adjustable output voltage
- Protective circuit: permanent short circuit and overload
- Undervoltage blocking circuit
- No minimum load required
- Built-in EMC / EMI filters complies with EN550032 Class A
- 3-year guarantee
- Manufacturer Motien
Product specifications
| Height | 10.4 mm |
| I/O isolation | 1600 VDC |
| Design | DIP16 |
| Manufacturer | Motes |
| Width | 13.7 mm |
| Length | 23.8 mm |
| Nominal input voltage (VDC) | 24-72 V |
| Input voltage ratio | N/A |
| Regulation | Unregulated |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Power | 10 W |
| Output current | 2000 mA |
| Additional functions | Voltage Trim |
