About the product

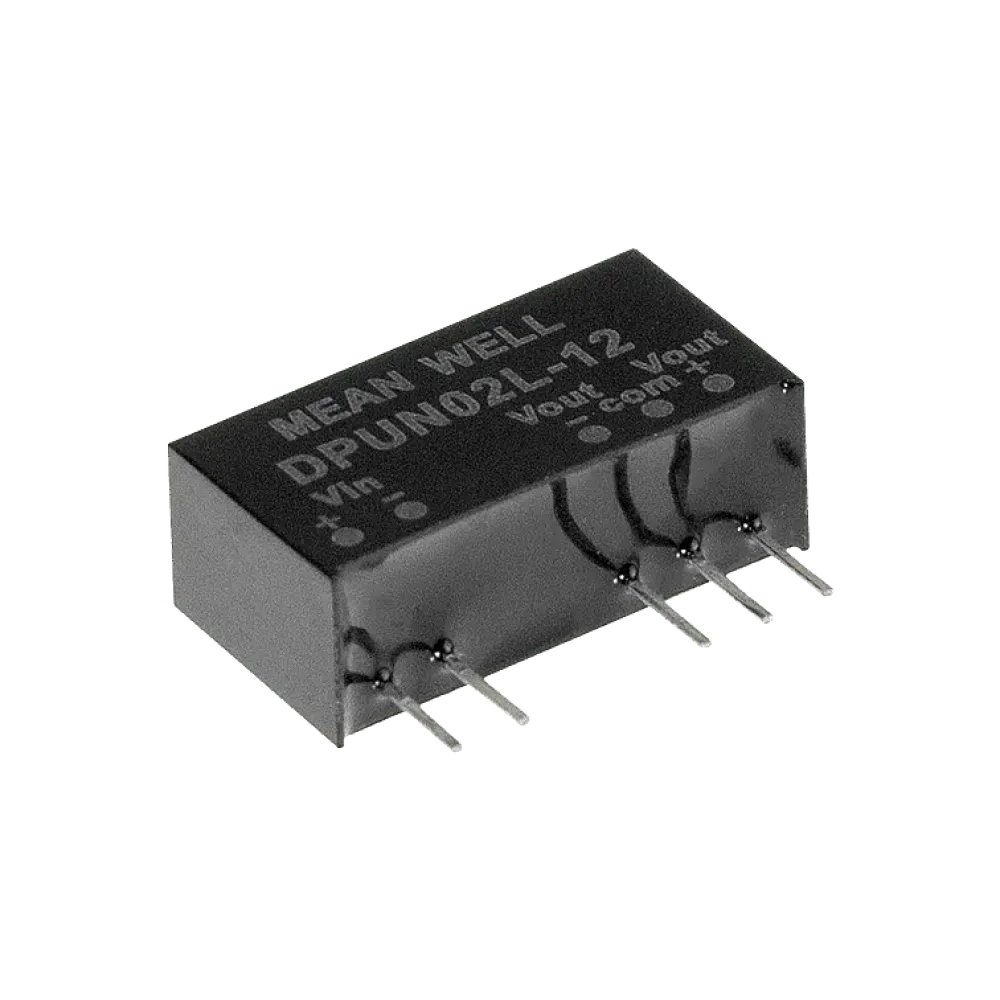

2W DC/DC converter, input 10.8..13.2V, output +/-12V / +/-0.083A
Technical data
- SIP7 housing with industry standard pinout
- Operating temperature range -40°..+105°C
- Complies with EN55032 radiated class B without additional components
- Efficiency 87%
- Protective circuit: short circuit/overcurrent
- 3kVdc I/O isolation
- Low cost
- 3-year guarantee
- Manufacturer Mean Well
Product specifications
| Manufacturer | MEAN WELL |
| Design | SIP7 |
| Additional functions | Remote ON/OFF |
| Height | 10.14 mm |
| Length | 19.6 mm |
| Width | 7.1 mm |
| Nominal input voltage (VDC) | 12 V |
| Output current | 83000 mA |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Output voltage (VDC) | 12 V |
| Power | 2 W |
| Application | ITE/AV |
| I/O isolation | 3000 VDC |
