About the product

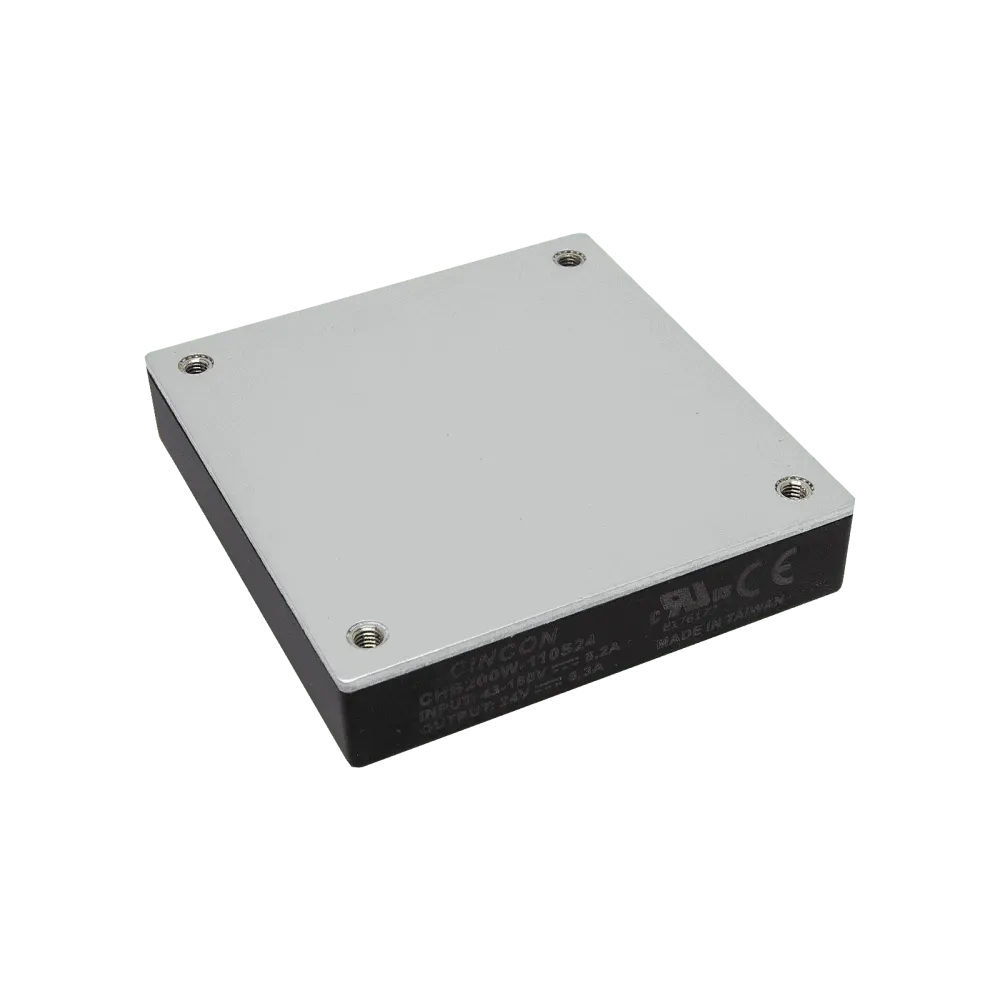

200W DC/DC converter, input 43..160V, output 12V/16.7A
Technical data
- Half brick design meets industry standard 2.28''×2.40''x0.50''
- Fixed switching frequency
- Regulated outputs
- Efficiency 90%
- 3000Vac I/O isolation
- Temperature range -40°..+100°C
- Protective circuit: overcurrent/overvoltage/overtemperature/undervoltage cut-off
- Remote ON/OFF
- CB Test Certificate IEC62368-1
- EN50155 compliant with external circuit
- UL62368-1 2nd Approval (Reinforce Insulation)
- Shock & Vibration EN50155 (EN61373) compliant
- Fire & Smoke EN45545-2 compliant
- Deployment 5000m.a.s.l.
- 2-year guarantee
- Manufacturer Cincon
Product specifications
| Output voltage (VDC) | 12 V |
| Application | Railroad, ITE/AV |
| Additional functions | Parallel switchable, remote ON/OFF, remote sense, voltage trim |
| I/O isolation | 3000 VDC |
| Length | 57.9 mm |
| Nominal input voltage (VDC) | 48-110 V |
| Output current | 16700 mA |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Height | 12.7 mm |
| Manufacturer | Cincon |
| Width | 61 mm |
| Power | 200 W |
| Design | Halfbrick |
