2W medical DC/DC converter, input 21.6...26.4V, output +/-12V / +/-0.83A

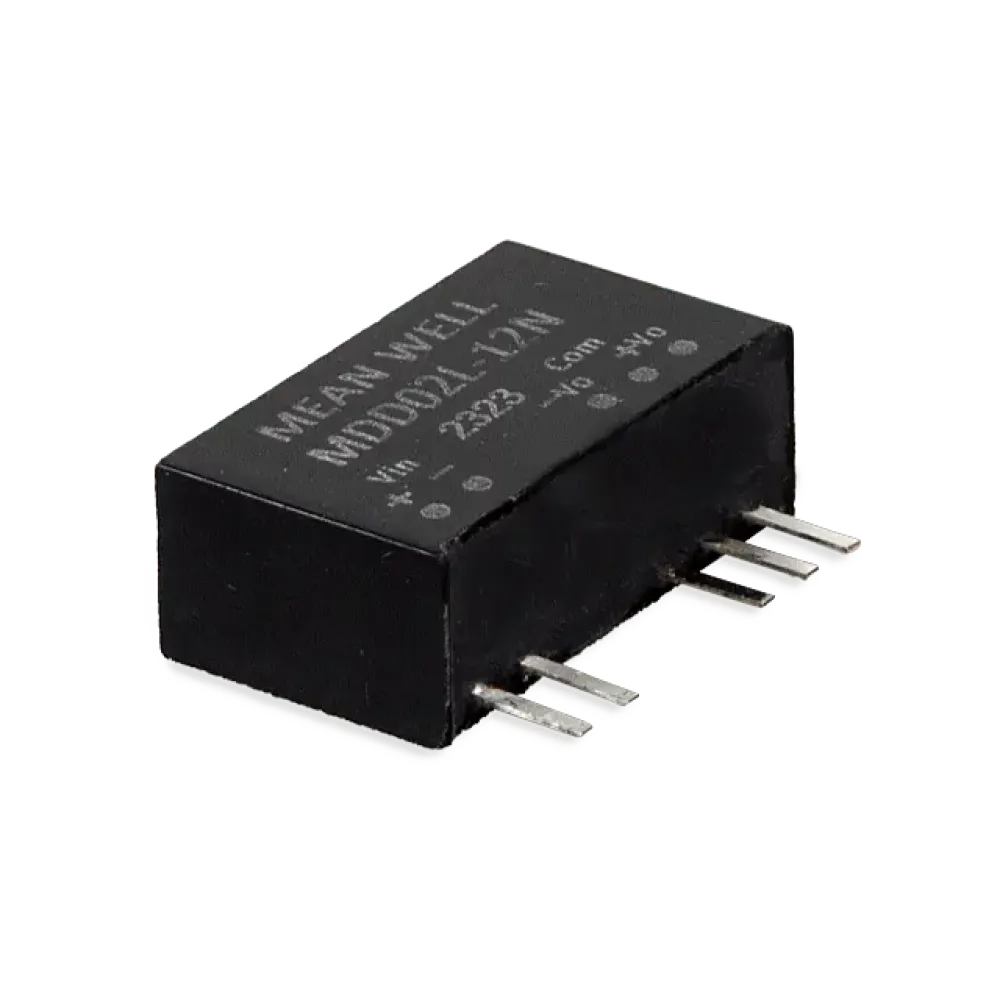

MDD02-N are isolated and unregulated 1 watt DC-DC converters in modular design with SIP7 housing. The converters feature international standard pins, high efficiency, a wide operating temperature range from -40° to +95°C, 6kVDC I/O isolation voltage, short-circuit protection, etc. The models are suitable for medical systems, applications with extremely low leakage currents or industrial control systems, telecommunications, distributed power architecture, etc.

Technical data

• SIP7 housing with international standard pinout
• Operating temperature -40°..+95°C
• Medical approval (1x MOPP/2x MOOP) according to IEC60601-1
• Low patient leakage current <2µA
• Protective circuit: Short circuit (continuous)
• Reinforced insulation 6kVdc or 4.2kVac high I/O insulation
• Low cost
• 3-year guarantee
• Manufacturer MEAN WELL
