About the product

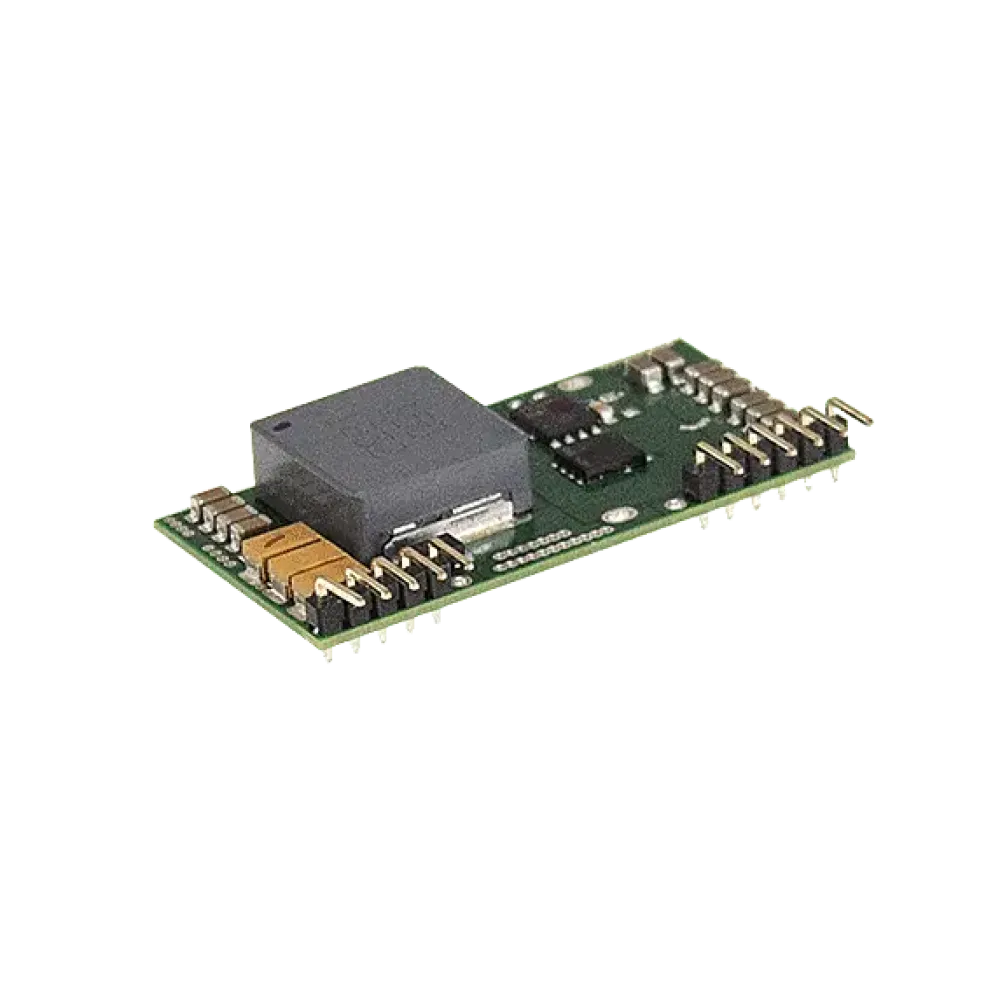

64.8W DC/DC converter, input 30..53V, output 24V/2.7A
Technical data
- Open frame design
- Wide input voltage range
- High efficiency 97%
- Remote ON/OFF control
- Compact SIP package 2x 1.024x 0.433
- Protective circuit: short circuit/overcurrent/overvoltage
- Wide temperature range -30°..+85°C
- Convection cooling
- Complies with EN55032 Class A without additional components
- Optional output voltage adjustment
- 3-year guarantee
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 24 V |
| Design | Open frame |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Output current | 2700 mA |
| Width | 26 mm |
| Nominal input voltage (VDC) | 36-48 V |
| Input voltage ratio | N/A |
| Regulation | Unregulated |
| Length | 50.8 mm |
| Application | ITE/AV |
| Height | 10.7 mm |
| Power | 65 W |
| Manufacturer | MEAN WELL |
| I/O isolation | not isolated |
Data sheets
