About the product

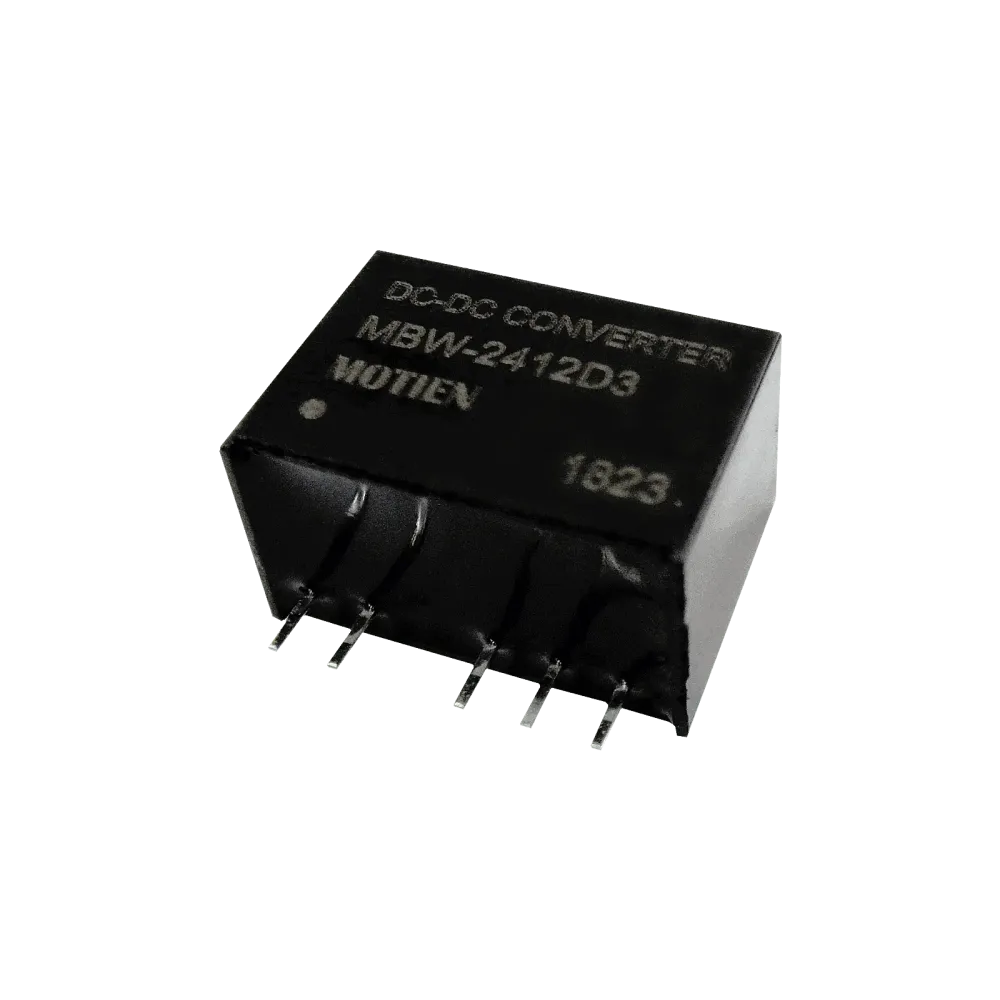

3W DC/DC converter, input 18.75V, output +/-5V / +/-0.3A
Technical data
- Highest power density in SIP6 housing
- Next 4:1 Entrance area
- 3Watt converter with the smallest footprint
- SMD technology
- 1.6kVdc Insulation
- Permanent short-circuit resistance
- Efficiency 84%
- Ambient temperature range from -40°C-+76°C
- Remote ON/OFF control
- 3-year guarantee
- Manufacturer Motien
Product specifications
| Output current | 300 mA |
| I/O isolation | 1600 VDC |
| Additional functions | Remote ON/OFF |
| Manufacturer | Motes |
| Width | 10.5 mm |
| Length | 17 mm |
| Height | 11.7 mm |
| Nominal input voltage (VDC) | 24-72 V |
| Output voltage (VDC) | 5 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Application | ITE/AV |
| Power | 3 W |
| Design | SIP6 |
Data sheets
