About the product

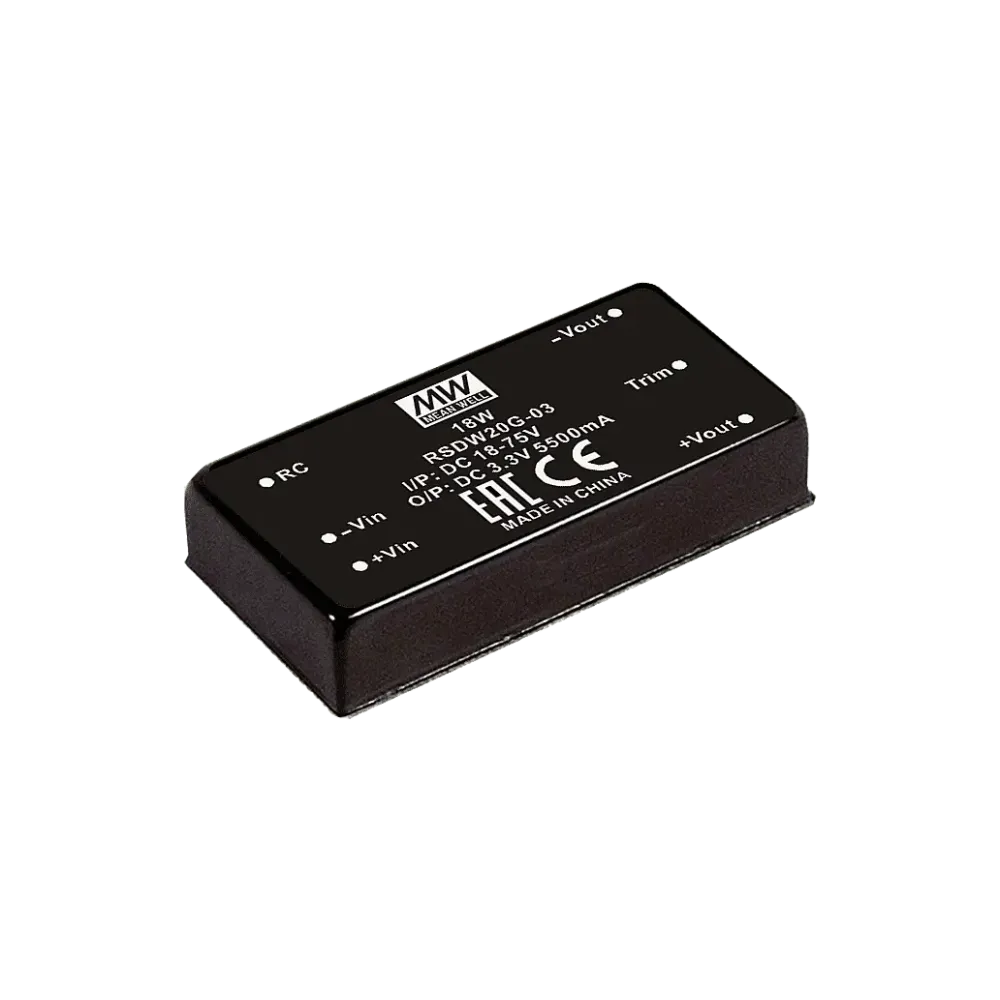

18.15W DC/DC converter, input 18..75V, output 3.3V/5.5A
Technical data
- Meets standard railroad approval EN50155
- DIP 2x1 housing with standard pinout
- 4:1 Wide entrance area
- Wide temperature range -40°C..+85°C
- No minimum load required
- Fully encapsulated
- Protective circuits: Short circuit/overload/overvoltage/undervoltage
- 1.5kVdc/3kVdc Isolation
- Remote ON/OFF control
- 3-year guarantee
- Manufacturer Mean Well
Product specifications
| Manufacturer | MEAN WELL |
| Application | Railroad, ITE/AV |
| Additional functions | Remote ON/OFF, Voltage Trim |
| I/O isolation | 1500 VDC |
| Output current | 5500 mA |
| Height | 10.5 mm |
| Nominal input voltage (VDC) | 24-72 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Length | 50.8 mm |
| Width | 25.4 mm |
| Output voltage (VDC) | 3.3 V |
| Power | 18 W |
| Design | 2×1 inch |
Data sheets
