About the product

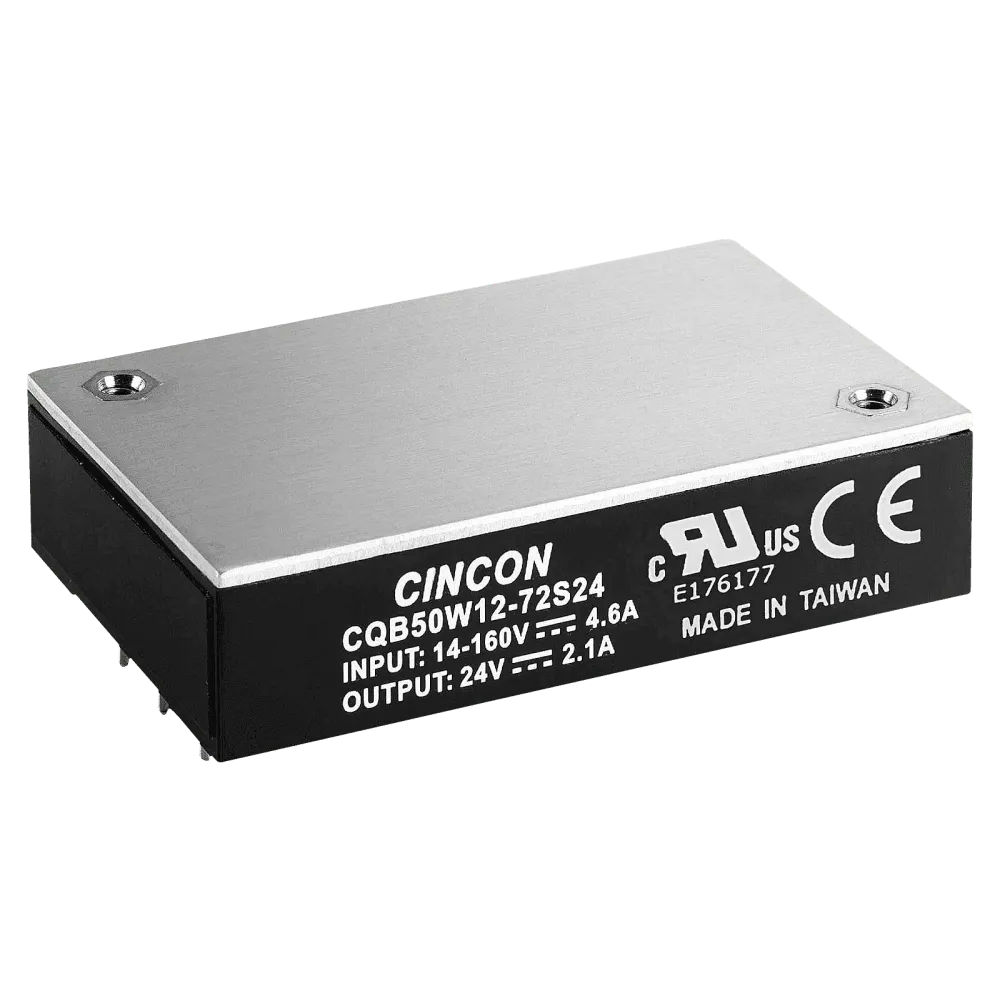

50W DC/DC converter, input 14..160V, output 24V/2.1A
Technical data
- 30 to 50W isolated outputs
- Quarter Brick industry standard
- Efficiency 89%
- 12:1 Entrance area
- Regulated outputs
- Remote On/Off
- Low no-load current consumption
- Protective circuit: overvoltage/overcurrent/overtemperature/short-circuit proof
- UL60950-1 2nd (Basic Insulation) approval
- Track standard EN50155 for shock & vibration with external wiring
- Railroad standard EN45545-2 for fire & smoke
- 5000m operating range
- 2-year guarantee
- Manufacturer Cincon
Product specifications
| Output voltage (VDC) | 24 V |
| Design | Quarterbrick |
| Additional functions | Parallel switchable, remote ON/OFF, remote sense, voltage trim |
| I/O isolation | 3000 VDC |
| Input voltage ratio | N/A |
| Nominal input voltage (VDC) | 15-110 V |
| Length | 36.8 mm |
| Regulation | Regulated |
| Height | 12.7 mm |
| Width | 57.9 mm |
| Manufacturer | Cincon |
| Output current | 2100 mA |
| Power | 50 W |
| Application | Railroad, ITE/AV |
Data sheets
