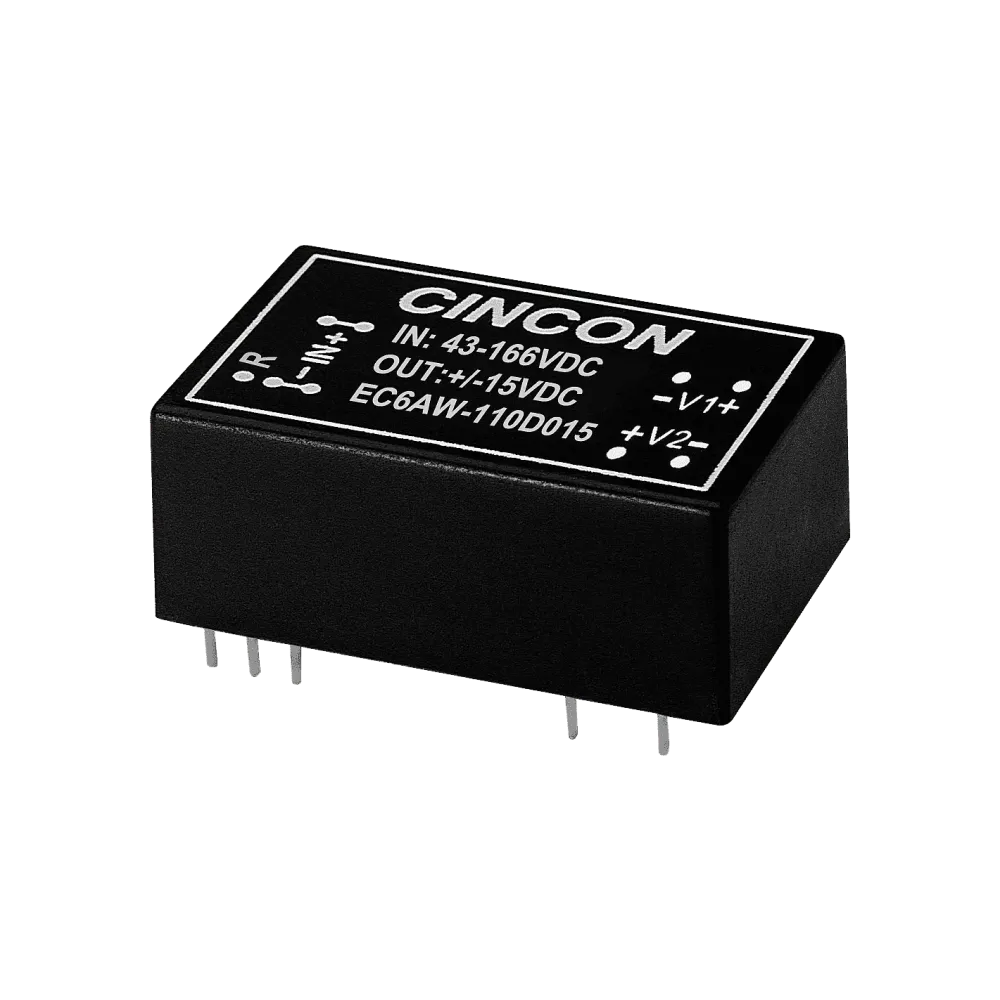

10W DC/DC converter, input 43..160V, output 15V/0.666A
Technical data
- 10W isolated outputs
- Efficiency 88.5%
- Deeper No load power consumption
- 4:1 Entrance area
- Regulated outputs
- Protective circuit: Undervoltage/overcurrent/permanent short-circuit resistance
- Remote On/Off
- UL60950-1 2nd approval (Basic Insulation)
- Railroad standard EN50155 for Shock & Vibration
- Railroad standard EN45545-2 for fire & smoke
- 3050m Application range
- 2-year guarantee
- Manufacturer Cincon
Product specifications
| Output voltage (VDC) | 15 V |
| Additional functions | Remote ON/OFF |
| I/O isolation | 1500 VDC |
| Output current | 670 mA |
| Height | 11.7 mm |
| Nominal input voltage (VDC) | 48-110 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Length | 25.4 mm |
| Width | 25.4 mm |
| Application | ITE/AV |
| Power | 10 W |
| Manufacturer | Cincon |
| Design | 1×1 inch |
