About the product

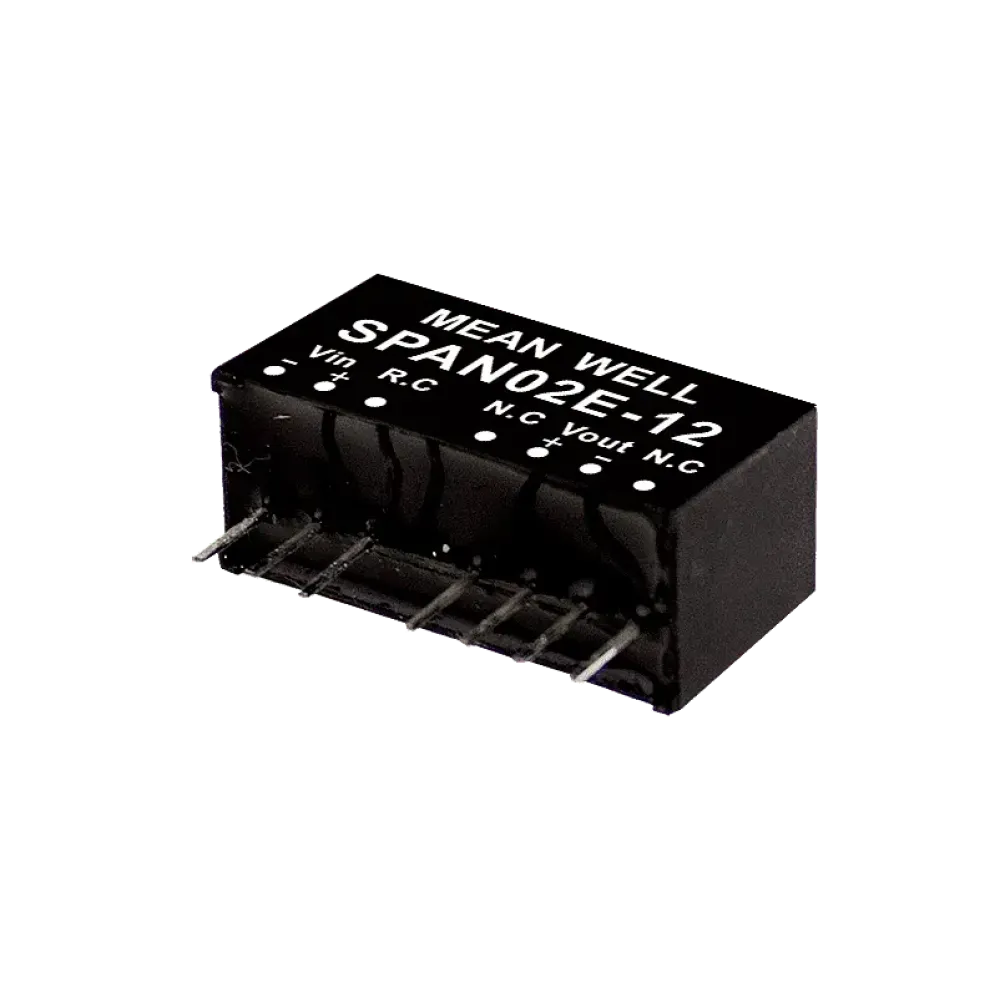

2W DC/DC converter, input 18..36V, output 12V/0.167A
Technical data
- SIP housing with industrial pinout
- Wide input voltage range
- Temperature range -40°C to +90°C
- No minimum load required
- Complies with EN55032 class A without external components
- Efficiency 85%
- Protective circuit: short circuit / overcurrent
- Insulation voltage 1.5kVdc
- Remote On/Off Control
- 3-year guarantee
- Manufacturer Mean Well
Product specifications
| Manufacturer | MEAN WELL |
| Additional functions | Remote ON/OFF |
| I/O isolation | 1500 VDC |
| Length | 21.8 mm |
| Height | 11.1 mm |
| Width | 9.2 mm |
| Nominal input voltage (VDC) | 24 V |
| Input voltage ratio | N/A |
| Regulation | Unregulated |
| Output current | 167 mA |
| Power | 2 W |
| Application | ITE/AV |
| Output voltage (VDC) | 12 V |
| Design | SIP8 |
