About the product

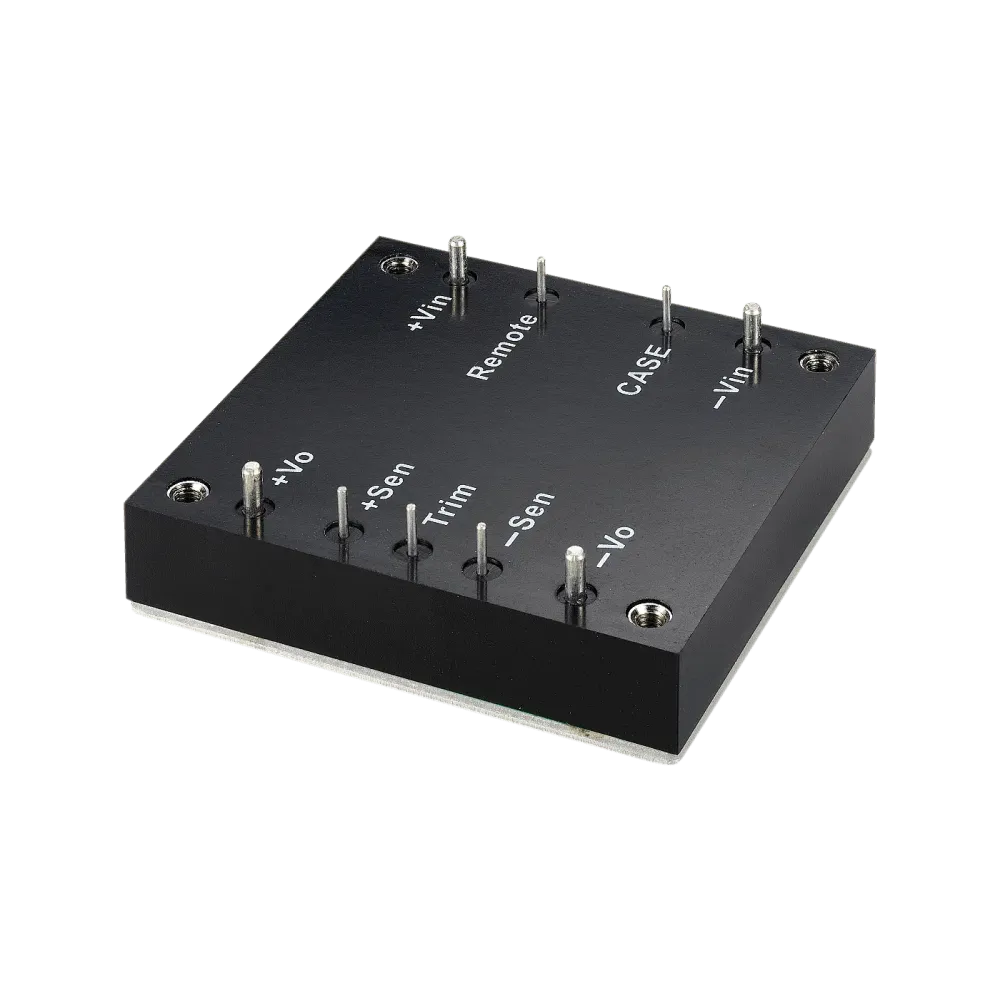

The CHB150W series offers 150 watts of high power density output power in an industry standard half-brick package. The CHB150W series has a wide (4:1) input voltage range of 9-36 and 18-75VDC and offers a precisely regulated output. This series offers performance features such as high efficiency, 1500VDC isolation and an operating temperature range of -40°C to 100°C. The modules are fully protected against input UVLO (Under Voltage Lock Out), output short circuit, output over voltage and over temperature. Standard control functions also include remote on/off and output voltage trimming. All models are ideal for telecommunications, decentralized power supply architectures, battery-powered devices, industrial and mobility applications.
Technical data
- 150W isolated outputs
- Efficiency 91%
- Industry standard Half Brick
- 4:1 Entrance area
- Regulated outputs
- Remote On/Off
- Protective circuit: overtemperature/overvoltage/overcurrent/short circuit
- Safety standard UL60950-1 (except 28Vdc/48Vdc)
- Dimensions 57.9 x 61.0 x 13.2mm (L x W x H)
- 2-year guarantee
- Manufacturer Cincon
Product specifications
| Output voltage (VDC) | 24 V |
| Design | Halfbrick |
| I/O isolation | 1500 VDC |
| Height | 13.2 mm |
| Output current | 6250 mA |
| Length | 57.9 mm |
| Nominal input voltage (VDC) | 12-24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Application | ITE/AV |
| Manufacturer | Cincon |
| Width | 61 mm |
| Power | 150 W |
| Additional functions | Remote ON/OFF, Remote sense, Voltage Trim |
