About the product

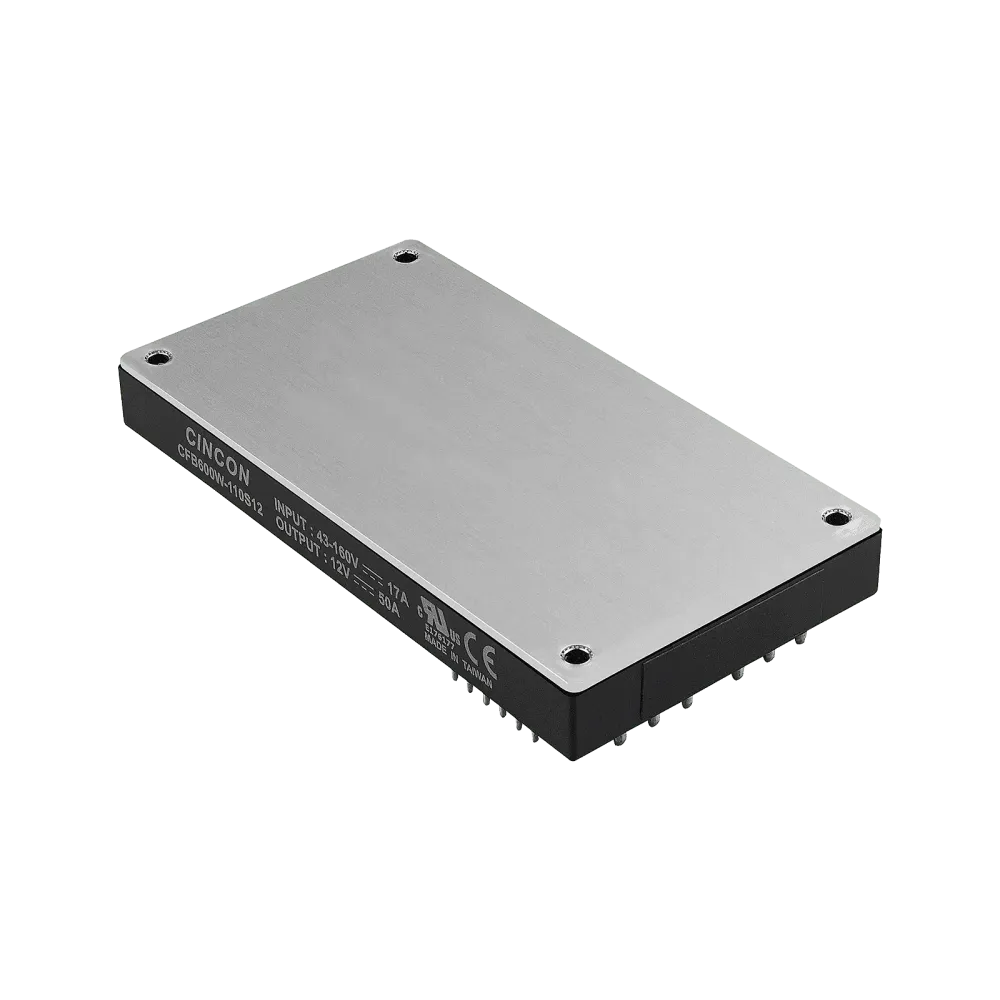

The CFB600 series is an isolated DC-DC converter with up to 50A output current. The converter delivers a precisely regulated output voltage and covers an input voltage range of 18 to 36Vdc or 36 to 75Vdc. These modules achieve a high efficiency of up to 92%, resulting in very good thermal characteristics.
Standard functions include an isolated remote ON/OFF (positive or negative), remote sense, output voltage regulation and integrated protection circuits for overvoltage, overload and overtemperature.
Technical data
- 600W isolated outputs
- Efficiency 92%
- Industry Full Brick Package
- Protective circuit: Input undervoltage/overcurrent/overvoltage/overtemperature
- Remote ON/OFF
- Safety standard UL62368-1
- Dimensions 116.8 x 61.0 x 12.7mm (L x W x H)
- 3-year guarantee
- Manufacturer Cincon
Product specifications
| Output voltage (VDC) | 12 V |
| Additional functions | 10VDC auxiliary output, parallel switchable, remote ON/OFF, voltage trim |
| I/O isolation | 1500 VDC |
| Nominal input voltage (VDC) | 24 V |
| Output current | 50000 mA |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Height | 12.7 mm |
| Length | 116.8 mm |
| Application | ITE/AV |
| Manufacturer | Cincon |
| Power | 600 W |
| Width | 61 mm |
| Design | Fullbrick |
