About the product

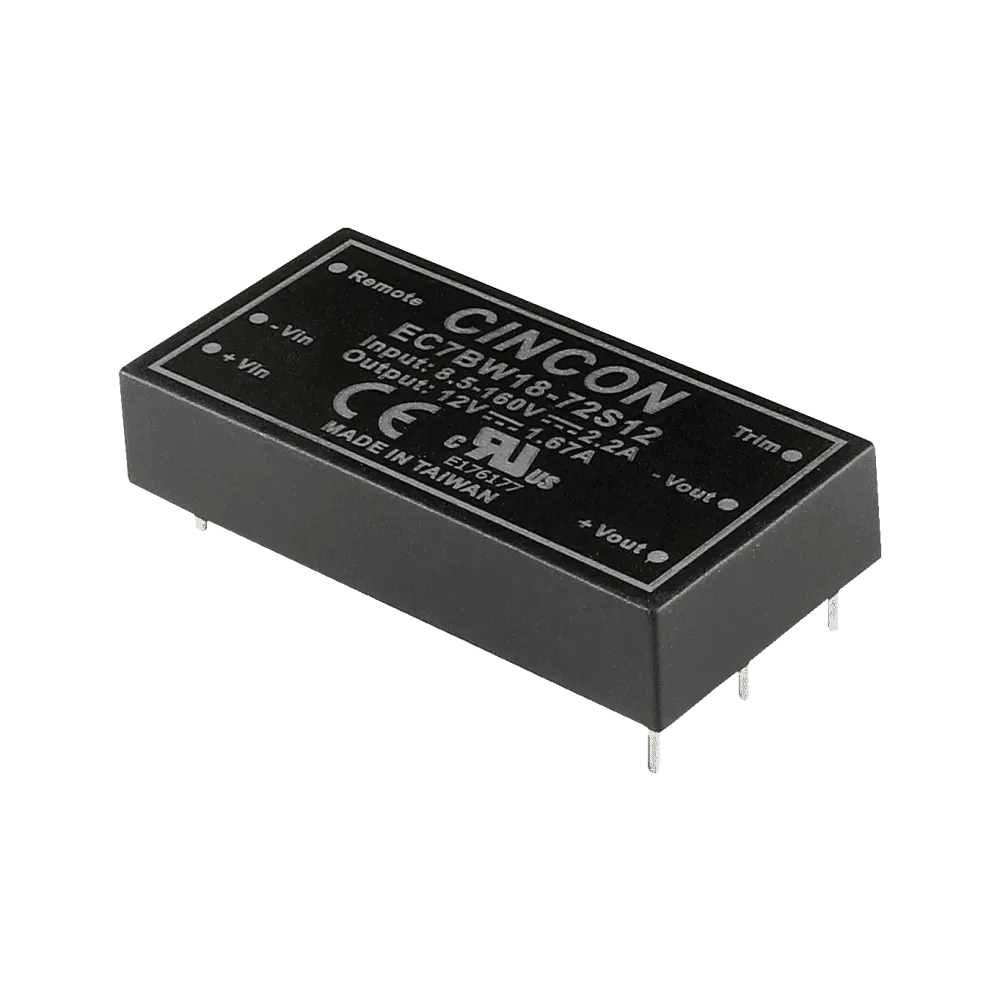

20W DC/DC converter, input 43..160V, output 12V/1.67A
Technical data
- 20Watt isolated output
- Efficiency 90%
- Fixed switching frequency
- 18:1 Input voltage ratio
- Regulated outputs
- Remote ON/OFF
- Deeper No load power consumption
- Protective circuits: Overcurrent/overvoltage/short circuit/overtemperature/undervoltage
- 2''x1''x0.4'', corresponds to industry standard
- CB Test Certificate IEC62368-1
- Fire & smoke complies with EN45545-2
- Shock & Vibration complies with EN50155 (EN61373)
- UL62368-1 2nd Reinforced Insulation approval
- Operational use 5000m.a.s.l.
- 2-year guarantee
- Manufacturer Cincon
Product specifications
| Output voltage (VDC) | 12 V |
| I/O isolation | 3000 VDC |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Output current | 1670 mA |
| Height | 10.2 mm |
| Nominal input voltage (VDC) | 48-110 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Length | 50.8 mm |
| Width | 25.4 mm |
| Application | ITE/AV |
| Power | 20 W |
| Manufacturer | Cincon |
| Design | 2×1 inch |
