About the product

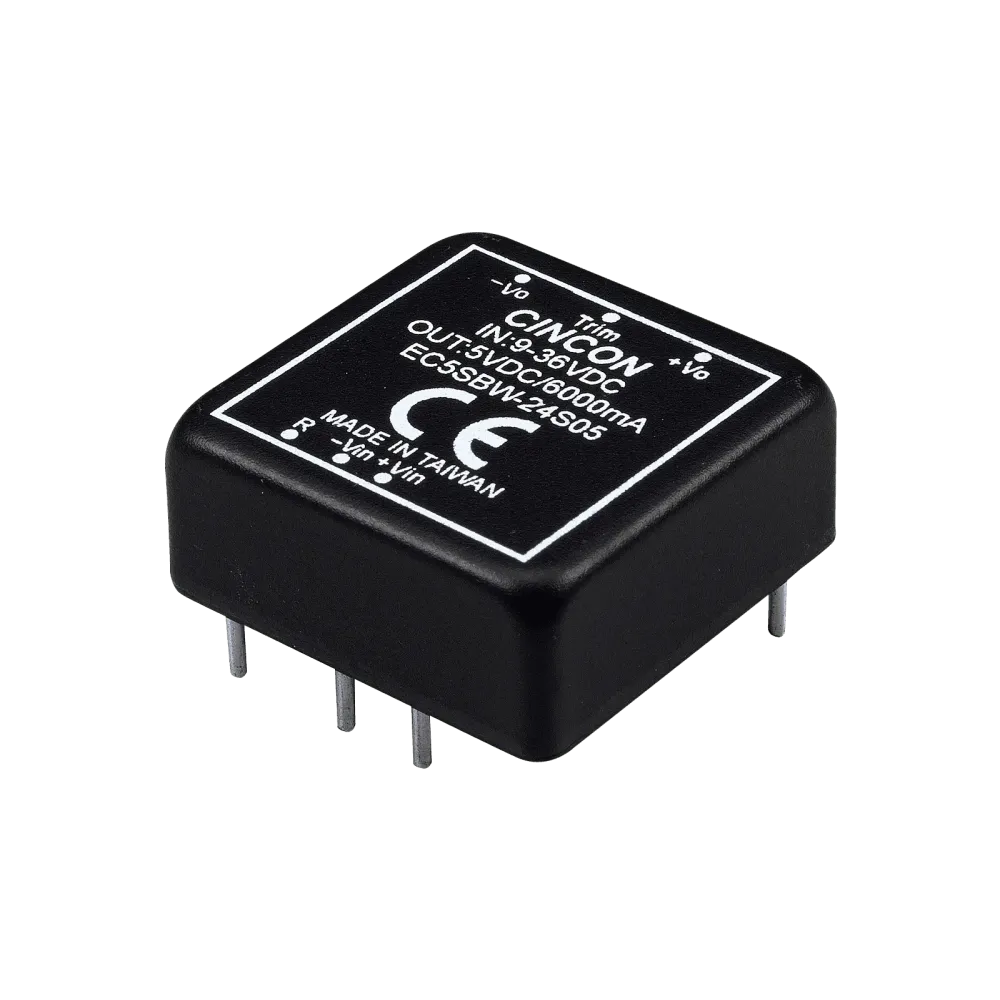

EC5SBW is an isolated 1 x 1 inch 30W DC-DC converter with a 4:1 input range from 9 VDC to 36 VDC and from 18 VDC to 75 VDC. The series is suitable for various industrial and telecommunication applications such as distributed power architectures, measurement devices, routers, industrial PCs, industrial automation devices, signal control systems, navigation systems, antenna power supplies, e-bike systems and other industrial applications.
The available output voltages are 3.3 VDC, 5 VDC, 12 VDC, 15 VDC, ±12 VDC and ±15 VDC. In addition, the series can be operated in an ambient temperature range of -40°C to 85°C and the housing temperature is up to 105°C. The efficiency is up to 90 %.
Technical data
- 30W isolated outputs
- Shielded metal housing
- Efficiency 90%
- Low no-load current consumption
- 4:1 Entrance area
- Regulated outputs
- Protective circuit: Input undervoltage/overcurrent/short circuit
- Remote On/Off
- Safety standard UL62368-1, IEC62368-1
- Dimensions 25.4 x 25.4 x 10.2mm (L x W x H)
- 3-year guarantee
- Manufacturer Cincon
Product specifications
| Manufacturer | Cincon |
| Additional functions | Remote ON/OFF, Voltage Trim |
| I/O isolation | 1500 VDC |
| Height | 11.7 mm |
| Nominal input voltage (VDC) | 24-72 V |
| Output current | 6000 mA |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Length | 25.4 mm |
| Width | 25.4 mm |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Power | 30 W |
| Design | 1×1 inch |
