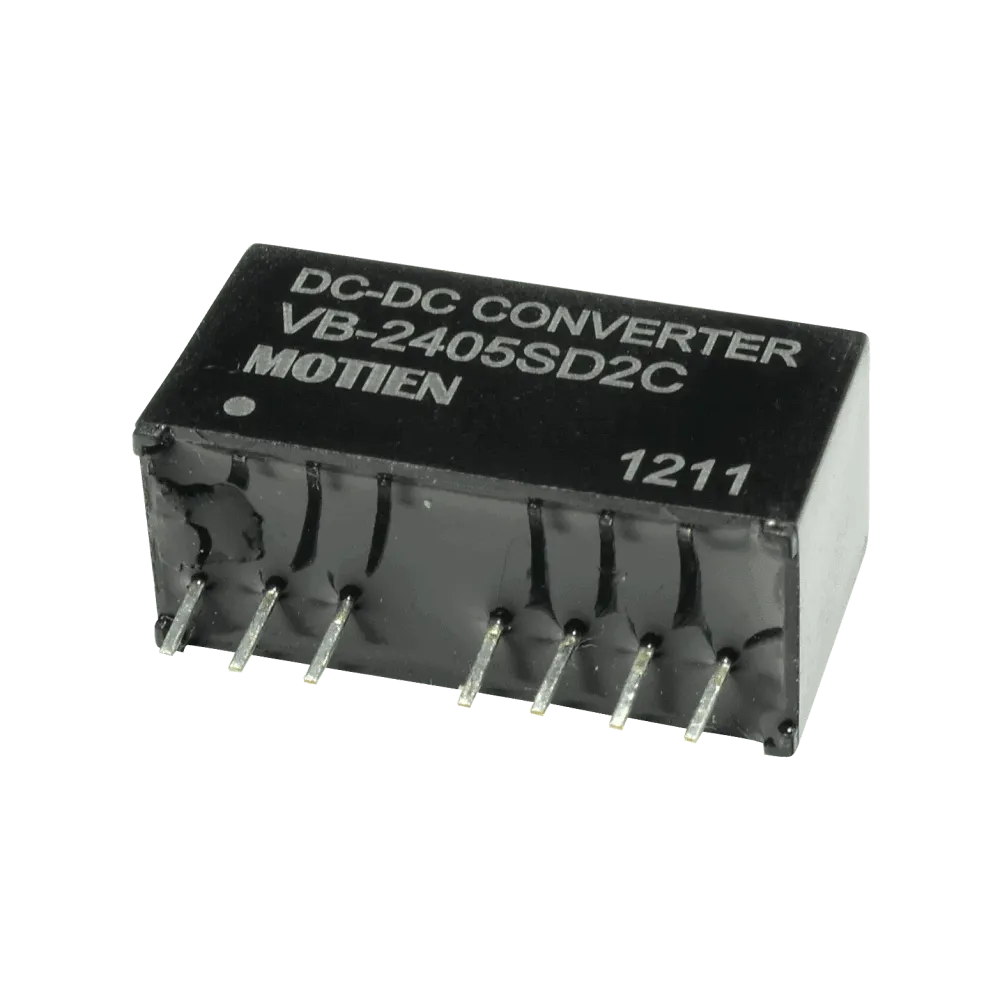

2W DC/DC converter, input 18..36V, output +/-5V / +/-0.2A
Technical data
- 8 pin SIL housing, SMD switching technology
- 2:1 Entrance area
- 1000Vdc insulation
- Permanently short-circuit proof
- Efficiency up to 80%
- Operating temperature range -40°C to +85°C
- Standard plastic housing black
- 8 Pin SIL Dimension 21.85 x 9.2 x 11.1mm (L x W x H)
- 3-year guarantee
- Manufacturer Motien
Product specifications
| Application | ITE/AV |
| Additional functions | Remote ON/OFF |
| Manufacturer | Motes |
| I/O isolation | 1000 VDC |
| Output current | 200000 mA |
| Height | 11.1 mm |
| Width | 9.2 mm |
| Length | 21.85 mm |
| Output voltage (VDC) | 5 V |
| Nominal input voltage (VDC) | 24 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Power | 2 W |
| Design | SIP8 |
