About the product

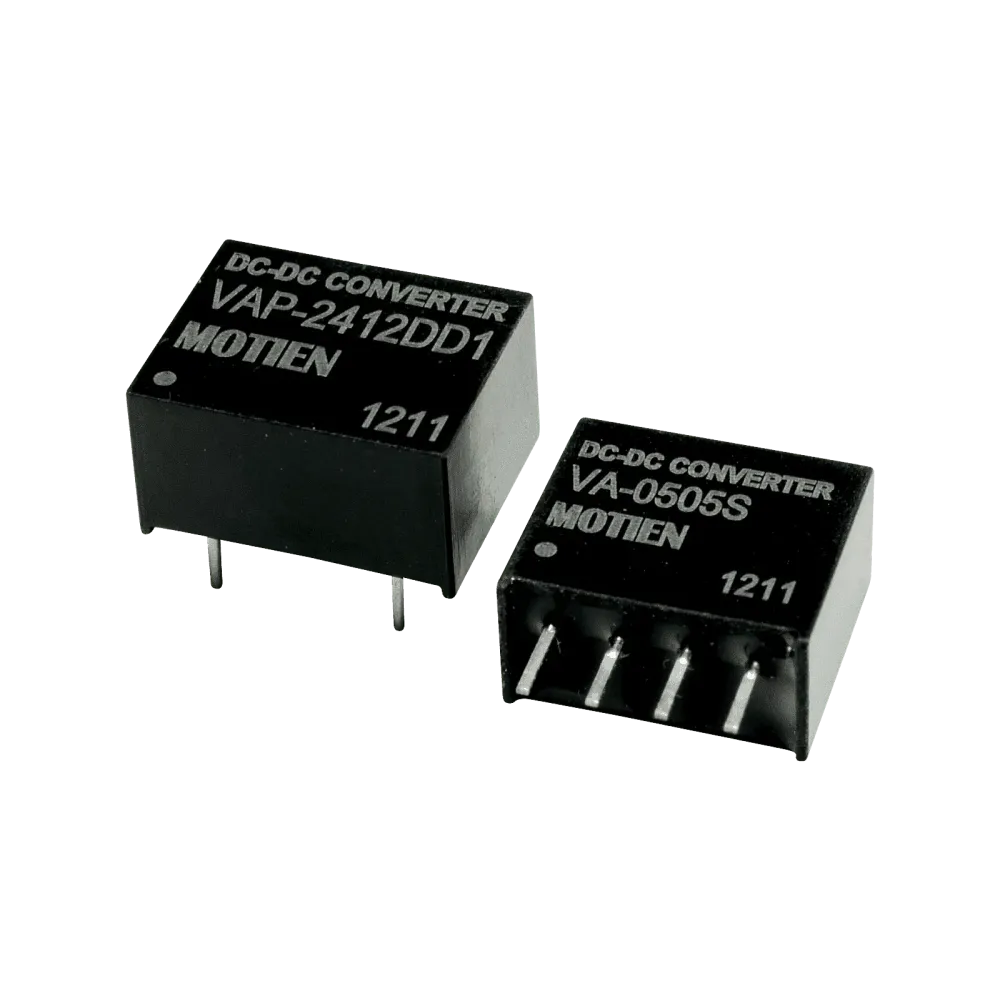

1W DC/DC converter, input 3.3V, output 12V/0.1A
Technical data
- 4 pin SIL housing
- 1000Vdc insulation
- Efficiency up to 83%
- Small ripple and noise
- Plastic housing non-conductive
- Operating temperature range from -40°C to +85°C
- EMI complies with EN55022 Class B
- 4 pin SIL Dimensions 11.68 x 6 x 10.15mm (L x W x H)
- 8 pin DIL Dimensions 12.7 x 10.16 x 6.85mm (L x W x H)
- 3-year guarantee
- Manufacturer Motien
Option: Suffix "H" = 3000Vdc insulation
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer | Motes |
| I/O isolation | 1000 VDC |
| Height | 9.65 mm |
| Length | 11.68 mm |
| Nominal input voltage (VDC) | 3.3 V |
| Output current | 100000 mA |
| Width | 6 mm |
| Regulation | Unregulated |
| Input voltage ratio | +/-10 % |
| Power | 1 W |
| Application | ITE/AV |
| Design | SIP4 |
