About the product

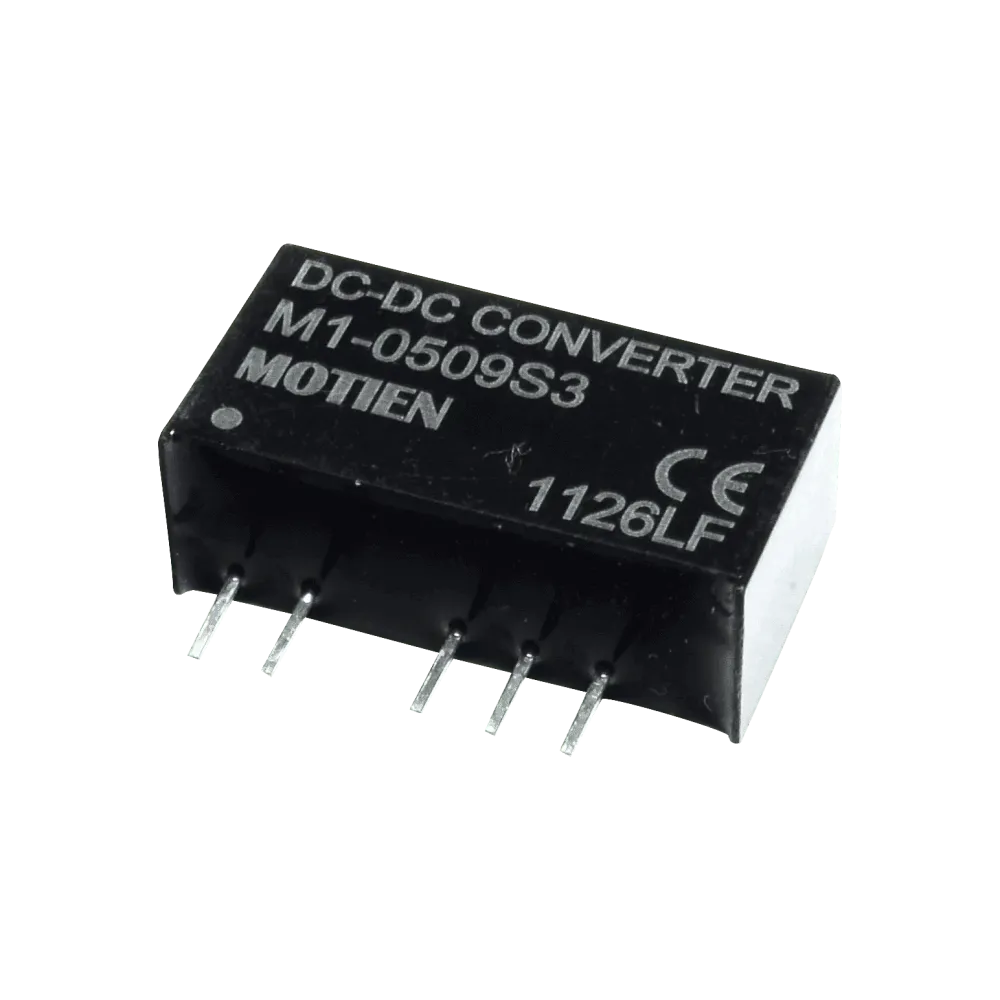

3W DC/DC converter, input 12V, output 9V/0.333A
Technical data
- 7 pin SIL housing
- Partially regulated output
- 1000Vdc insulation
- Small ripple and noise
- Efficiency up to 90%
- Operating temperature range -40°C to +85°C
- Black plastic housing non-conductive
- Dimension 21.85 x 9.2 x 11.1mm (L x W x H)
- 3-year guarantee
- Manufacturer Motien
Option: Suffix "H" = 3000Vdc insulation
Product specifications
| Width | 7.5 mm |
| Manufacturer | Motes |
| I/O isolation | 1000 VDC |
| Height | 9.5 mm |
| Output current | 333 mA |
| Nominal input voltage (VDC) | 12 V |
| Regulation | Regulated |
| Length | 19.5 mm |
| Input voltage ratio | +/-10 % |
| Output voltage (VDC) | 9 V |
| Application | ITE/AV |
| Power | 3 W |
| Design | SIP7 |
