About the product

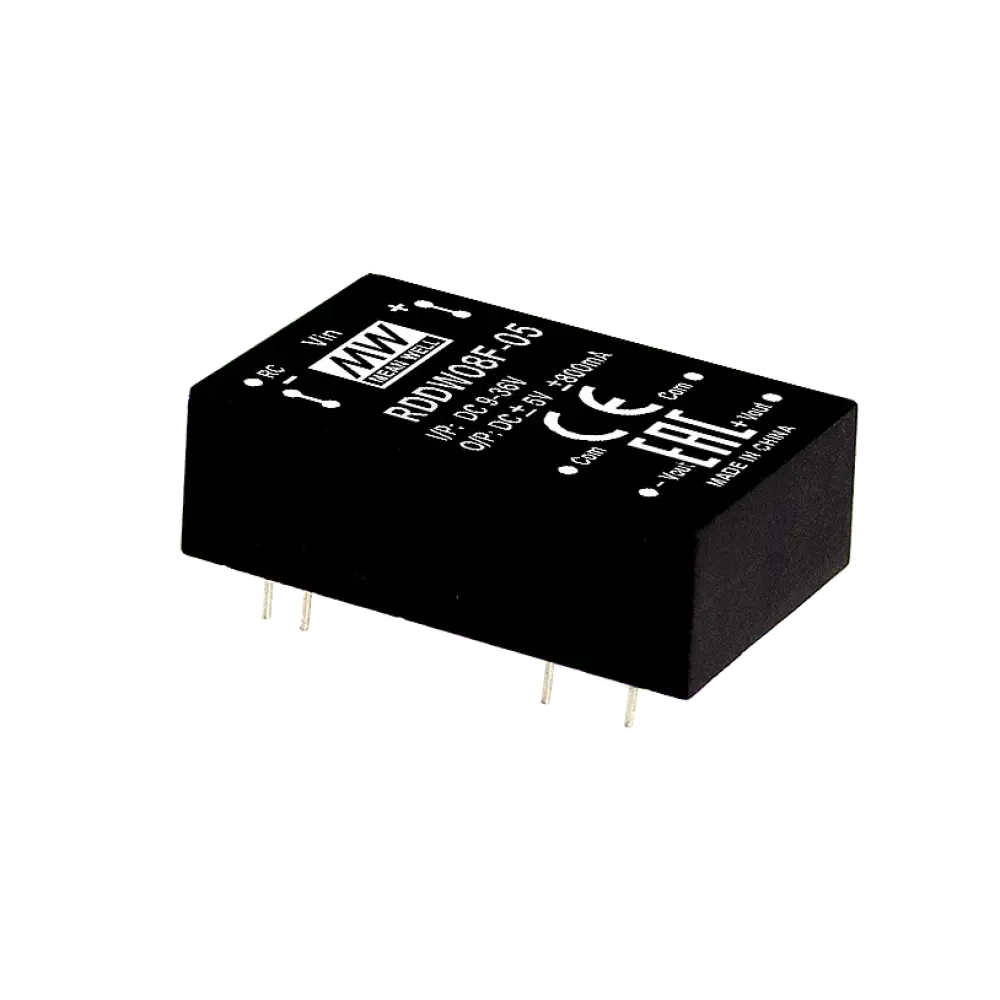

8W DC/DC converter, input 9..36V, output +/-5V / +/-0.8A
Technical data
- 8 pin SIL housing, SMD switching technology
- Next 4:1 Entrance area
- 1600Vdc insulation
- Permanently short-circuit proof
- Efficiency up to 82%
- Operating temperature range -40°C to +85°C
- Remote On/Off
- Dimension 21.85 x 9.2 x 11.1mm (L x W x H)
- 3-year guarantee
- Manufacturer Motien
Product specifications
| Manufacturer | MEAN WELL |
| Additional functions | Remote ON/OFF |
| Design | DIP24 |
| I/O isolation | 1500 VDC |
| Output current | 800 mA |
| Height | 10.2 mm |
| Width | 20.3 mm |
| Length | 31.8 mm |
| Nominal input voltage (VDC) | 12-24 V |
| Output voltage (VDC) | 5 V |
| Regulation | Regulated |
| Input voltage ratio | N/A |
| Power | 8 W |
| Application | Railroad, ITE/AV |
