About the product

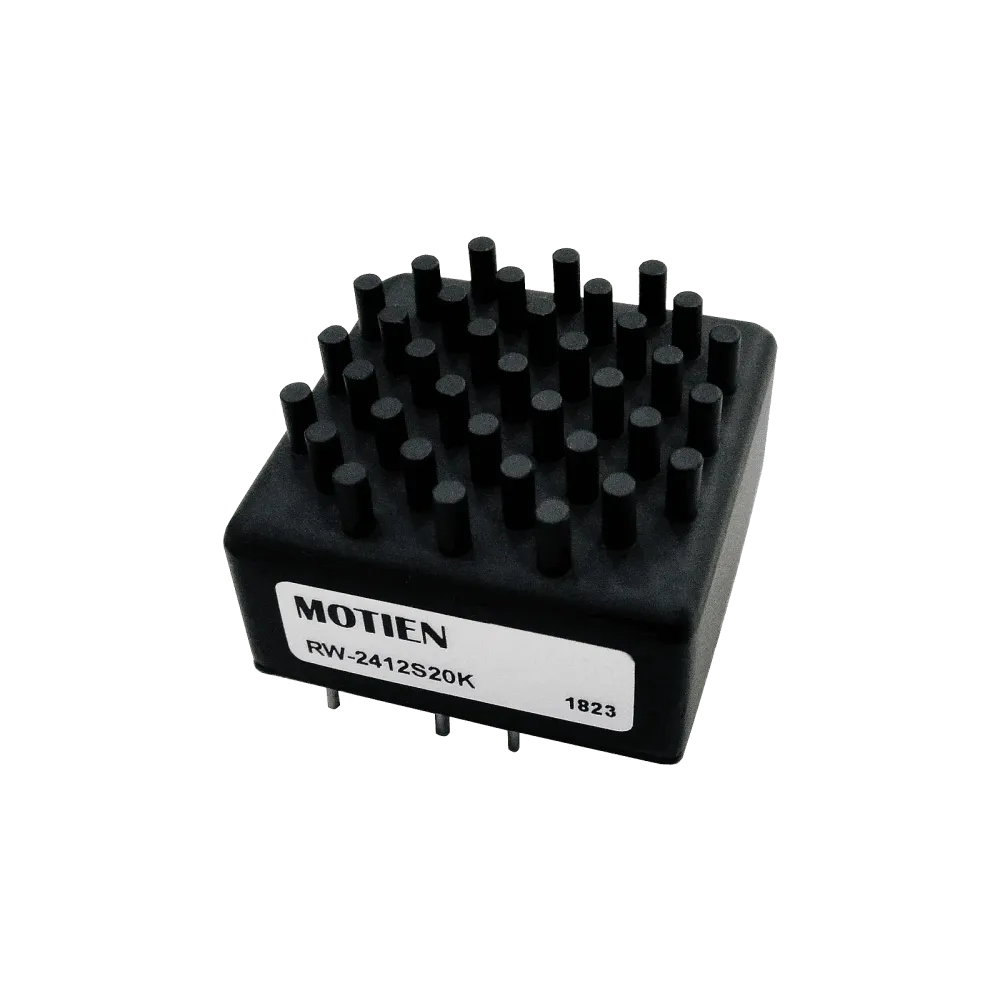

25W DC/DC converter, input 16..160V, output 12V/2.08A
Technical data
- Very wide input voltage range
- Efficiency up to 85
- 3000Vdc insulation
- -40°.+100°C Operating temperature range
- Adjustable output voltage
- Protective circuits: Undervoltage/short circuit/overcurrent/overvoltage/overtemperature
- Remote On/Off Control (CTRL)
- Complies with EN50155 approval for railroad applications
- 3-year guarantee
- Manufacturer Motien
Product specifications
| Power | 25 W |
| Application | Railroad, ITE/AV |
| I/O isolation | 3000 VDC |
| Manufacturer | Motes |
| Additional functions | Remote ON/OFF, Voltage Trim |
| Output current | 2008 mA |
| Height | 16.4 mm |
| Length | 27.6 mm |
| Nominal input voltage (VDC) | 24-110 V |
| Input voltage ratio | N/A |
| Regulation | Regulated |
| Width | 27.6 mm |
| Output voltage (VDC) | 12 V |
| Design | 1.09×1.09 inch |
