About the product

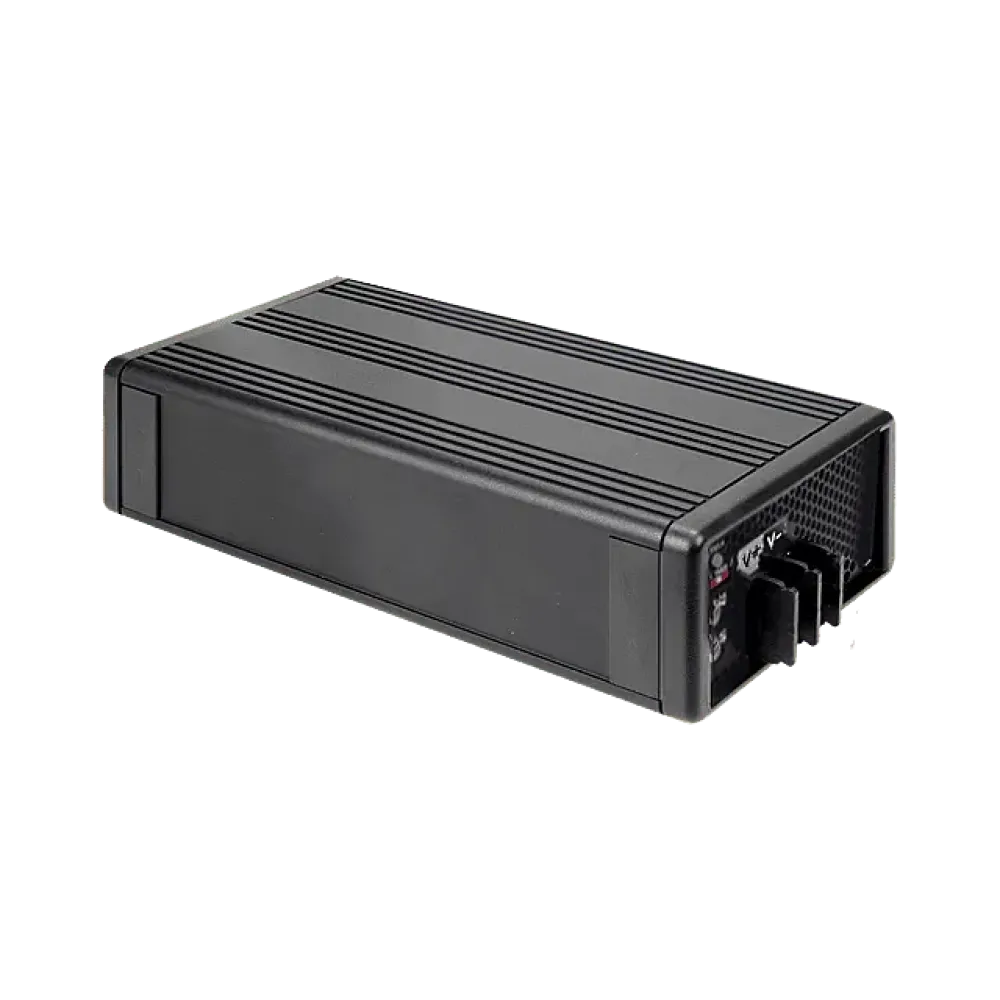

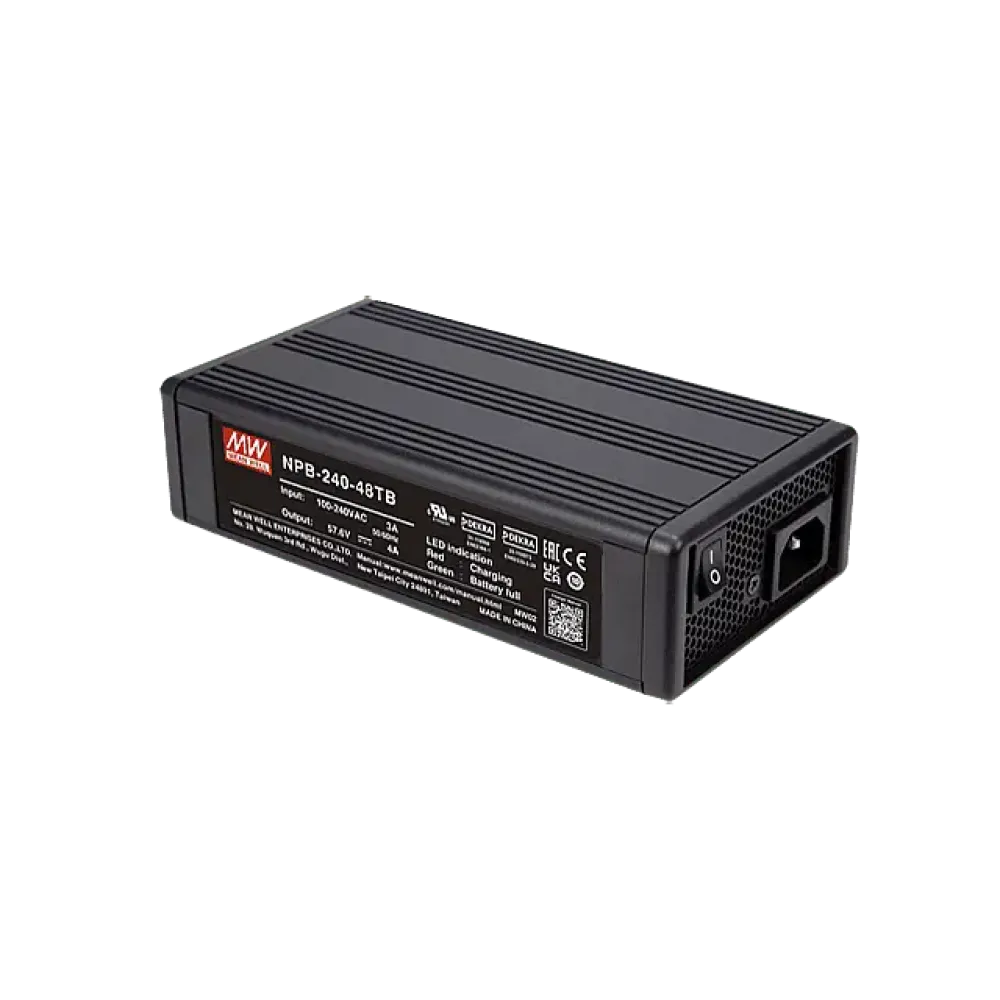

NPB-240-48 is a battery charger for lead-acid or lithium-ion batteries. The charging curve for 2-stage (Li-ion) or 3-stage (lead-acid) characteristics can be selected using a DIP switch. The charging current and charging voltage can be adjusted to the respective battery using potentiometers on the device. Variant with screw terminal block.
Technical data
- Charger for lead batteries and Li-ion batteries
- Input voltage 90 to 264Vac
- Adjustable charging current and charging voltage.
- 2- or 3-stage charging characteristic selectable via DIP switch.
- Reverse polarity protected
- Fanless design, convection cooled
- Operating temperature range from -30°C to +70°C
- Dimensions 180 x 96 x 49mm (L x W x H)
- 3-year guarantee
- Manufacturer Mean Well
Product specifications
| Power | 240 W |
| Battery voltage (VDC) | 48 V |
| Charging current | 4 mA |
| Product series | NPB |
