About the product

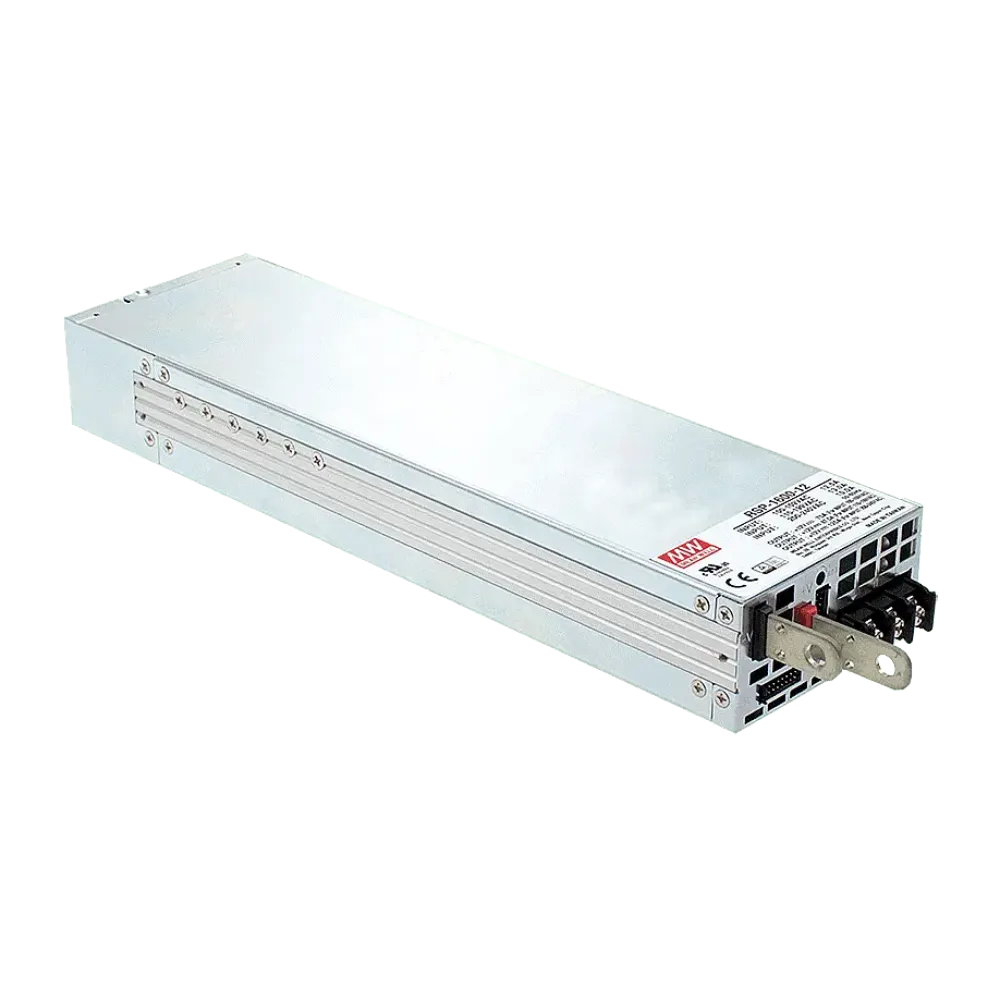

RPB-1600-48 is an intelligent charger for charging lead-acid and lithium-ion batteries. The charging curves can be adjusted and status data read out via the PMBus communication interface. With the Smart Battery Programmer SBP-001, the charging curves can be configured with simple software and stored in the charger.
Technical data
- Charger for lead-acid and Li Ion batteries
- I2C interface, PMBus protocol
- Input voltage 90 to 264Vac, with active PFC
- Three-stage charging characteristic
- Programming of the output voltage and charging current possible
- Built-in OR-ing FET
- Active current sharing up to 4800W (2+1)
- Auxiliary circuits 5V/0.3A and 12V/0.8A
- Air cooling with integrated DC fan
- Operating temperature range from -30°C to +70°C
- Dimensions 300 x 85 x 41mm (L x W x H)
Product specifications
| Battery voltage (VDC) | 48 V |
| Power | 1600 W |
| Product series | RCB |
| Charging current | 27.5 A |
| Control | PMbus, Smart Charger Programmer |
