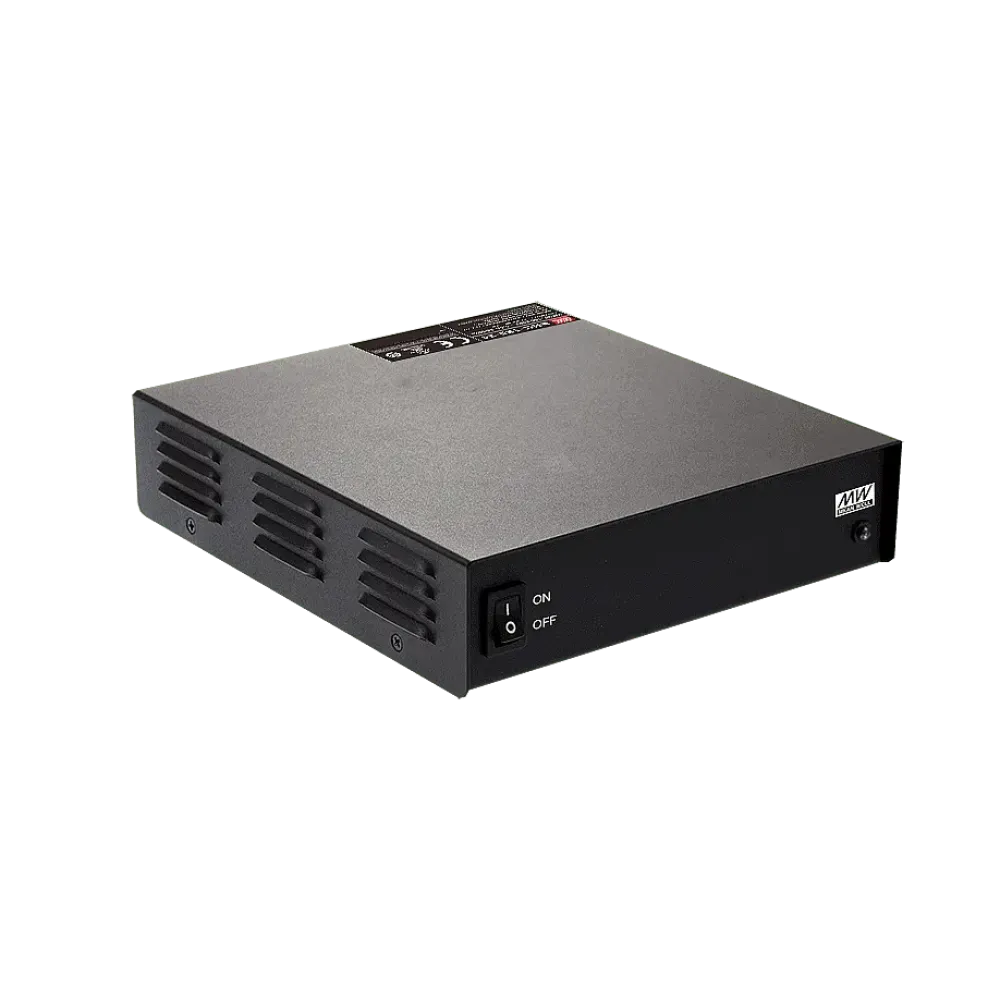

230W charger for 12V lead-acid and LI-ION batteries

ENC-240 is a 230W battery charger with 3-stage charging characteristics. The charging curve for lead batteries, gel batteries and AGM batteries can be set using a DIP switch. For use with Li-ion batteries, the charging curve can be set to the battery pack used using simple software. The SBP-001 programming interface is required for this.

Technical data

• Charger for lead-acid batteries (switchable for gel and AGM batteries) and Li-ion batteries
• Input voltage switchable 90 to 264Vac
• Programmable three-stage charging characteristic (SBP-001 required)
• Reverse polarity protected
• Temperature compensation function
• Fanless design, convection cooled
• Operating temperature range from -30°C to +70°C
• Dimensions 192 x 178 x 45.5mm (L x W x H)
