About the product

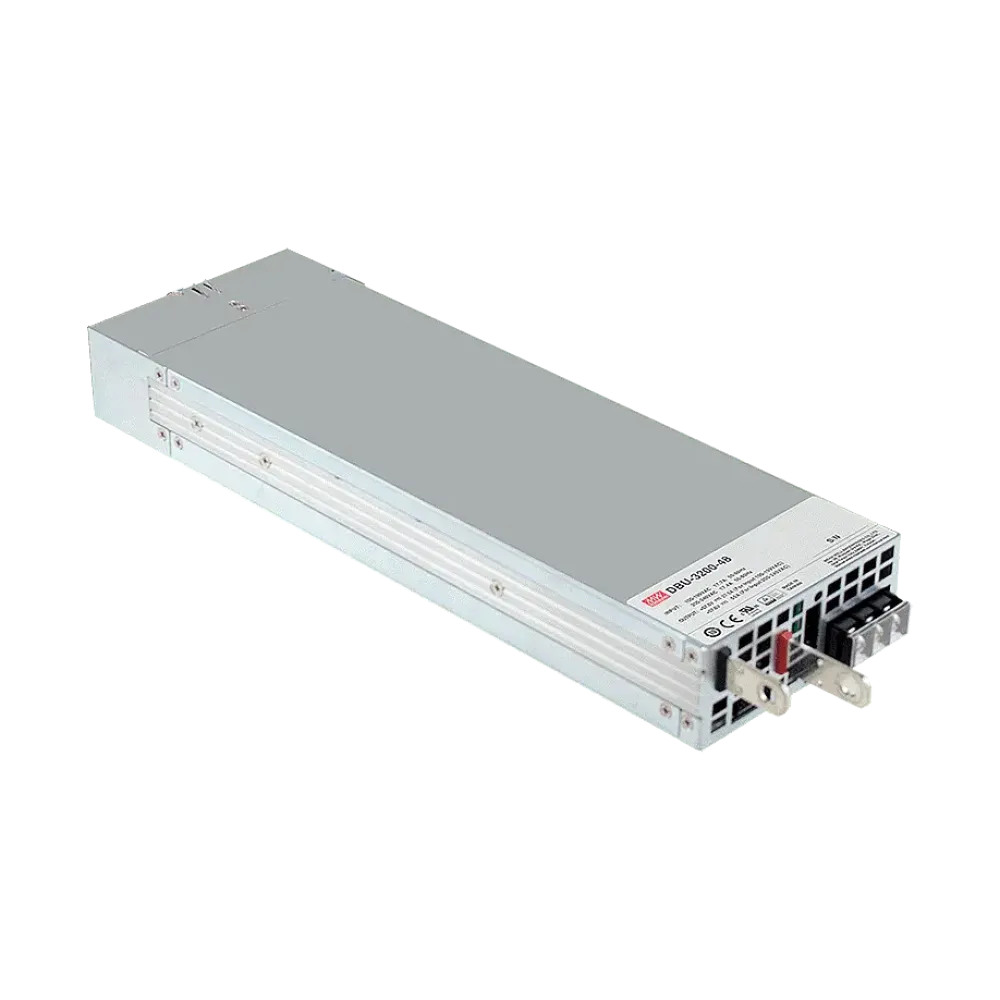

DBU-3200 is an intelligent charger for charging lead-acid and lithium-ion batteries. The charging curves can be adjusted and status data read out via the PMBus communication interface. With the Smart Battery Programmer SBP-001, the charging curves can be configured with simple software and stored in the charger.
Technical data
- Charger for lead-acid and Li Ion batteries
- I2C interface, PMBus protocol
- Input voltage 90 to 264Vac, with active PFC
- Three-stage or two-stage charging characteristic
- Programming of the output voltage and charging current via PMBus or software.
- Built-in OR-ing FET
- Active current sharing up to 6400W (2+1)
- Auxiliary circuits 5V/0.3A and 12V/0.8A
- Air cooling with integrated DC fan
- Operating temperature range from -30°C to +70°C
- Dimensions 325.8 x 107 x 41mm (L x W x H)
Product specifications
| Battery voltage (VDC) | 24 V |
| Charging current | 110 A |
| Power | 3168 W |
| Control | PMbus, Smart Charger Programmer |
| Product series | DBU |
