About the product

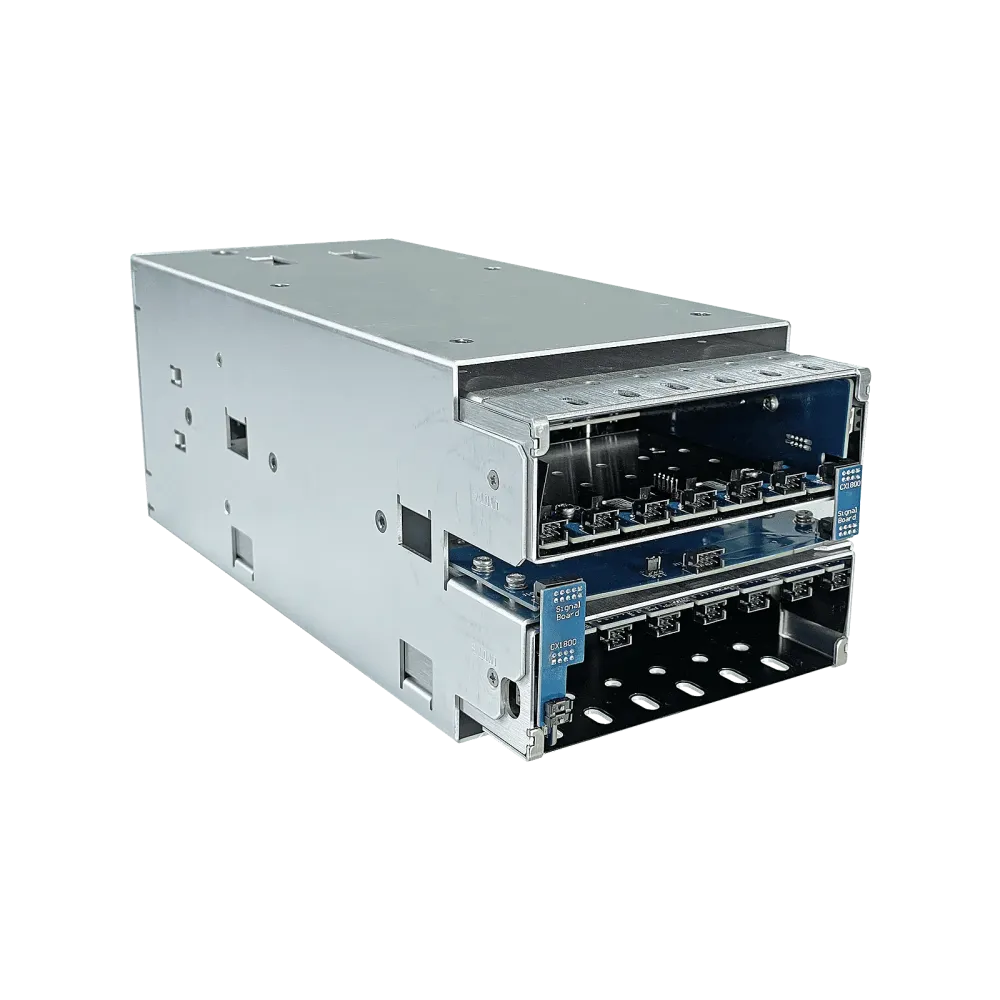

The reliable Excelsys CoolX®3000 series from Advanced Energy delivers an incredible 3000 W in a 300 x 131 x 120 mm housing. This makes it the smallest modular, configurable 3000 Watt solution on the market. With industry-leading specifications such as 91% efficiency, digital and analog PMBus™ communication and control, and a comprehensive feature set, the CoolX3000 series sets the industry standard for flexibility, reliability and efficiency.
The CoolX3000 power supply meets the latest medical safety approvals in the industry, including IEC60601-1.
DC modules
Single Output Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMA | 5 | 2.5 - 6.0 | 30 | 150 |
| CMB | 12 | 6.0 - 15.0 | 23.3 | 280 |
| CMC | 24 | 15.0 - 28.0 | 12.5 | 300 |
| CMD | 48 | 28.0 - 58.0 | 6.25 | 300 |
High Power Module (occupy 3 slots)
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CME | 24 | 22.8 - 25.2 | 37.5 | 900 |
| CMF | 48 | 45.6 - 50.4 | 18.75 | 900 |
Dual Output Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMG V1 | 24 | 3.0 - 30.0 | 4.0 | 120 |
| V2 | 24 | 3.0 - 30.0 | 4.0 | 120 |
| CMH V1 | 5 | 3.0 - 6.0 | 10.0 | 60 |
| V2 | 24 | 3.0 - 30.0 | 4.0 | 120 |
Wide Trim Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMA-W01 | 5 | 1.0 - 6.0 | 30 | 150 |
| CMB-W01 | 12 | 1.0 - 15.0 | 23.3 | 280 |
| CMC-W01 | 24 | 1.0 - 28.0 | 12.5 | 300 |
| CMD-W01 | 48 | 3.0 - 58.0 | 6.25 | 300 |
High-voltage module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMK | 200 | 175 - 205 | 1.0 | 200 |
Technical data
- High power density: 3000 W in a housing measuring 300 x 131 x 120 mm
- Intelligent digital performance: maximum flexibility through analog and digital control
- Increased functionality: Ideal for end-user devices that require higher performance and have the ability to increase the number of outputs
- PMBus™ digital communication and control
- 23.5 W Auxiliary current output
- Operation at an altitude of 5000 m
Product specifications
| Product | Power chassis |
| Product series | CoolX |
| Power | 3000 W |
| Length | 325 mm |
| Width | 131 mm |
| Height | 120 mm |
| Application | Industry |
| Control | Analog, PMbus |
