About the product

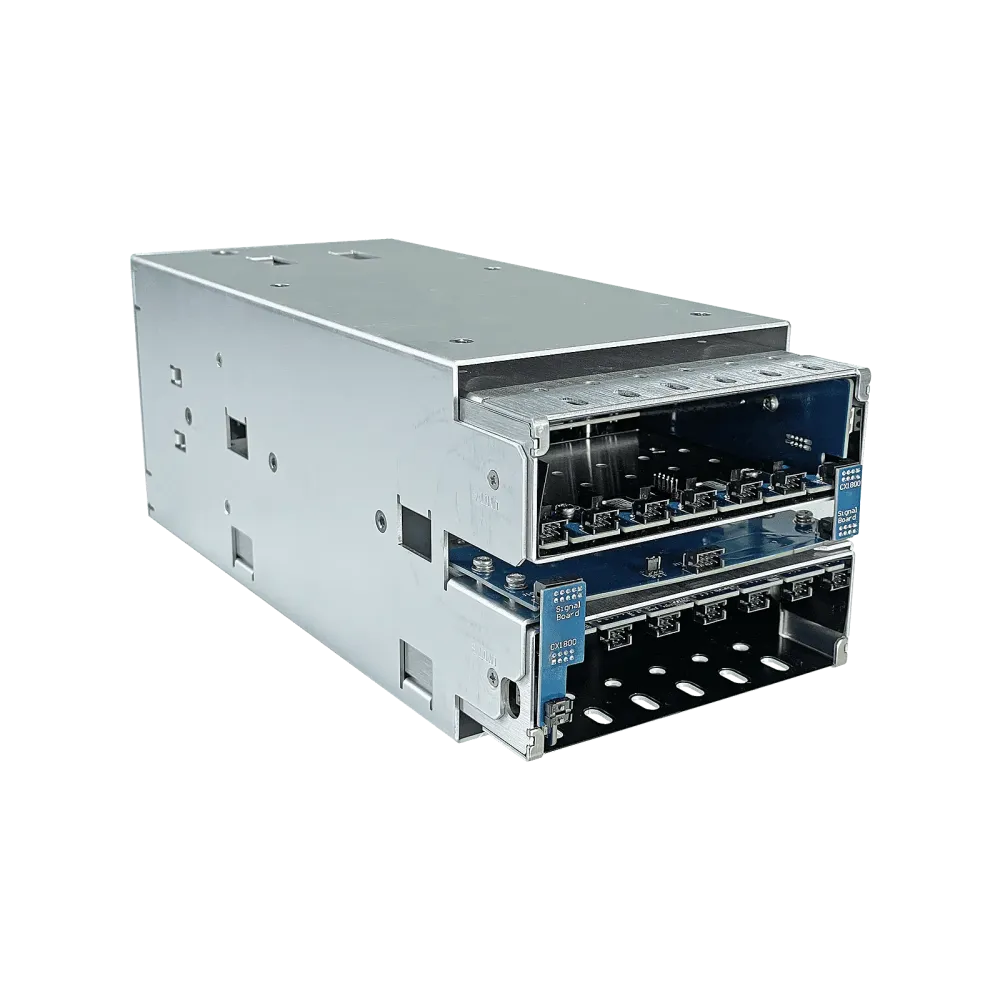

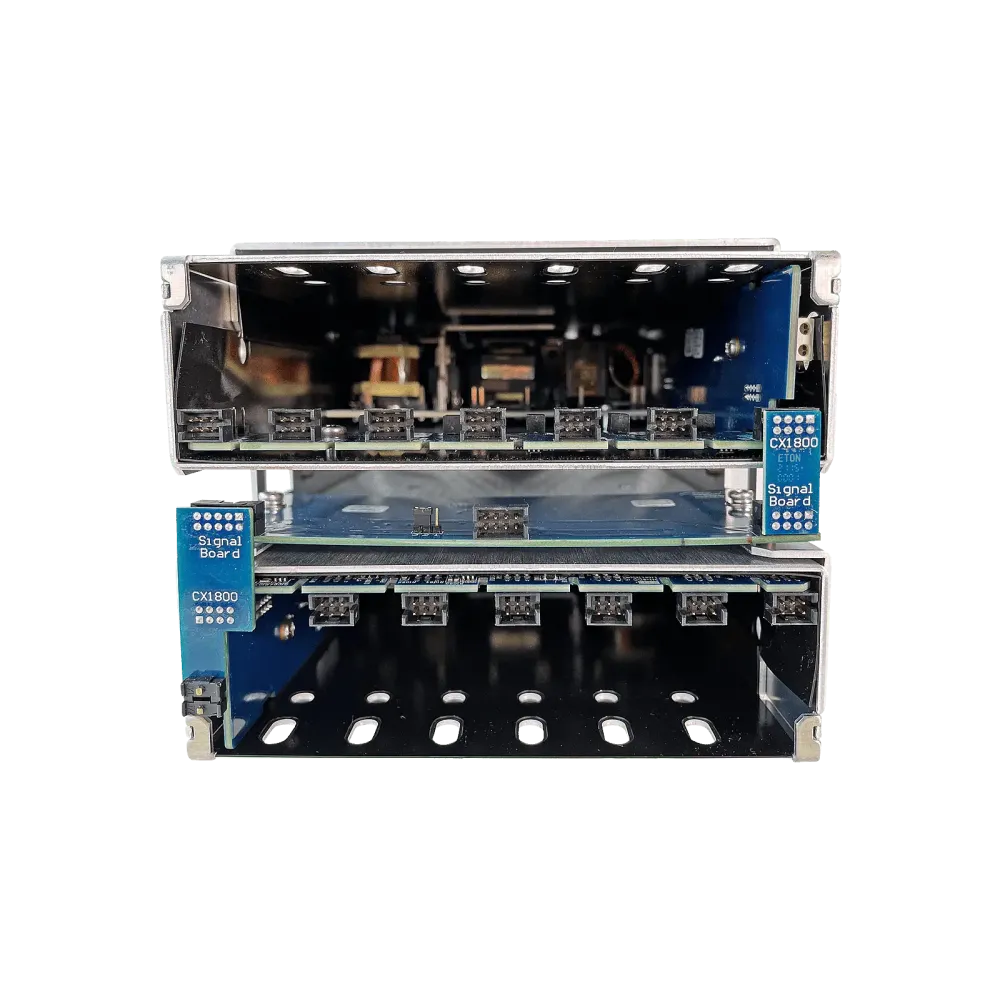

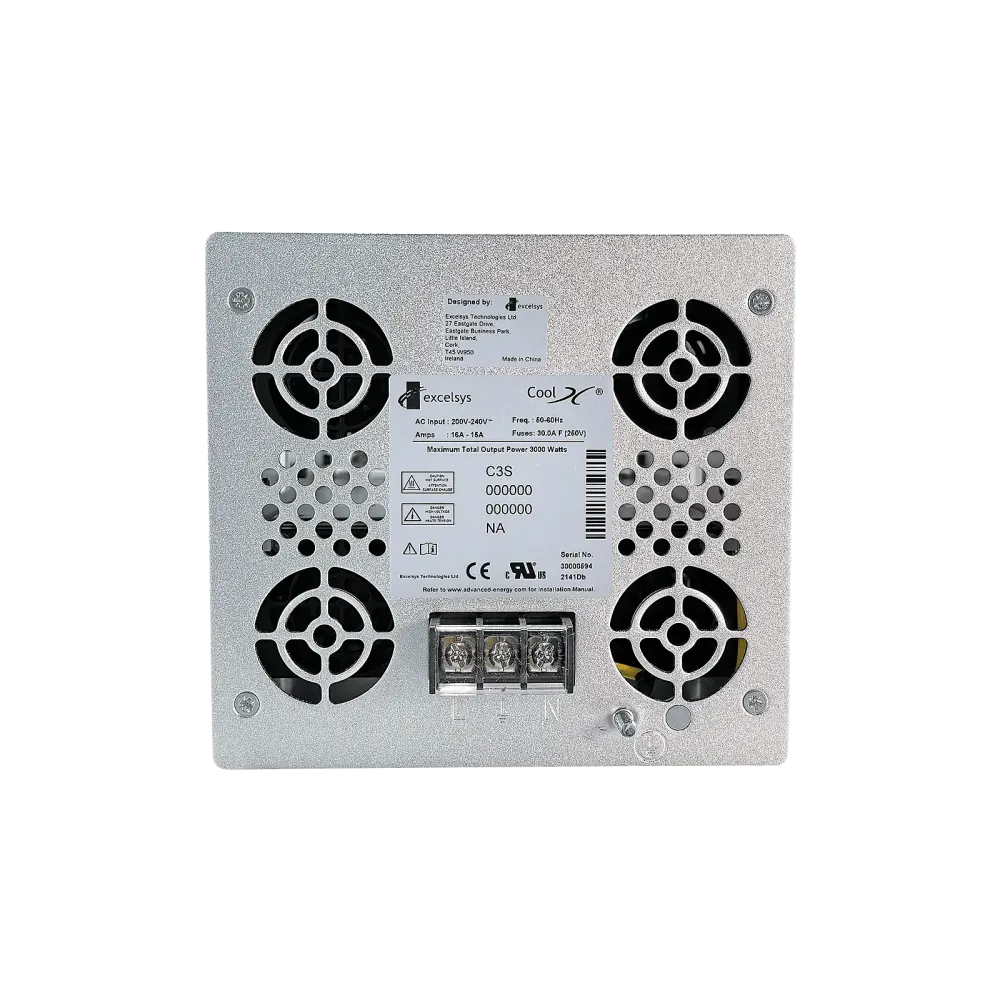

The reliable Excelsys CoolX®3000 series from Advanced Energy delivers an incredible 3000 W in a 300 x 131 x 120 mm housing. This makes it the smallest modular, configurable 3000 Watt solution on the market. With industry-leading specifications such as 91% efficiency, digital and analog PMBus™ communication and control, and a comprehensive feature set, the CoolX3000 series sets the industry standard for flexibility, reliability and efficiency.
The CoolX3000 power supply meets the latest industrial safety approvals in the industry, including IEC62638.
DC modules
Single Output Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMA | 5 | 2.5 - 6.0 | 30 | 150 |
| CMB | 12 | 6.0 - 15.0 | 23.3 | 280 |
| CMC | 24 | 15.0 - 28.0 | 12.5 | 300 |
| CMD | 48 | 28.0 - 58.0 | 6.25 | 300 |
High Power Module (occupy 3 slots)
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CME | 24 | 22.8 - 25.2 | 37.5 | 900 |
| CMF | 48 | 45.6 - 50.4 | 18.75 | 900 |
Dual Output Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMG V1 | 24 | 3.0 - 30.0 | 4.0 | 120 |
| V2 | 24 | 3.0 - 30.0 | 4.0 | 120 |
| CMH V1 | 5 | 3.0 - 6.0 | 10.0 | 60 |
| V2 | 24 | 3.0 - 30.0 | 4.0 | 120 |
Wide Trim Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMA-W01 | 5 | 1.0 - 6.0 | 30 | 150 |
| CMB-W01 | 12 | 1.0 - 15.0 | 23.3 | 280 |
| CMC-W01 | 24 | 1.0 - 28.0 | 12.5 | 300 |
| CMD-W01 | 48 | 3.0 - 58.0 | 6.25 | 300 |
High-voltage module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMK | 200 | 175 - 205 | 1.0 | 200 |
Technical data
- High power density: 3000 W in a housing measuring 300 x 131 x 120 mm
- Intelligent digital performance: maximum flexibility through analog and digital control
- Increased functionality: Ideal for end-user devices that require higher performance and have the ability to increase the number of outputs
- PMBus™ digital communication and control
- 23.5 W Auxiliary current output
- Operation at an altitude of 5000 m
Product specifications
| Product | Power chassis |
| Product series | CoolX |
| Power | 3000 W |
| Length | 325 mm |
| Width | 131 mm |
| Height | 120 mm |
| Application | Industry |
| Control | Analog, PMbus |
