About the product

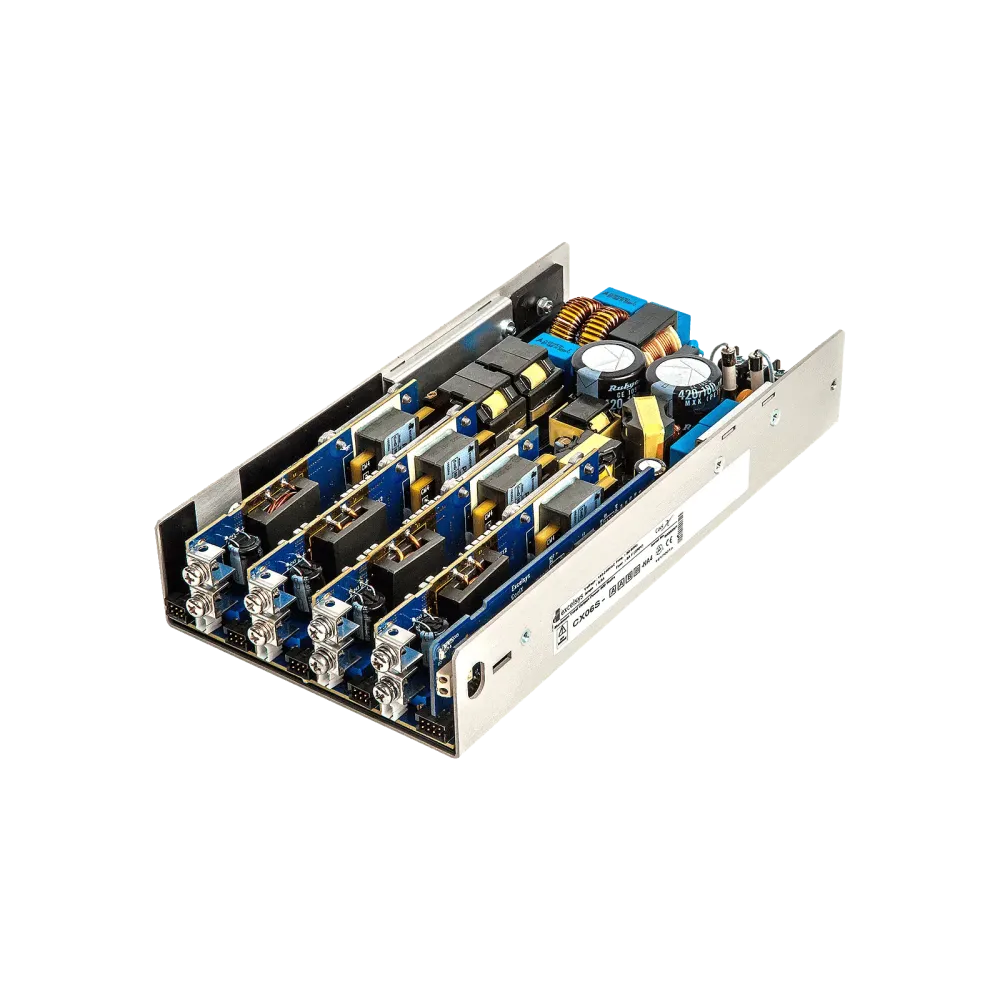

The first fanless modular power supply on the market, the revolutionary Excelsys CoolX600 series is a convection-cooled, modular power supply platform with comprehensive features and specifications. With an efficiency of 93 %, it delivers 600 W in a very compact 215.9 x 114.3 x 39.1 mm housing
CoolX600 can be equipped with four CoolMods and offers up to eight isolated DC outputs in the range from 1 to 58 V. The outputs can be connected in parallel for higher currents and in series for higher voltages (up to 232 VDC). The configuration can be carried out ex works or by the user.
Highlights
- 93% efficiency
- No fans, no noise, no vibrations
- 12V / 24W auxiliary output
- Certified up to 5000 meters altitude
- MTBF > 400,000 hours
DC modules
Single Output Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMA | 5 | 2.5 - 6.0 | 21 | 105 |
| CMB | 12 | 6.0 - 15.0 | 15 | 180 |
| CMC | 24 | 15.0 - 28.0 | 8.3 | 200 |
| CMD | 48 | 28.0 - 58.0 | 4.2 | 200 |
High Power Module (occupy 3 slots)
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CME | 24 | 22.8 - 25.2 | 25 | 550 |
| CMF | 48 | 45.6 - 50.4 | 12.5 | 550 |
Dual Output Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMG V1 | 24 | 3.0 - 30.0 | 3.0 | 90 |
| V2 | 24 | 3.0 - 30.0 | 3.0 | 90 |
| CMH V1 | 5 | 3.0 - 6.0 | 6.0 | 36 |
| V2 | 24 | 3.0 - 30.0 | 3.0 | 90 |
Wide Trim Module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMA-W01 | 5 | 1.0 - 6.0 | 21 | 105 |
| CMB-W01 | 12 | 1.0 - 15.0 | 15 | 180 |
| CMC-W01 | 24 | 1.0 - 28.0 | 8.4 | 200 |
| CMD-W01 | 48 | 3.0 - 58.0 | 4.2 | 200 |
High-voltage module
| Module | Vdc Nominal | Setting range | Imax (A) | Power (W) |
| CMK | 200 | 175 - 205 | 0.6 | 132 |
Product specifications
| Power | 600 W |
| Product | Power chassis |
| Product series | CoolX |
| Length | 215.9 mm |
| Width | 114.3 mm |
| Height | 39.1 mm |
| Application | Medical |
| Control | Analog, PMbus |
