About the product

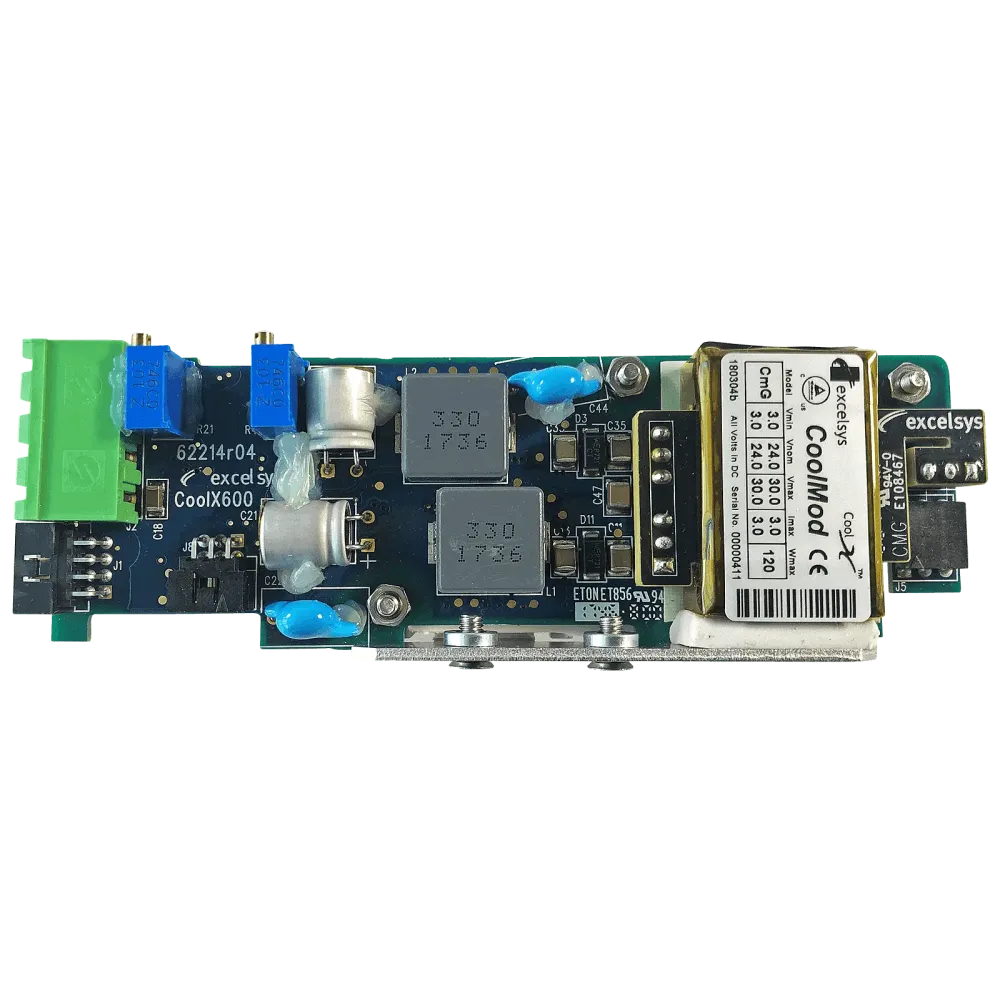

DC dual output module for the CoolX series.
Output power according to CoolX version
The maximum available power varies depending on the power chassis. The software automatically recognizes the combination of chassis and module and sets the maximum current.
| Outputs | Power chassis | Tensions | Maximum total output | Power per channel | Current per channel |
| V1 | CX06, CX10 | 3.0 to 6.0Vdc | 100W | 36W | 6A |
| V2 | 3.0 to 30.0Vdc | 90W | 3A | ||
| V1 | CX18, CX30 | 3.0 to 6.0Vdc | 180W | 60W | 10A |
| V2 | 3.0 to 30.0Vdc | 120W | 4A |
Product specifications
| Power | 180 W |
| Product | Power module |
| Product series | CoolX |
| Output voltage (VDC) | 5-24 V |
| Output current | 3-10 A |
| Control | Analog, PMbus |
| Voltage setting range | 3.0-6.0 VDC, 3.0-30.0 VDC |
