About the product

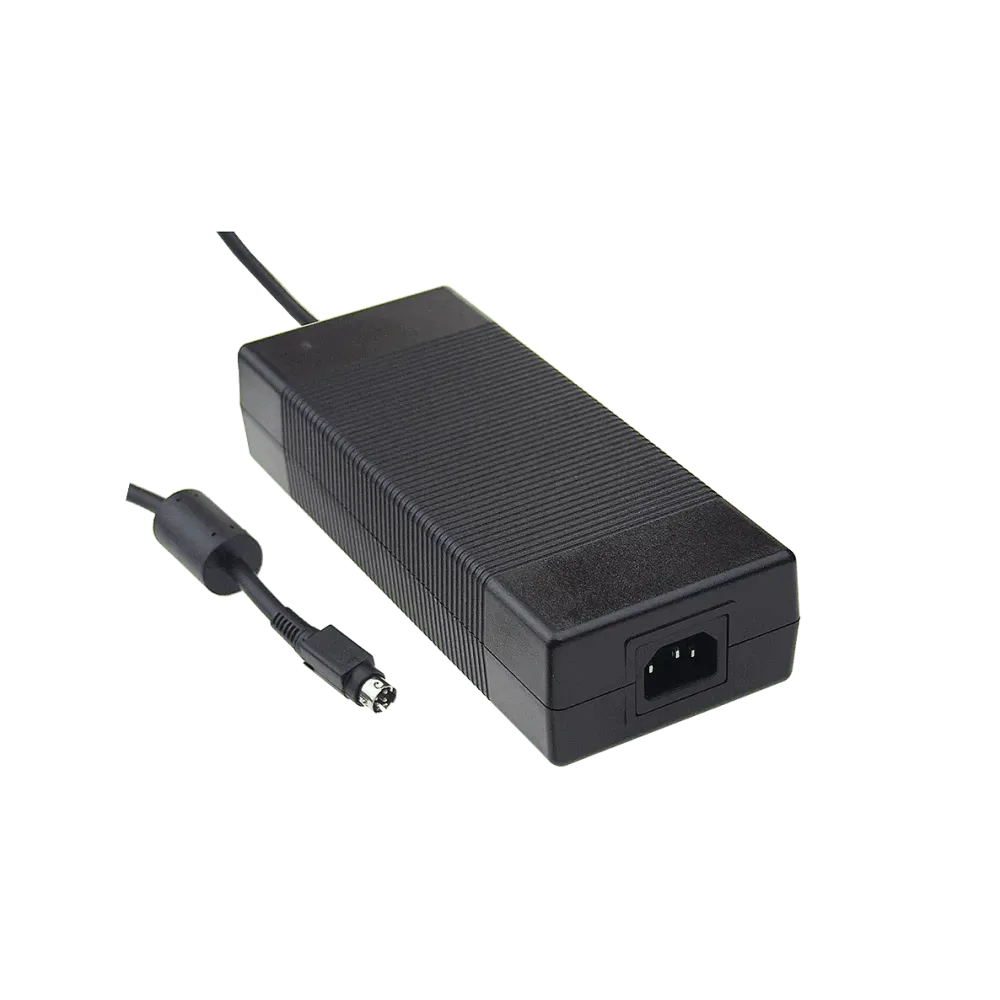

GSM220A12-R7B is a desktop power supply with medical approval. Protection class I version with protective earth.
Technical data
- Input voltage 80 to 264Vac with PFC
- Mains connection IEC320-C14 plug
- DC output Power DIN 4-pin
- Medical approval 2xMOPP level for patient contact
- Complies with the home healthcare standard ES60601-1-11
- Leakage current <100μA
- Energy efficiency level VI
- No load power consumption <0.15W
- Protection class I Device with earth connection
- Operating temperature range from -30°C to +70°C
- Dimensions 210 x 85 x 46mm (L x W x H)
- 3-year guarantee
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 12 V |
| Power | 180 W |
| Efficiency level | VI |
| Protection class | Class I |
| Application | Medical |
| DC plug | Power DIN 4P |
