About the product

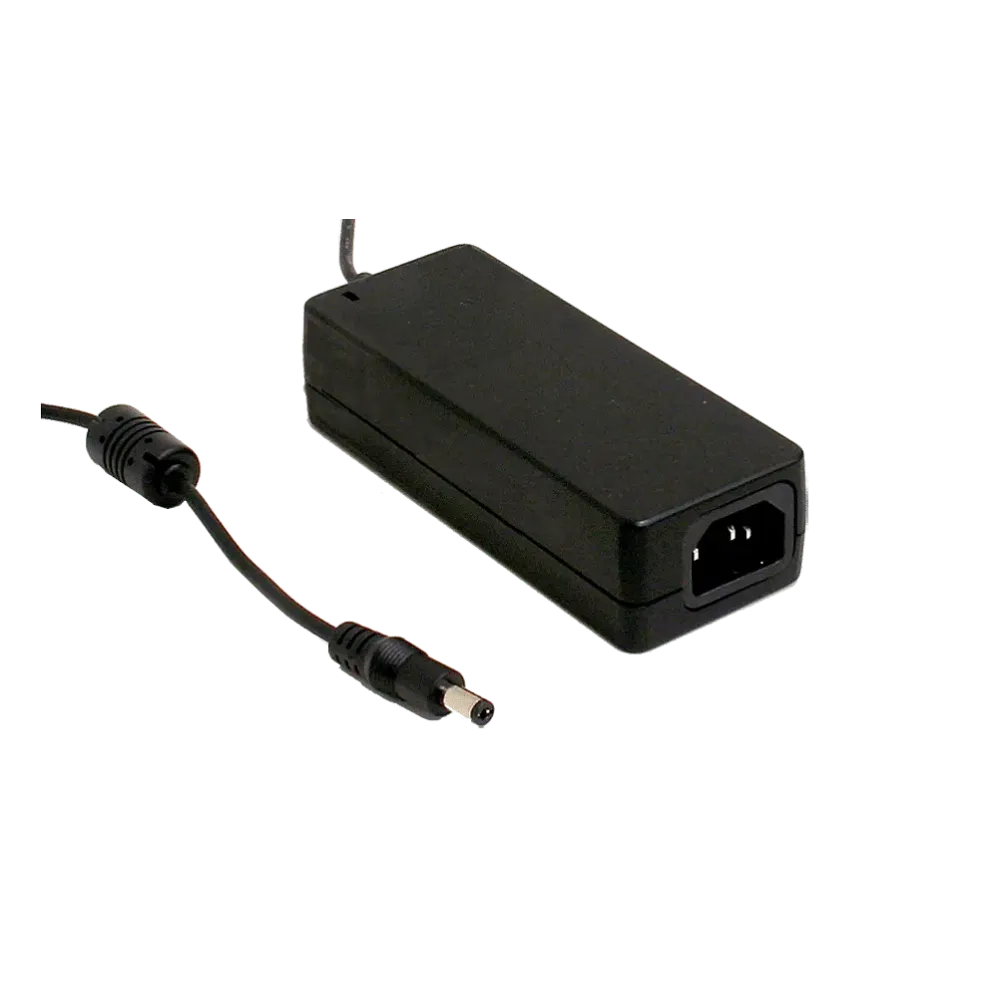

GSM40A24-P1J is a desktop power supply with medical approval. Protection class II version without protective earth.
Technical data
- Input voltage 80 to 264Vac
- Mains connection IEC320-C14 plug
- DC output with round plug 2.1 x 5.5 x 11mm
- Medical approval 2xMOPP level for patient contact
- Complies with the home healthcare standard ES60601-1-11
- Leakage current <50μA
- Energy efficiency level VI (5 to 9V versions with level V)
- No load power consumption <0.1W
- Protection class I Device with earth connection
- Operating temperature range from -30°C to +60°C
- Dimensions 125 x 50 x 31.5mm (L x W x H)
- 3-year guarantee
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 24 V |
| Power | 40 W |
| Efficiency level | VI |
| Protection class | Class I |
| Application | Medical |
| DC plug | 2.1×5.5 x 11 mm |
| Additional functions | AC protective earth connected to secondary side DC- |
