About the product

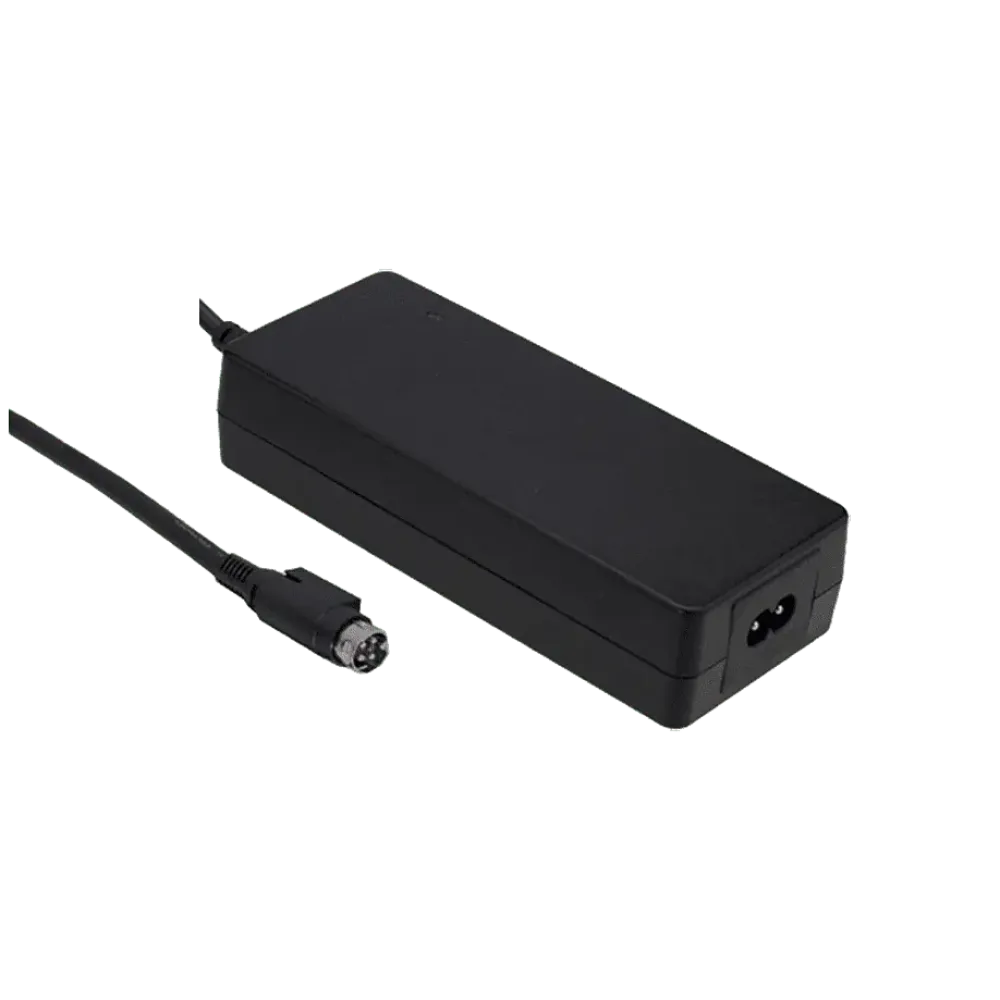

GSM120B48-R7B is a desktop power supply with medical approval. Protection class II version without protective earth.
Technical data
- Input voltage 80 to 264Vac with PFC
- Mains connection IEC320-C8
- DC output Power DIN 4-pin
- Medical approval 2xMOPP level for patient contact
- Complies with the home healthcare standard ES60601-1-11
- Leakage current <100μA
- Energy efficiency level VI
- No load power consumption <0.15W
- Protection class II Device without earth connection
- Operating temperature range from -30°C to +60°C
- Dimensions 167 x 67 x 35mm (L x W x H)
- 3-year guarantee
- Manufacturer MEAN WELL
Product specifications
| Output voltage (VDC) | 48 V |
| Power | 120 W |
| Efficiency level | VI |
| Protection class | Class II |
| Application | Home Healthcare, Medical |
| DC plug | Power DIN 4P |
