About the product

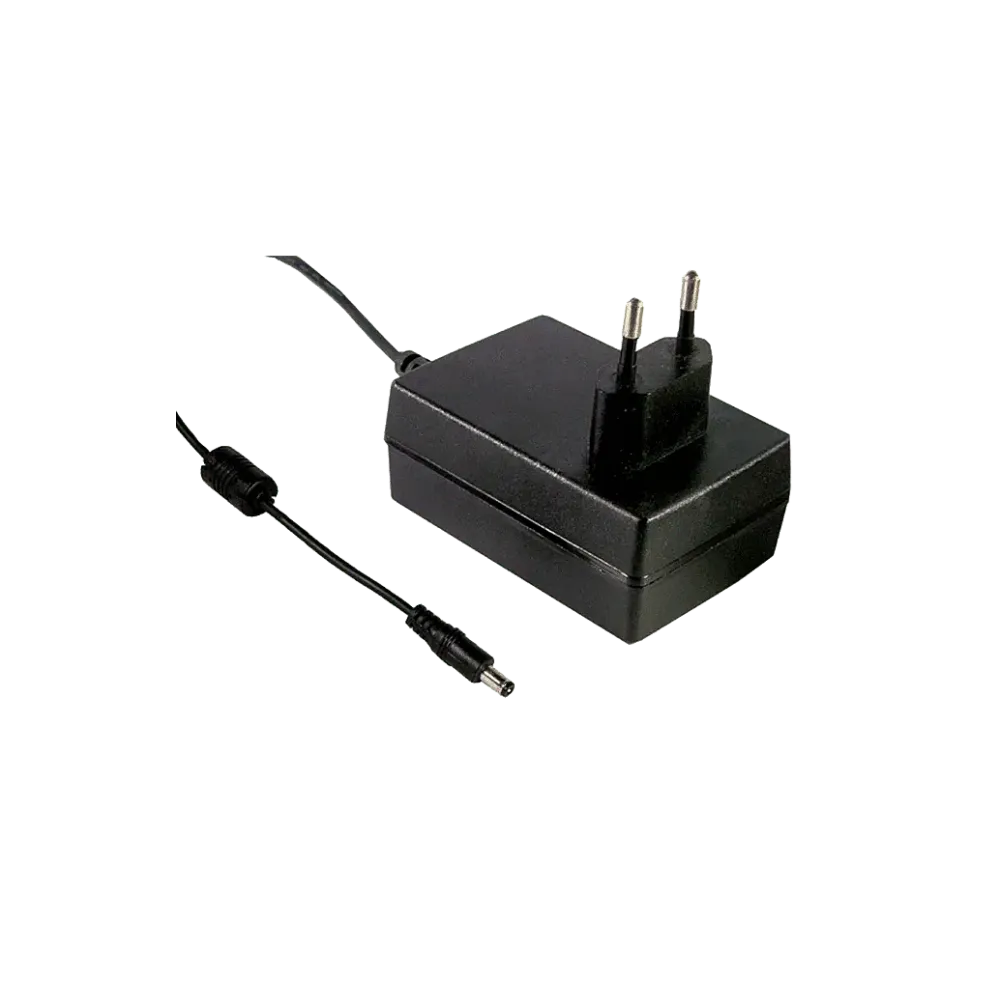

GSM25E12-P1J is a reliable plug-in power supply with European mains plug and medical approvals.
Technical data
- Input voltage 80 to 264Vac, 2-pin Euro mains plug
- DC output with round plug 2.1 x 5.5 x 11mm
- Medical approval 2xMOPP level for patient contact
- Complies with the home healthcare standard EN60601-1-11
- Leakage current <50μA
- Energy efficiency level VI (except 5 to 9V with level V)
- No load power consumption <0.1W
- Protection class II Device without earth connection
- Ambient temperature up to 60°C, derating from 40°C
- Dimensions 79 x 54 x 33mm (L x W x H)
Product specifications
| Power | 25 W |
| Output voltage (VDC) | 12 V |
| Efficiency level | VI |
| Application | Home Healthcare, Medical |
| DC plug | 2.1×5.5 x 11 mm |
