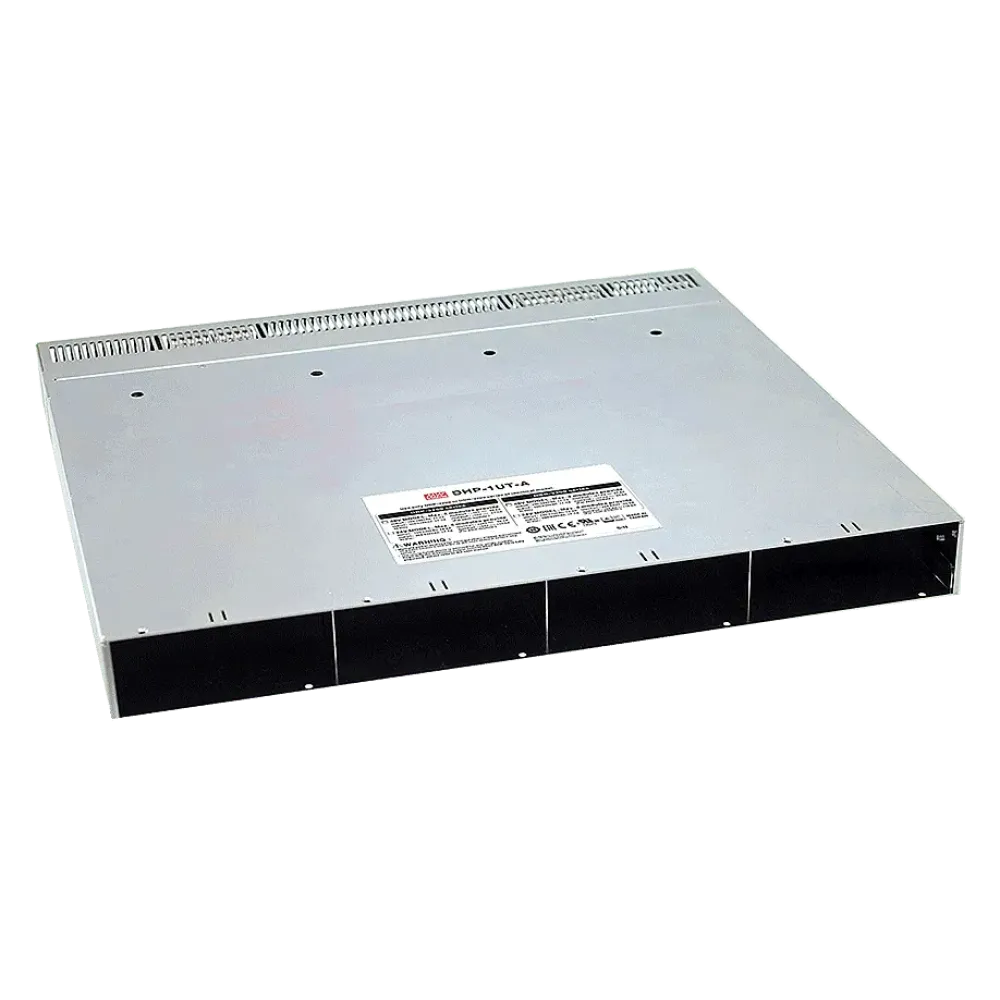

19″ Rack shelf for NCP-3200-380

DHP-1UT-BHV is a rack system for the installation of up to 4 power supply units of type NCP-3200-380. Installed in the DHP-1UT-B rack, up to 4 NCP-3200 units can be operated in parallel per rack. This means that 12800W of power can be achieved per rack. Thanks to the current sharing function, it is possible to connect up to 10 rack shelves together to achieve a total output of 128kW. For maximum operational reliability, the power supply units in the rack can be set up as an N+1 system. If a single power supply fails, the defective power supply unit can be replaced during operation without having to switch off the system.

High power system solutions

Applications

• Industrial automation
• Distributed Power
• Telecom
• Redundant power supplies
• DC UPS or emergency backup system
• Charging station for EV
• Water treatment
• Electrolysis

Technical data

• 1U rack shelf for the NCP-3200 power supply units
• Fully equipped up to 12800W power
• N+1 operation possible by changing the power supply unit during operation (hot swap)
• CANBus and PMBus interface
