3200W Power supply 380V/8.4A, for rack mounting, CAN bus

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

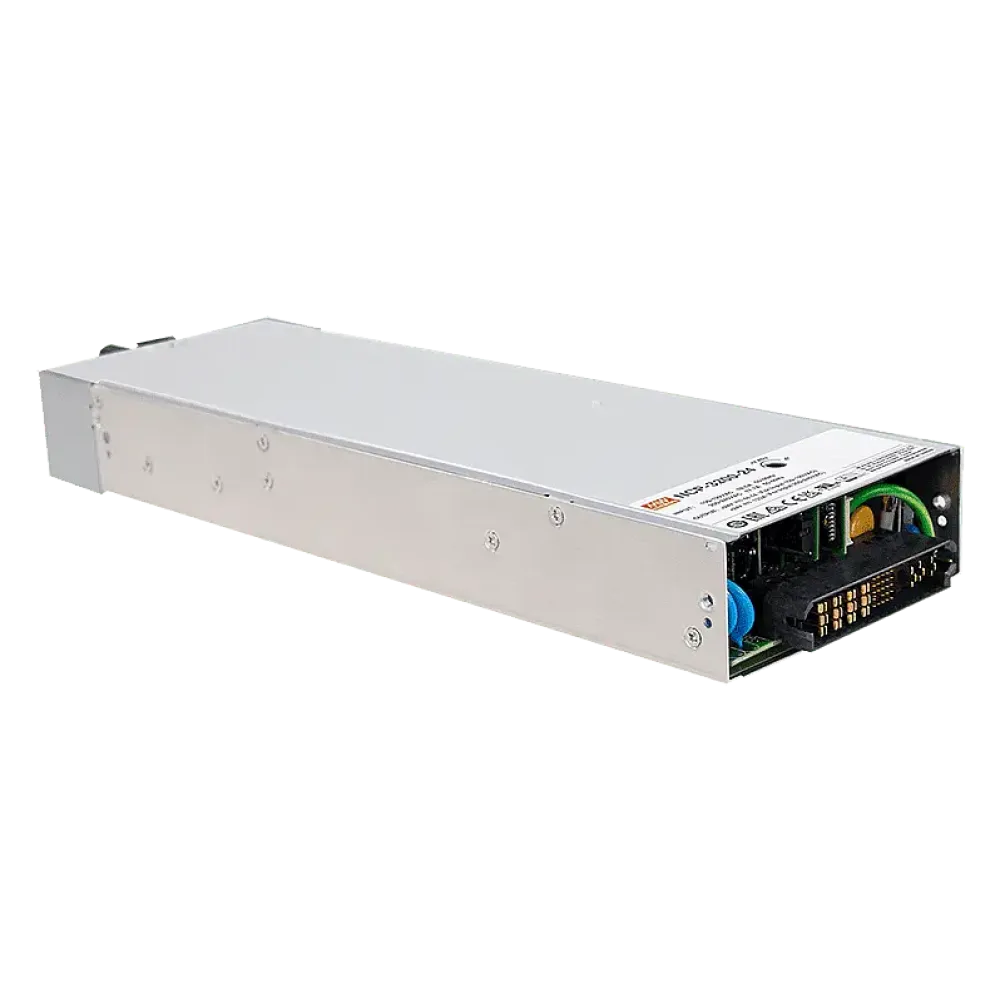

NCP-3200-380CAN is a 3.2kW front-end power supply unit for rack installation. Installed in the DHP-1UT-BHV rack, up to 4 NCP-3200-380CAN units can be operated in parallel per rack. Furthermore, up to 10 racks can be connected in parallel, allowing a total output of 128kW. With the built-in hot swap function, redundant operation can also be implemented without any problems. Version with CAN bus interface

High power system solutions

Technical data

Input voltage 90 to 264Vac
Efficiency 94.5%
with active PFC
For rack mounting in a rack DHP-1UT-BHV
CAN bus integrated
Hot swap capable
Active current sharing up to 12.8kW per rack, up to 128kW with 10 racks
DC OK signal and overtemperature alarm signal (OTP)
Air cooling with integrated controlled DC fan
UL/EN/IEC 62368-1 certified
Operating temperature range from -40°C to +70°C
Dimensions 325 x 107 x 41mm (L x W x H)

Product specifications

Power per rack	12800 W
Output voltage (VDC)	380 V
Additional functions	5VDC auxiliary output, 12VDC auxiliary output
Control signals	Programmable current, Programmable voltage, Remote ON/OFF, Remote Sense
Product	Rack power supply unit
Status signals	AC OK signal, DC OK signal, fan failure, temperature alarm
Power per power supply unit	3200 W
Control	Analog, CAN bus
