3216W Power supply unit and battery charger 48V/67A, for rack mounting

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

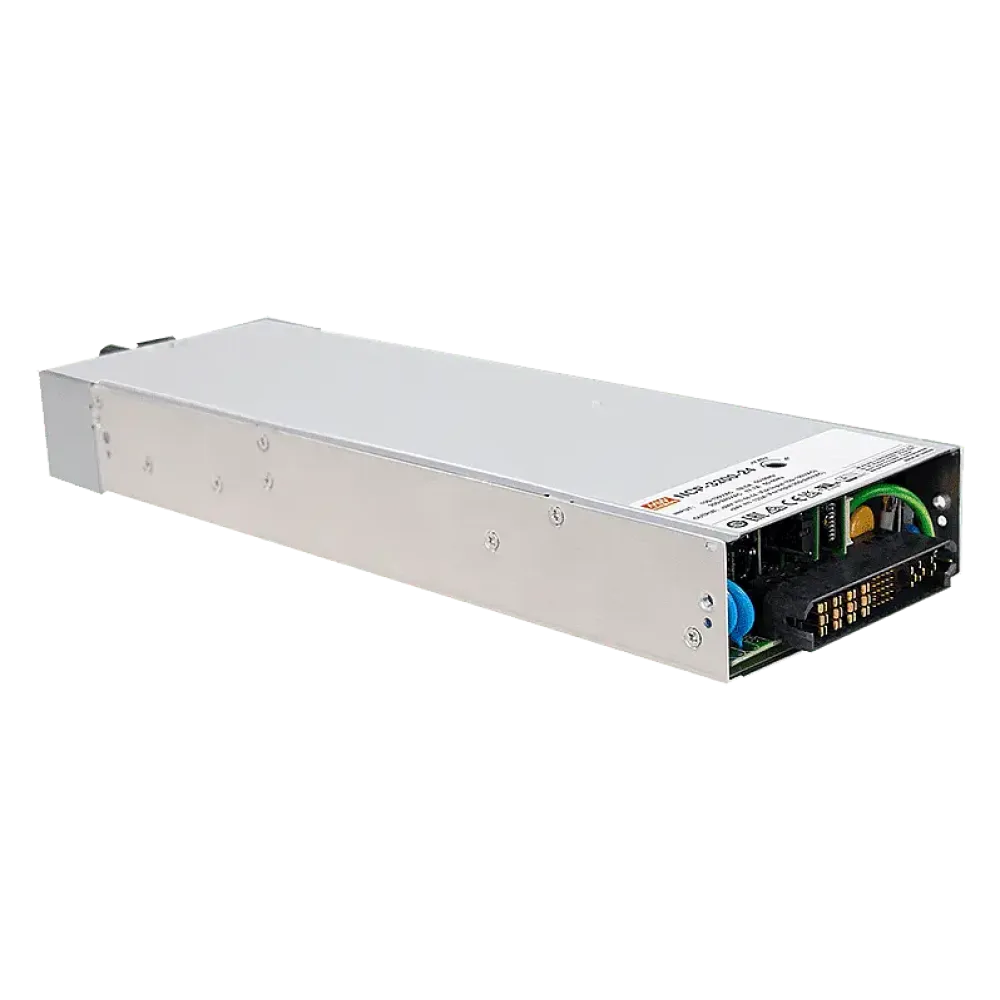

NCP-3200-48 is a 3.2kW front end power supply and battery charger for rack installation. Installed in the DHP-1UT-B rack, up to 4 NCP-3200-48 units can be operated in parallel per rack. Furthermore, up to 10 racks can be connected in parallel, allowing a total output of 128kW. With the built-in hot swap function, redundant operation can also be implemented without any problems.

High power system solutions

Technical data

Input voltage 90 to 264Vac
Can be used as a power supply unit or charger, adjustable via PMBus or SBP-001
2- and 3-stage charging curves integrated, programmable via SBP-001
Efficiency 94.5%
with active PFC
For rack mounting in a rack DHP-1UT-B
PMBus integrated
Hot swap capable
Active current sharing up to 12.8kW per rack, up to 128kW with 10 racks
DC OK signal and overtemperature alarm signal (OTP)

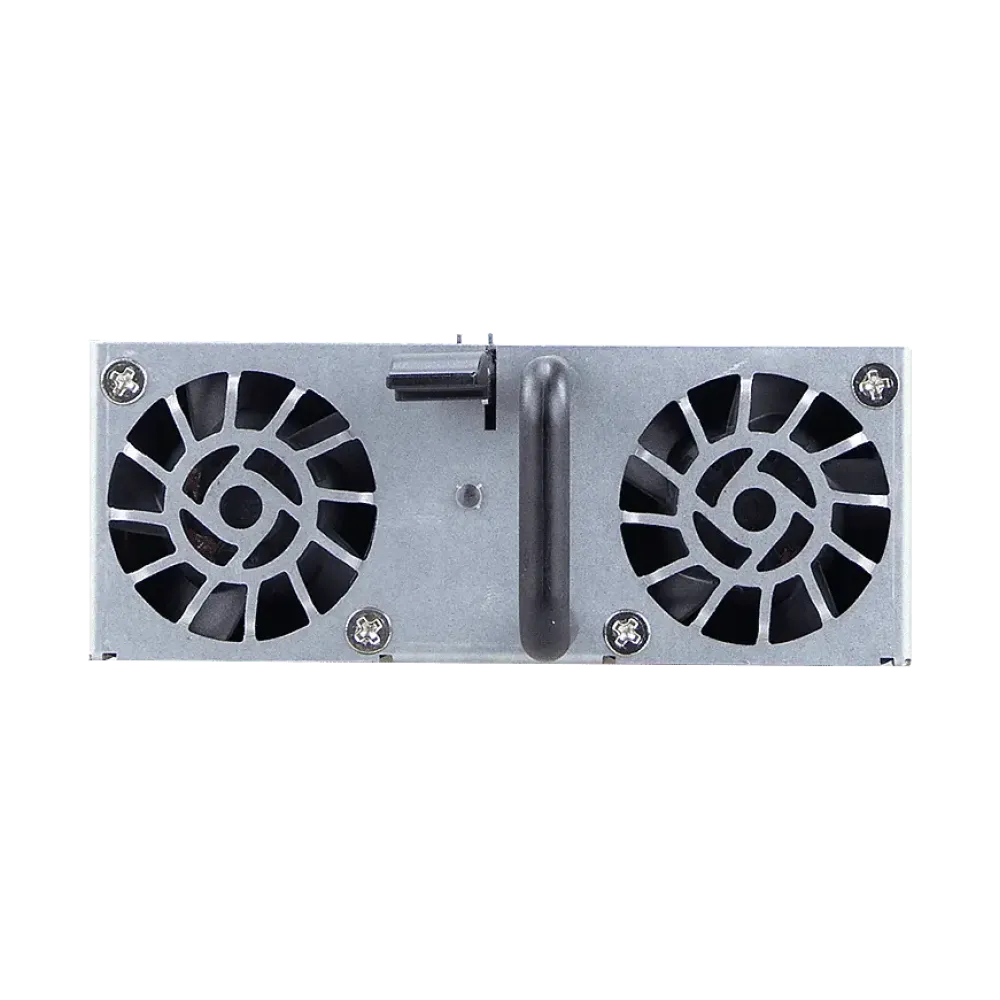

Air cooling with integrated controlled DC fan
UL/EN/IEC 62368-1 certified
Operating temperature range from -40°C to +70°C
Dimensions 325 x 107 x 41mm (L x W x H)

Product specifications

Output voltage (VDC)	48 V
Power per rack	12800 W
Control signals	Programmable current, Programmable voltage, Remote ON/OFF, Remote Sense
Product	Rack power supply unit
Status signals	AC OK signal, DC OK signal, fan failure, temperature alarm
Control	Analog, PMbus
Additional functions	5VDC auxiliary output, 12VDC auxiliary output, battery charger
Power per power supply unit	3216 W
