3216W Power supply unit 48V/67A, for rack mounting

Delivery at your place between May 20 and Jun 24 2025

Add to cart

About the product

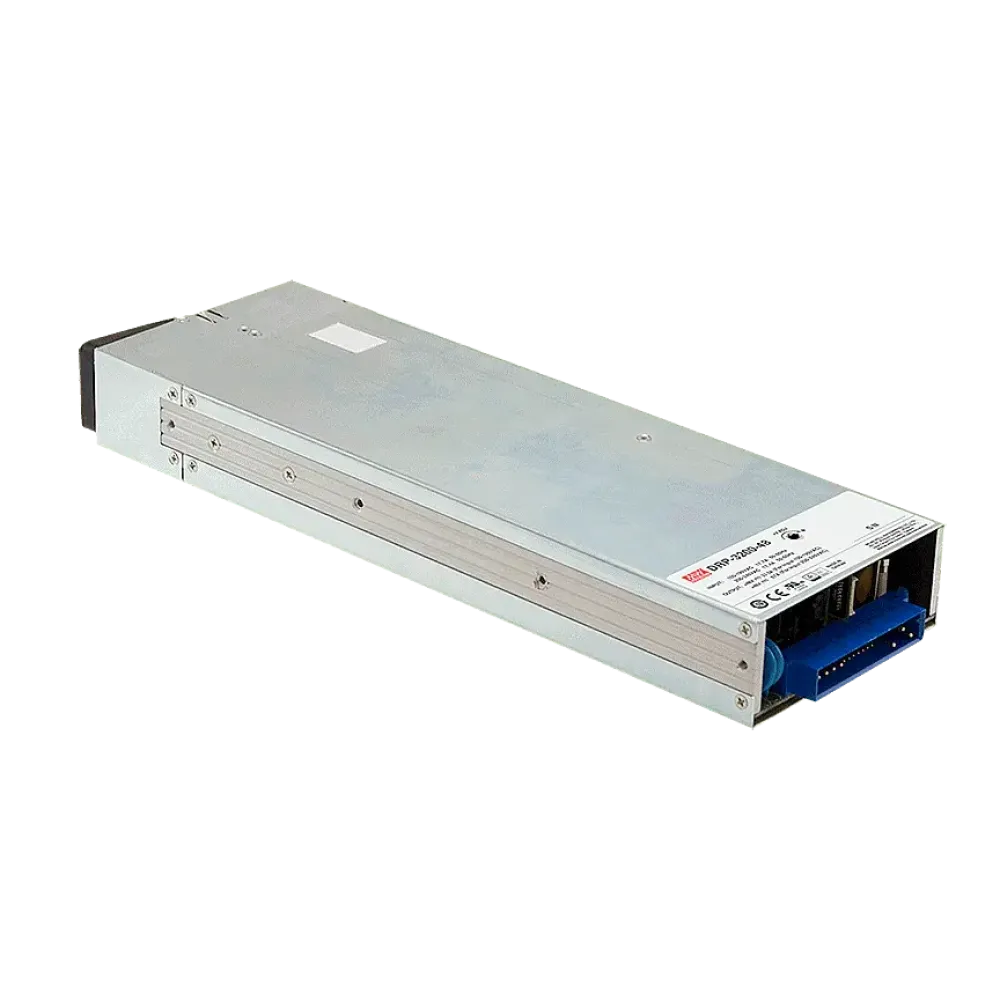

DRP-3200-48 is a 3.2kW front end power supply unit for rack installation. Installed in the DHP-1UT rack, up to 4 DRP-3200-48 units can be operated in parallel per rack. With the built-in hot swap function, redundant operation can also be implemented without any problems.

High power system solutions

Technical data

Input voltage 90 to 264Vac
Efficiency 94.5%
with active PFC
For rack mounting in a rack DHP-1Ut
Auxiliary circuits 5V/0.3A and 12V/0.8A
Output voltage and current programmable
PMBus integrated, optionally available with CAN bus
Hot swap capable
Active current sharing up to 12800W per rack
DC OK signal and overtemperature alarm signal (OTP)
Air cooling with integrated DC fan
UL/EN/IEC 62368-1 certified
Operating temperature range from -40°C to +70°C
Dimensions 325 x 107 x 41mm (L x W x H)

Product specifications

Output voltage (VDC)	48 V
Power per rack	12800 W
Additional functions	5VDC auxiliary output, 12VDC auxiliary output
Control signals	Programmable current, Programmable voltage, Remote ON/OFF, Remote Sense
Product	Rack power supply unit
Status signals	AC OK signal, DC OK signal, fan failure, temperature alarm
Control	Analog, PMbus
Power per power supply unit	3216 W
