1608W Power supply unit 24V/67A, for rack mounting

Delivery at your place between May 20 and Jun 24 2025

Add to cart

About the product

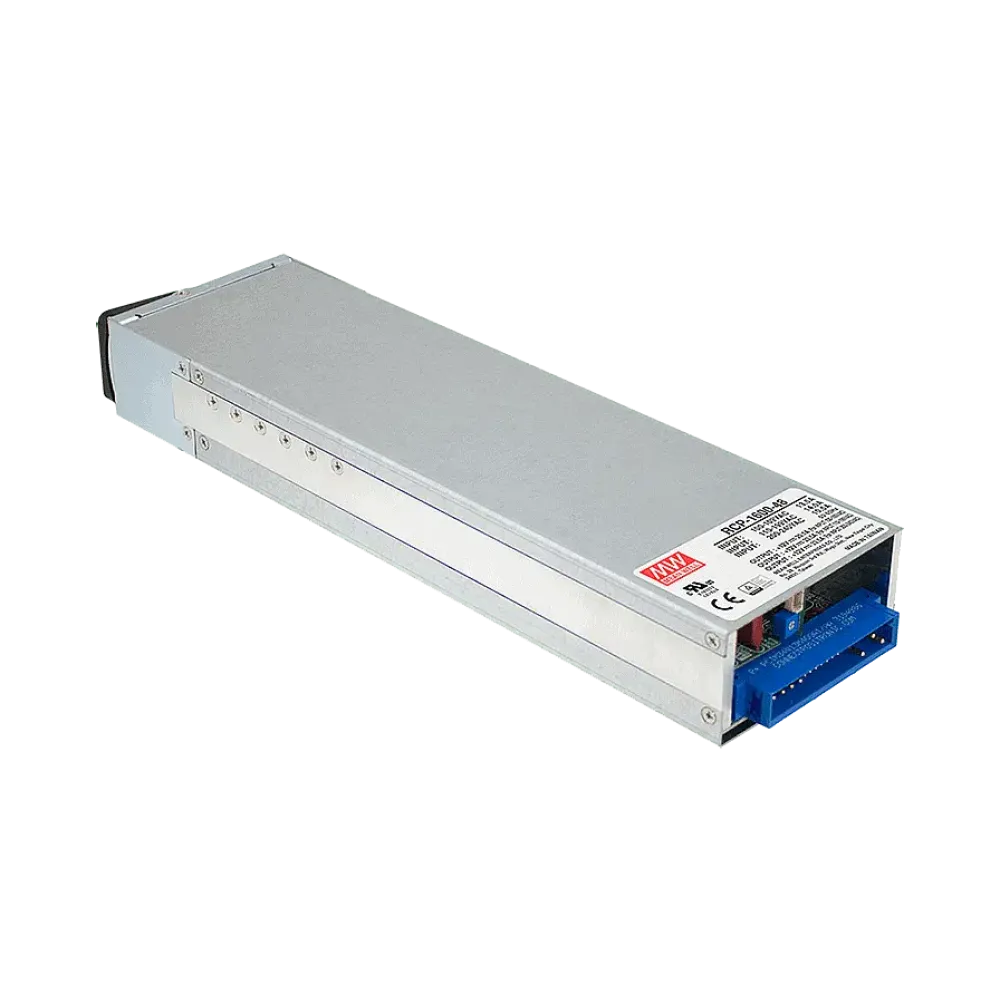

RCP-1600-24 is a 1600W front-end power supply unit for rack installation. Installed in the RHP-1UI rack, up to 5 RCP-1600-24 units can be operated in parallel per rack. With the built-in hot swap function, redundant operation can also be implemented without any problems.

High power system solutions

Technical data

Input voltage 90 to 264Vac
For rack mounting in a rack RHP-1U
Auxiliary circuits 5V/0.3A and 12V/0.8A
Output voltage and current programmable
PMBus integrated
Hot swap capable
Active current sharing up to 8000W in 1 rack
DC OK signal and overtemperature alarm signal (OTP)
Air cooling with integrated DC fan
Operating temperature range from -30°C to +70°C
Dimensions 300 x 85 x 41mm (L x W x H)

Product specifications

Output voltage (VDC)	24 V
Power per rack	8000 W
Additional functions	5VDC auxiliary output, 12VDC auxiliary output
Control signals	Programmable current, Programmable voltage, Remote ON/OFF, Remote Sense
Product	Rack power supply unit
Status signals	AC OK signal, DC OK signal, fan failure, temperature alarm
Control	Analog, PMbus
Power per power supply unit	1600 W
