1200W power supply unit 12V/100A, for rack mounting

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

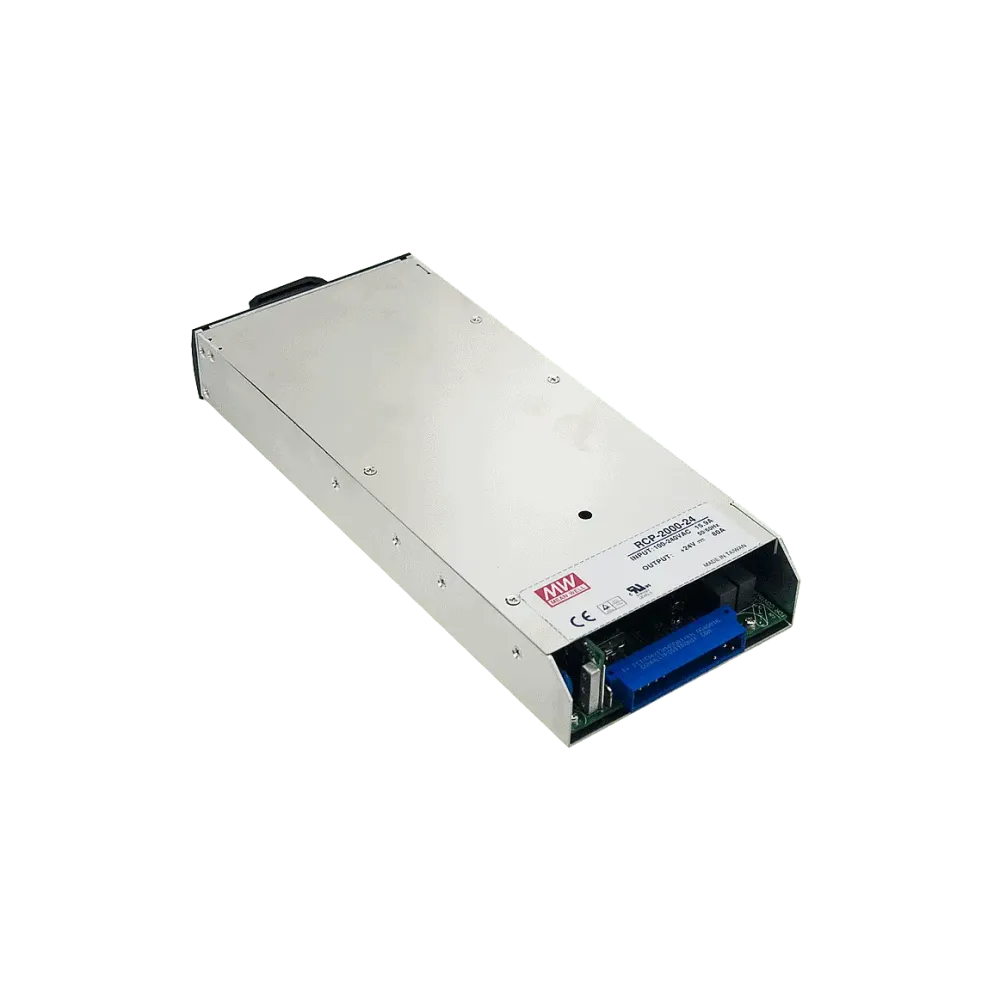

RCP-2000-12 is a 1200W front-end power supply unit for rack installation. Installed in the RKP-1U rack, up to 3 RCP-2000-12 units can be operated in parallel per rack. With the built-in hot swap function, redundant operation can also be implemented without any problems.

Technical data

Input voltage 90 to 264Vac
with active PFC
For rack mounting in a rack RKP-1U
Auxiliary circuits 5V/0.3A and 12V/0.8A
Output voltage and current programmable
PMBus integrated
Hot swap capable
Active current sharing up to 6000W in 1 rack
DC OK signal and overtemperature alarm signal (OTP)
Air cooling with integrated DC fan
Operating temperature range from -40°C to +70°C
Dimensions 295 x 127 x 41mm (L x W x H)

Product specifications

Output voltage (VDC)	12 V
Power per rack	3600 W
Additional functions	5VDC auxiliary output, 12VDC auxiliary output
Control signals	Programmable current, Programmable voltage, Remote ON/OFF, Remote Sense
Product	Rack power supply unit
Power per power supply unit	1200 W
Status signals	AC OK signal, DC OK signal, fan failure, temperature alarm
Control	Analog, PMbus
