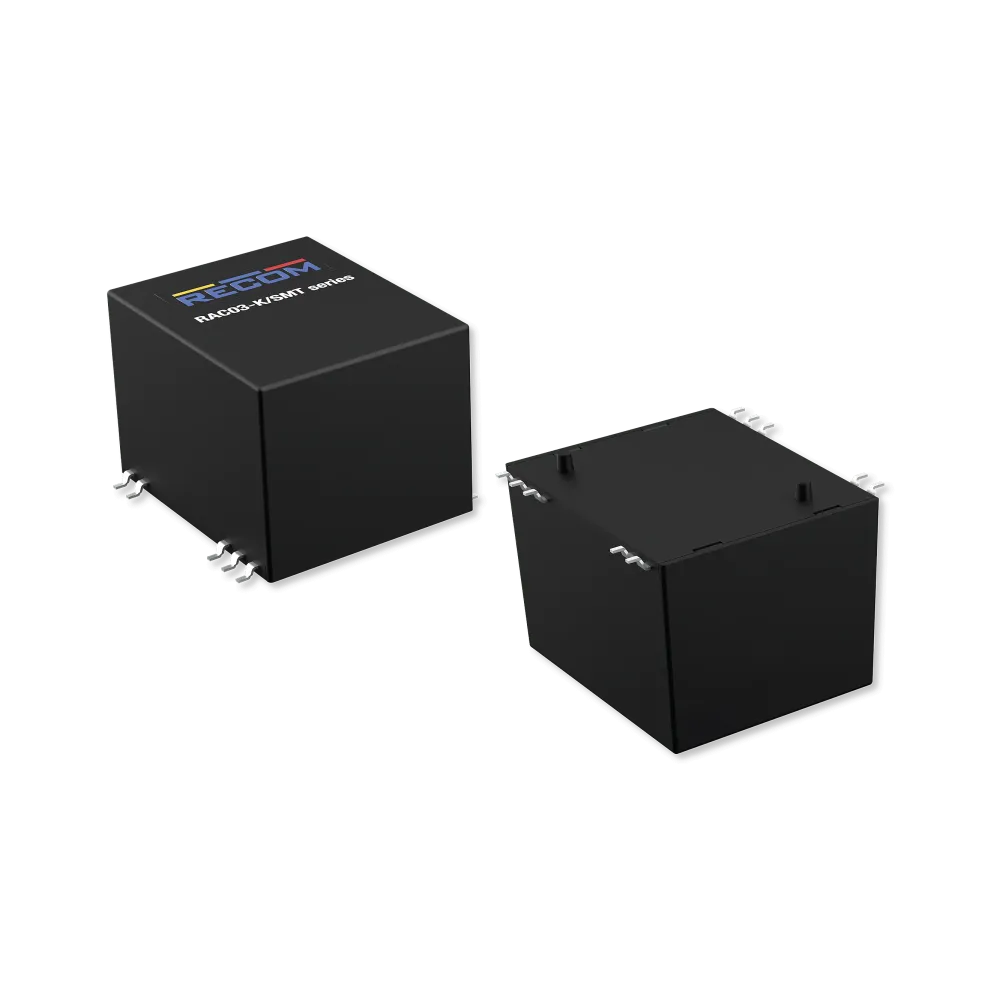

3W AC/DC power supply unit, PCB mounting, 5V/600mA, SMD

The compact 3-watt AC/DC power supplies of the RAC03-K/SMT series feature an optimized design tailored to JEDEC reflow soldering processes. With a footprint of only 1in², these devices facilitate automated production and ensure a shock and vibration resistant PCBA. The fully integrated modules eliminate the need for external components in floating load configurations and provide safety relevant performance at altitudes up to 6000m. These power supplies operate smoothly at temperatures from -40 to +80°C and provide continuous 3 watt output power from -25 to +60°C. They are designed for reliability. They comply with international standards such as EN/IEC/UL62368, EN60335 and IEC61558 and are an ideal solution for a wide range of applications, from IoT to industrial automation, for operating sensors, household and monitoring devices and as an auxiliary power supply for the home.

T&R with 50 pieces per roll

Technical data

• JEDEC reflow solderable construction
• Full load rated power from 85 to 265Vac
• Nominal operating temperature from -40 to +80°C
• 6000m operating altitude
• Shock and vibration stabilized
• No external components for potential-free loads
• 3-year guarantee
