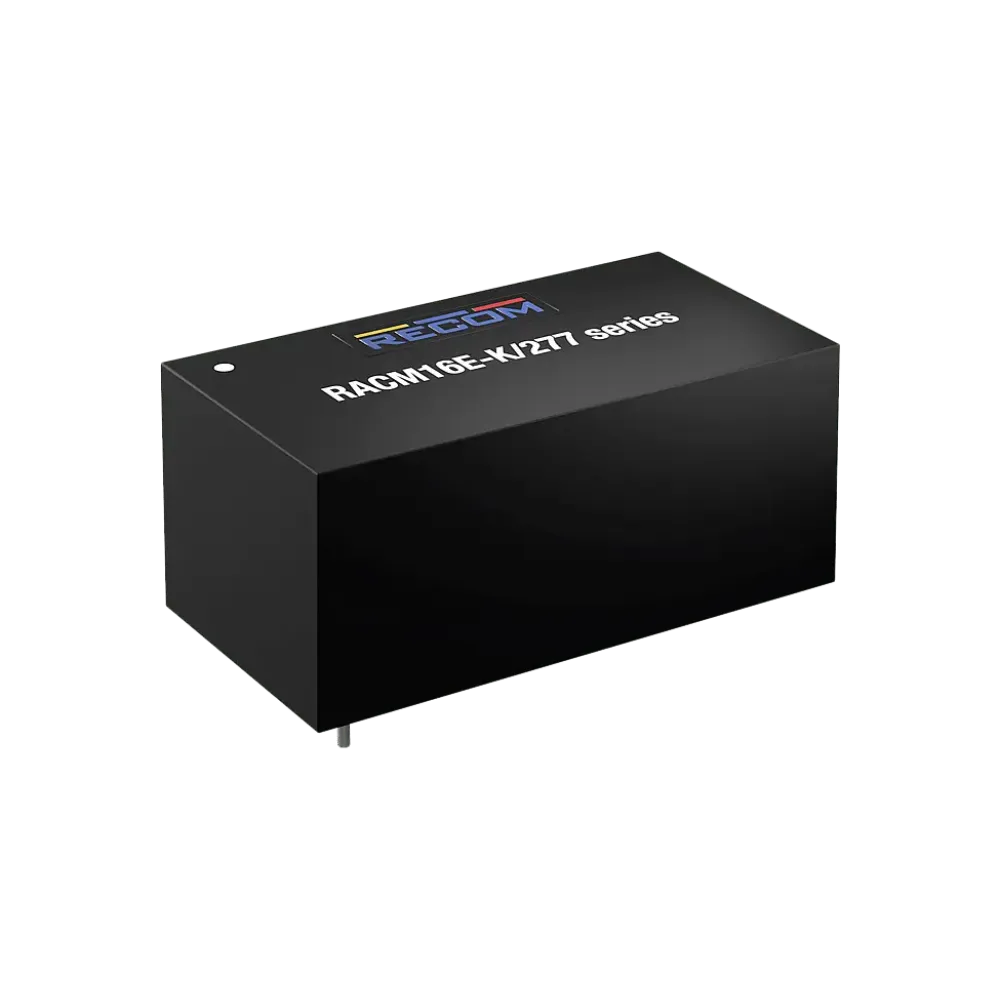

16W AC/DC power supply unit, PCB mounting, 24V/0.667A, ITE, Medical, Household

The RACM16E series is built on a 1 "x2" standard footprint with P12 pinning.

The overload protection with constant current limitation, suitable for operating non-linear loads. Designed for cost efficiency, these encapsulated modules deliver a full 16 W output power at temperatures of up to 65 °C and are suitable for extended rated input voltages of 100-277 VAC under OVCIII conditions.

With a certified temperature range of up to +85°C, they ensure reliable performance even in demanding environments.Certified with 2MOPP for altitudes up to 4000m, touch current limits for BF use in medical applications are met. Optimized for standby operation, the power consumption in idle mode is less than 100mW. The power supply units have international safety certifications in accordance with the industrial standards IEC62368 and IEC61558, the medical standards UL/IEC/EN60601 and the household standard EN60335.

Technical data

• Overload circuit with constant current limiting
• 100 to 277Vac Input range at full load up to 65°C
• OVC III certified up to 3000m altitude
• 2x MOPP certified up to an altitude of 4000m
