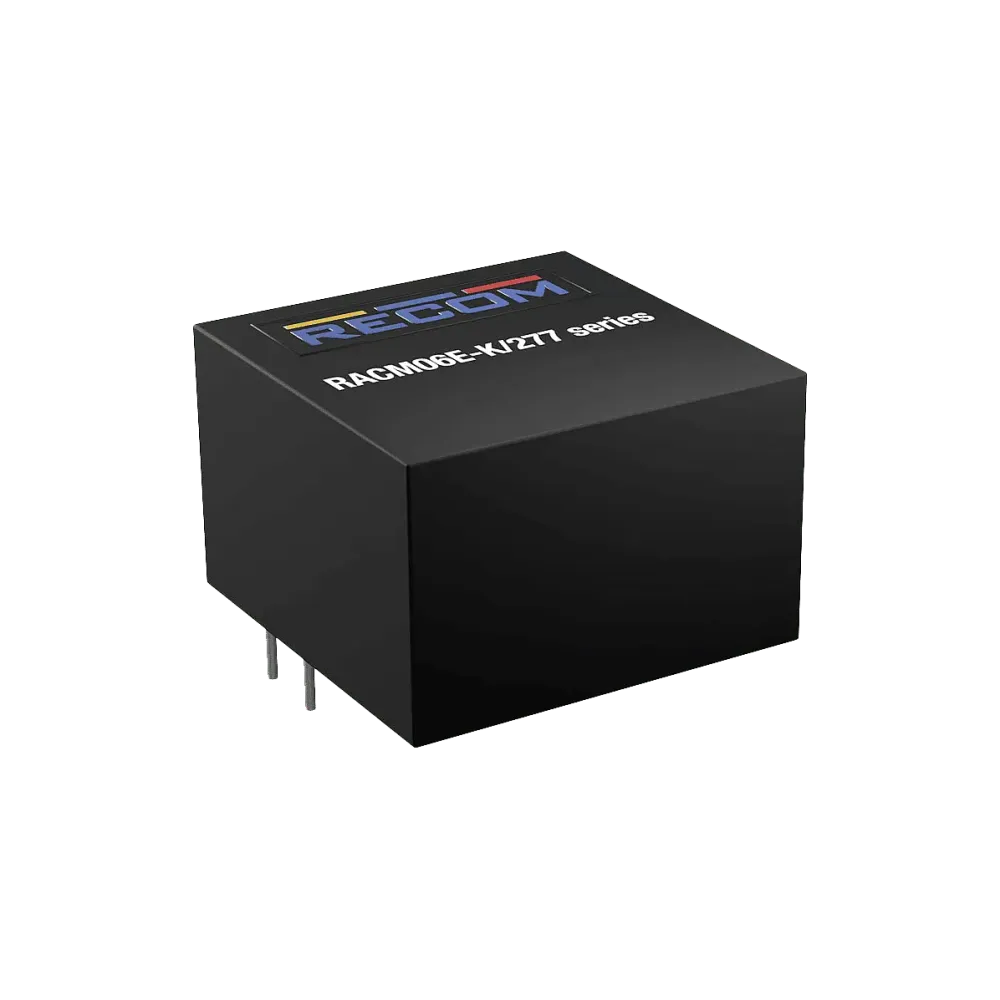

6W AC/DC power supply unit, PCB mounting, 24V/250mA, industrial, medical, household

The industry's most compact integrated 6 Watt AC/DC power supply, the RACM06E Series is based on a 1" x 1" footprint and fits into a low profile of only 17mm. Multiple international safety certifications to industrial, medical and domestic standards facilitate use in a wide range of applications for direct connection to worldwide mains input voltage conditions up to OVC III and without restriction for operating altitudes up to 5000m. Although a cost effective design, the thermally optimized design has a safety rating for full load output power from -40°C up to 60°C with some derating up to 90°C. The internal EMC filter supports EN55032 Class "B" compliance in floating output configurations without the need for additional filtering components.

Technical data

• 6 Watt output up to 60°C
• 1 "x1" footprint; 17mm low profile
• 100-277VAC Nominal operating range
• Operating temperatures from -40°C to +90°C
• OVC III classification up to 5000m altitude
• 2MOPP classification; BF ready
• EN55032 class "B" compliant with suspended load
• 3-year guarantee
